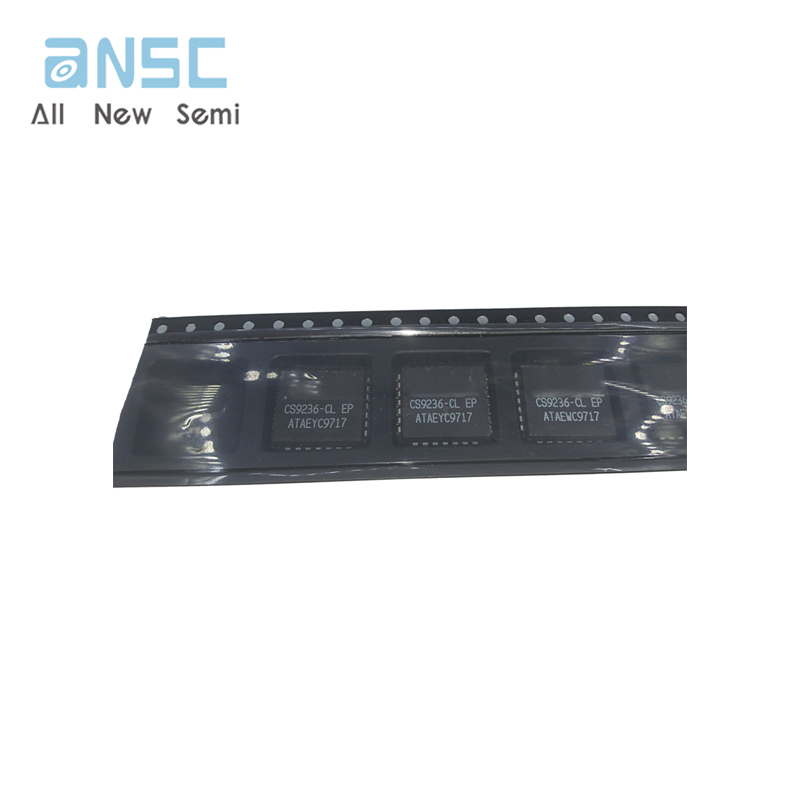

Hot sale Original CS9236-CL Consumer Circuits Tone/Music Synthesizer, CMOS, PQCC28, PLASTIC, LCC-28
Manufacturer Product Number
CS9236-CL
Description
CS9236-CL Consumer Circuits Tone/Music Synthesizer, CMOS, PQCC28, PLASTIC, LCC-28
Package Condition
Tape & Reel (TR)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

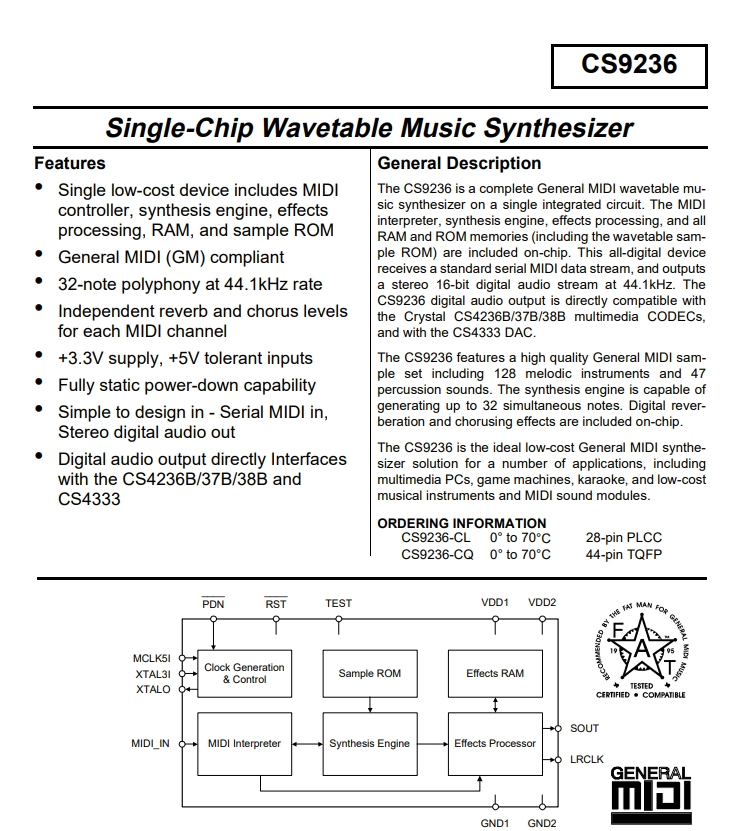

General Description The CS9236 is a complete General MIDI wavetable music synthesizer on a single integrated circuit. The MIDI interpreter, synthesis engine, effects processing, and all RAM and ROM memories (including the wavetable sample ROM) are included on-chip. This all-digital device receives a standard serial MIDI data stream, and outputs a stereo 16-bit digital audio stream at 44.1kHz. The CS9236 digital audio output is directly compatible with the Crystal CS4236B/37B/38B multimedia CODECs, and with the CS4333 DAC. Features • Single low-cost device includes MIDI controller, synthesis engine, effects processing, RAM, and sample ROM • General MIDI (GM) compliant • 32-note polyphony at 44.1kHz rate • Independent reverb and chorus levels for each MIDI channel • +3.3V supply, +5V tolerant inputs • Fully static power-down capability • Simple to design in - Serial MIDI in, Stereo digital audio out • Digital audio output directly Interfaces with the CS4236B/37B/38B and CS4333 |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- CS9236-CL |
| Ihs Manufacturer | Original |
| Part Package Code | QLCC |
| Package Description | QCCJ, LDCC28,.5SQ |
| Pin Count | 28 |
| Application | MULTIMEDIA PC; GAME MACHINES; KARAOKE; MUSICAL INSTRUMENTS |
| Consumer IC Type | TONE/MUSIC SYNTHESIZER |
| Length | 11.505 mm |
| Number of Functions | 1 |
| Number of Terminals | 28 |
| On Chip Memory Type | ROM; RAM |
| Operating Temperature-Max | 70 °C |
| Operating Temperature-Min | / |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | QCCJ |
| Package Equivalence Code | LDCC28,.5SQ |
| Package Shape | SQUARE |
| Package Style | CHIP CARRIER |
| Qualification Status | Not Qualified |
| Seated Height-Max | 4.62 mm |
| Supply Current-Max | 150 mA |
| Supply Voltage-Max (Vsup) | 3.6 V |
| Supply Voltage-Min (Vsup) | 3 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | J BEND |
| Terminal Pitch | 1.27 mm |
| Terminal Position | QUAD |
| Width | 11.505 mm |
