Hot sale Original UCC283TD-5 IC REG LINEAR 5V 3A TO263 Linear Voltage Regulator IC Positive Fixed 1 Output
Manufacturer Product Number
UCC283TD-5
Description
UCC283TD-5 IC REG LINEAR 5V 3A TO263 Linear Voltage Regulator IC Positive Fixed 1 Output 3A TO-263 (DDPAK-3)
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Description The SLD10 series of DC/Dc converters provide two independently regulated low-voltage outputs from a single 3.3V or 5V input. Each output can provide up to 6A of output current and has an independent feedback loop and an independent trim function. These non-isolated point-of-load converters are through hole mounted. High efficiency, low space requirements, and flexible loading characteristics make these converters ideal multivoltage sources for powering ASICs. Features • Two independently regulated outputs • Efficiency in excess of 90 • 10A of combined output current at 65°C and 200LFM • Flexible output load distribution • Output overcurrent protection • Remote ON/OFF • Output voltage trim adjust for each output • Straight and right angle pins configurations |
Product Description
|
Type |
Description |
|---|---|
| ANSC PART# | ANSC- UCC283TD-5 |
|
Category |
Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators |
|
Mfr |
/ |
|
Series |
- |
|
Packaging |
Tube |
|
Part Status |
Obsolete |
|
Output Configuration |
Positive |
|
Output Type |
Fixed |
|
Number of Regulators |
1 |
|
Voltage - Input (Max) |
9V |
|
Voltage - Output (Min/Fixed) |
5V |
|
Voltage - Output (Max) |
- |
|
Voltage Dropout (Max) |
0.6V @ 3A |
|
Current - Output |
3A |
|
Current - Quiescent (Iq) |
650 µA |
|
PSRR |
- |
|
Control Features |
- |
|
Protection Features |
Over Current, Over Temperature, Reverse Polarity, Short Circuit, Under Voltage Lockout (UVLO) |
|
Operating Temperature |
-40°C ~ 85°C (TA) |
|
Mounting Type |
Surface Mount |
|
Package / Case |
TO-263-4, D2PAK (3 Leads + Tab), TO-263AA |
|
Supplier Device Package |
TO-263 (DDPAK-3) |
|
Base Product Number |
UCC283 |

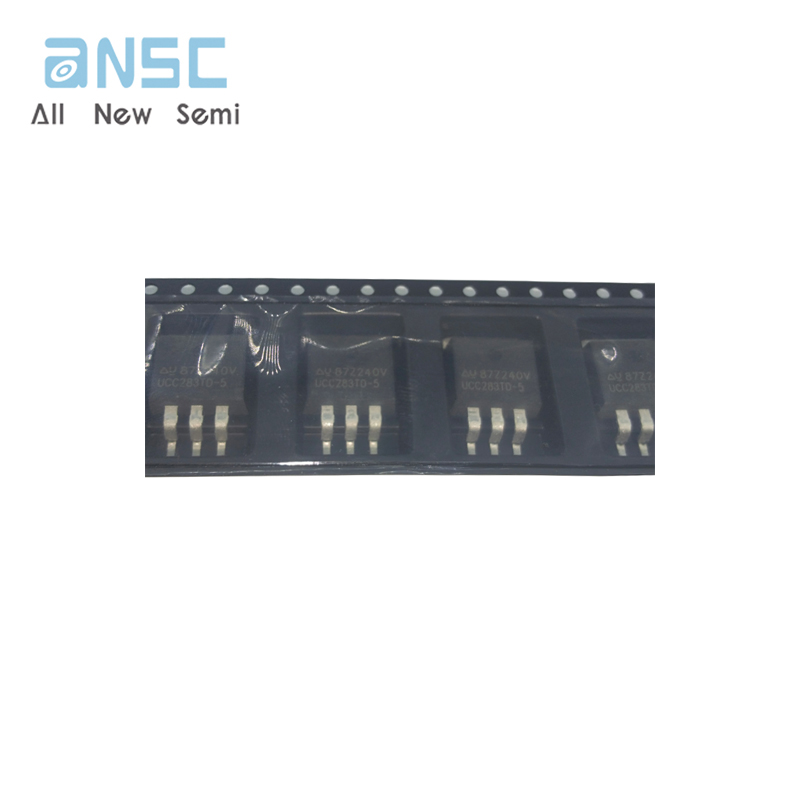

Actual image of the product

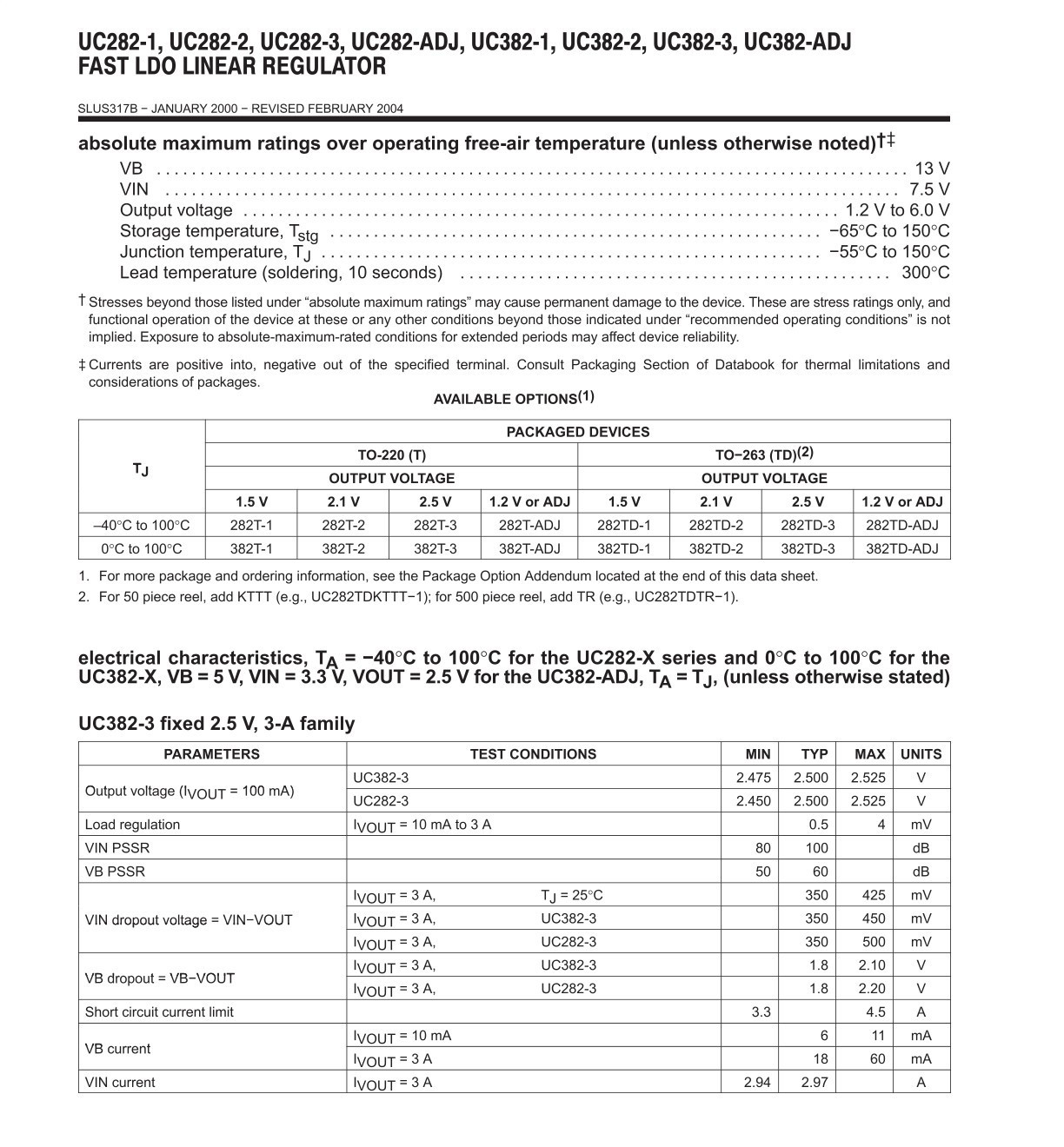

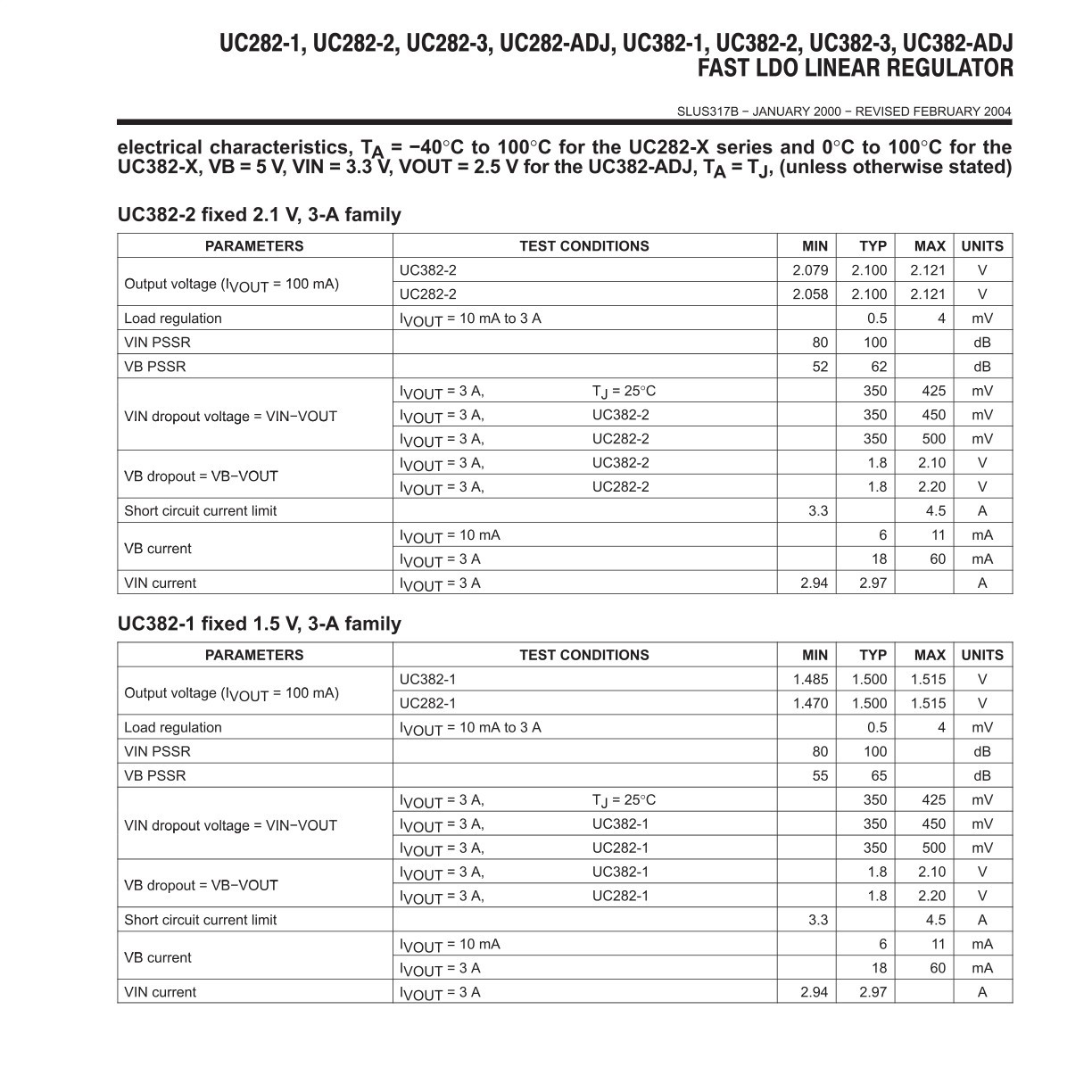

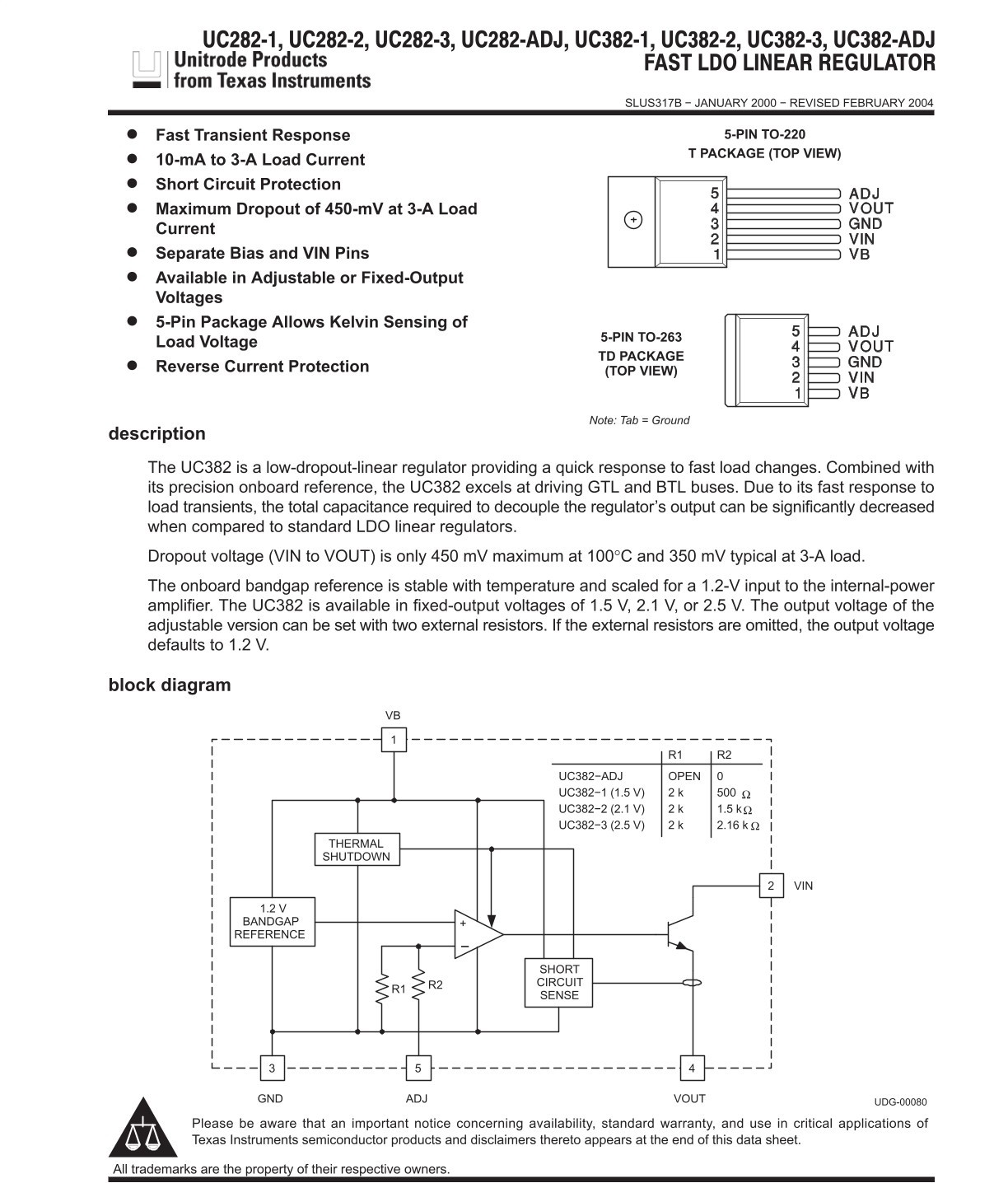

Product datasheet
