Hot sale original LMZ12003TZ-ADJ IC SWITCHING REGULATOR, 1000kHz SWITCHING FREQ-MAX, PSSO7 4.57 MM HEIGHT

Manufacturer Product Number

LMZ12003TZ-ADJ

Description

LMZ12003TZ-ADJ IC SWITCHING REGULATOR, 1000kHz SWITCHING FREQ-MAX, PSSO7, 10.16 X 13.77 MM, 4.57 MM HEIGHT, TO-PMOD, 7 PIN

Package Condition

Tape & Reel (TR)

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Description

Type#	Description
ANSC PART#	ANSC- LMZ12003TZ-ADJ
Part Package	SIP
Package Description	Hsop
Pin Count	7
Reach Compliance Code	Unknown
Additional Feature	Also Oprerates In Adjustable Mode From 0.8 To 6 V
Analog IC - Other Type	Switching Regulator
Control Mode	Voltage-Mode
Control Technique	Constant On Time
Input Voltage-Max	20 V
Input Voltage-Min	4.5 V
Input Voltage-Nom	12 V
JESD-30 Code	R-PSSO-G7
Length	10.16 Mm
Number of Functions	1
Number of Terminals	7
Operating Temperature-Max	125 °C
Operating Temperature-Min	-40 °C
Output Current-Max	3 A
Output Voltage-Max	6 V
Output Voltage-Min	0.8 V
Package Body Material	Plastic/Epoxy
Package Code	HSOP
Package Shape	Rectangular
Package Style	Small Outline, Heat Sink/Slug
Peak Reflow Temperature (Cel)	Not Specified
Qualification Status	Not Qualified
Seated Height-Max	4.82 Mm
Surface Mount	Yes
Switcher Configuration	Buck
Switching Frequency-Max	1000 Khz
Temperature Grade	Automotive
Terminal Form	Gull Wing
Terminal Pitch	1.27 Mm
Terminal Position	Single
Time@Peak Reflow Temperature-Max (s)	Not Specified
Width	9.85 Mm

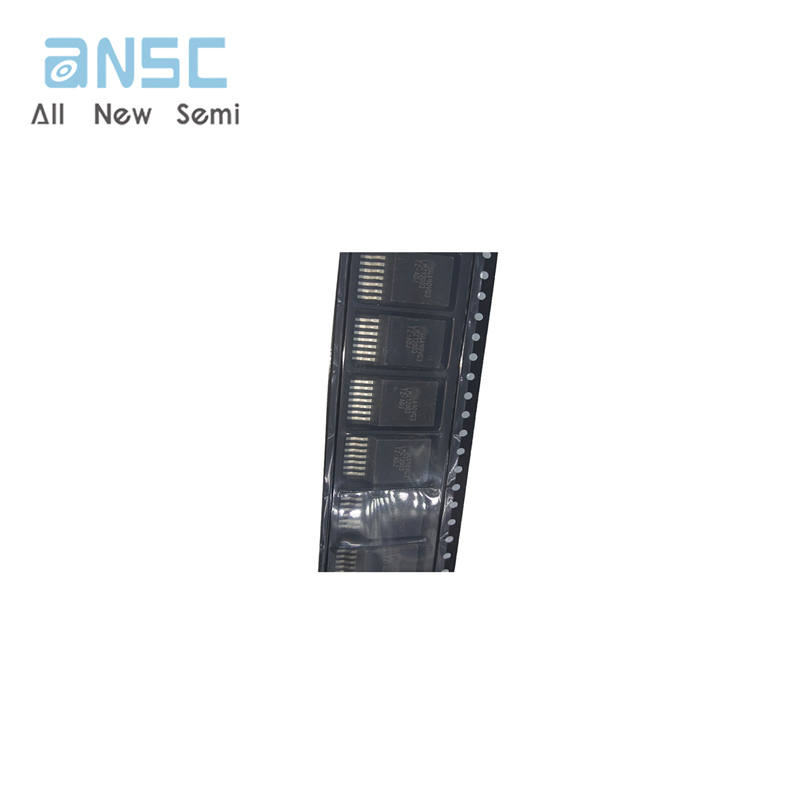

Actual image of the product

LMZ12003TZ-ADJ

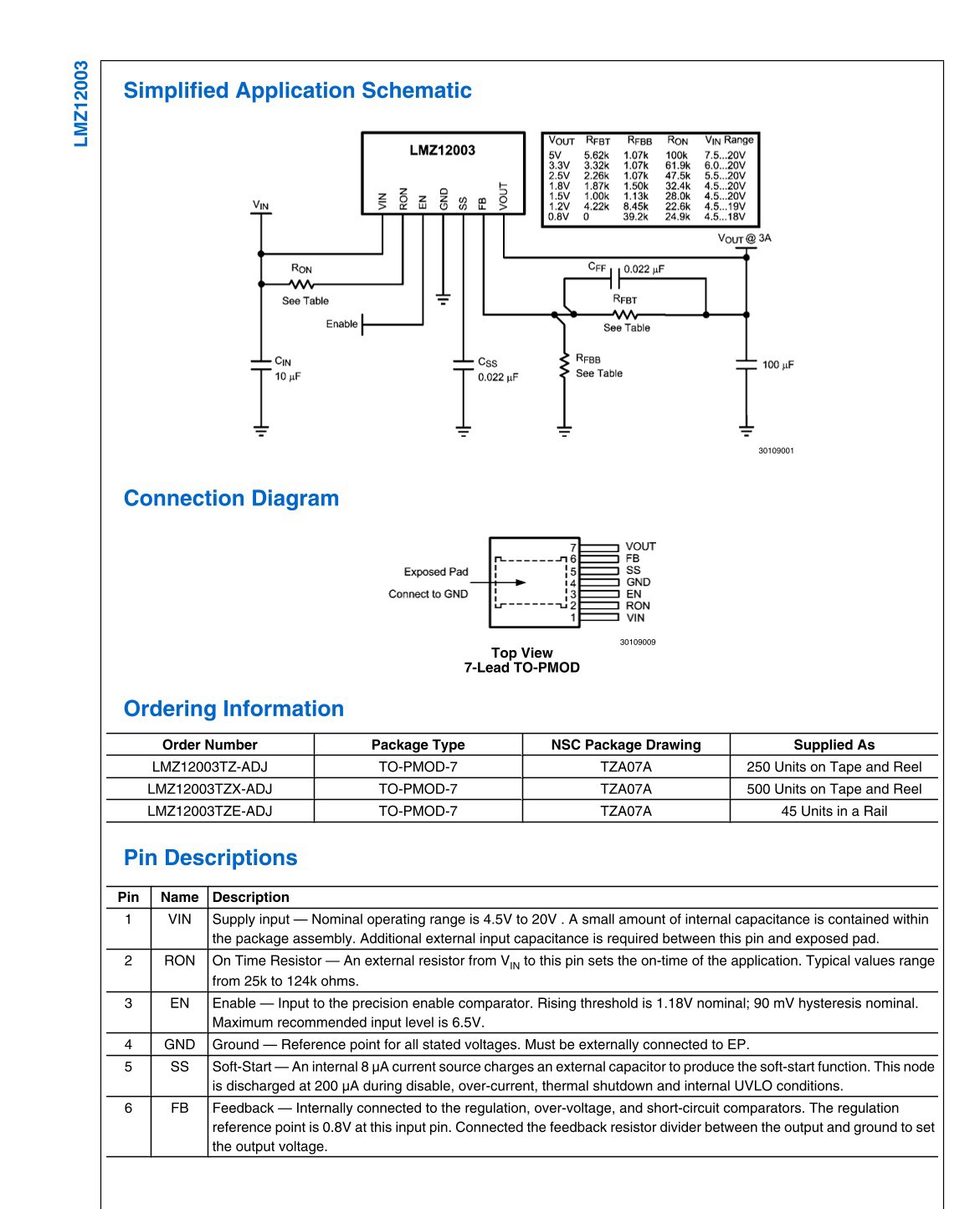

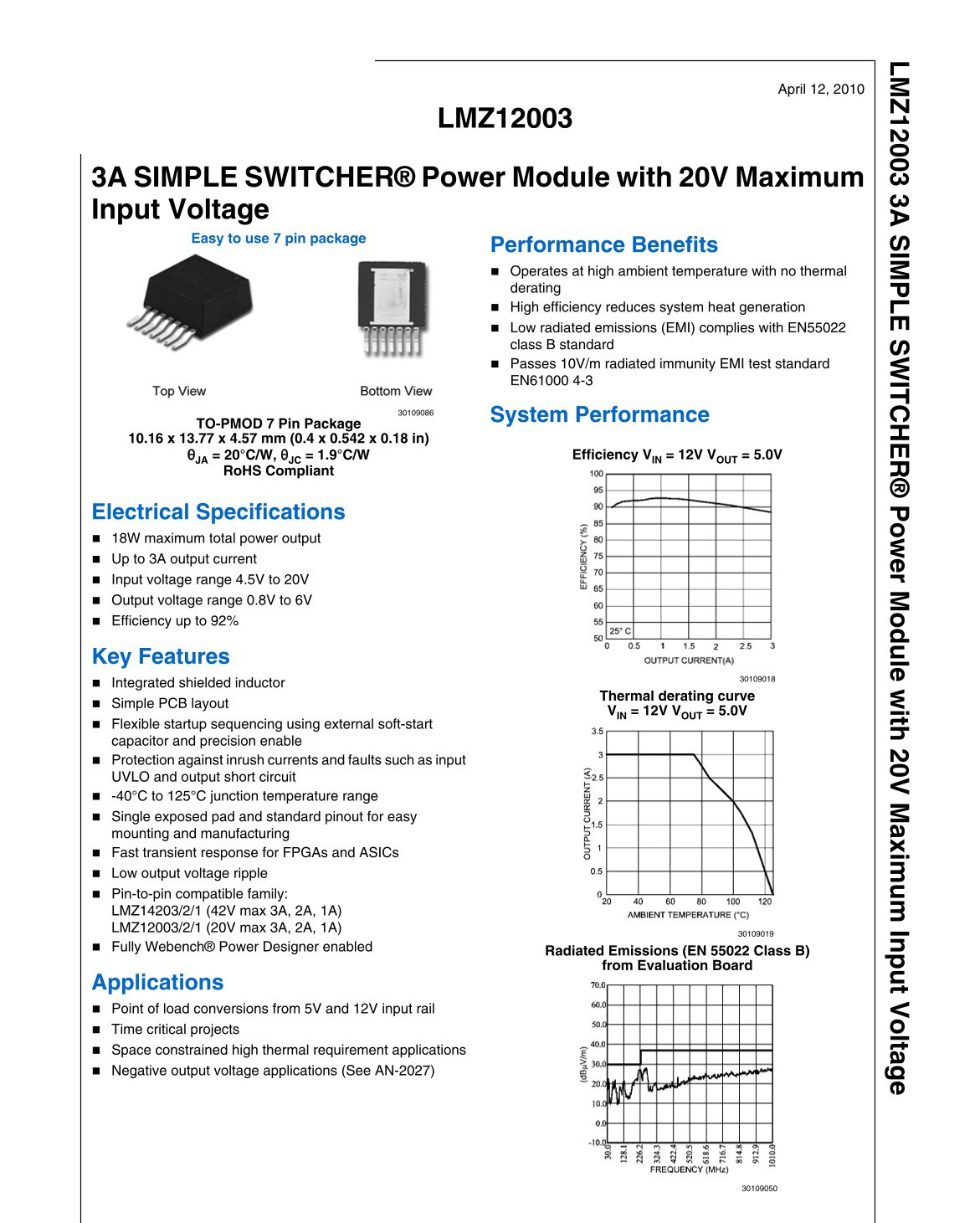

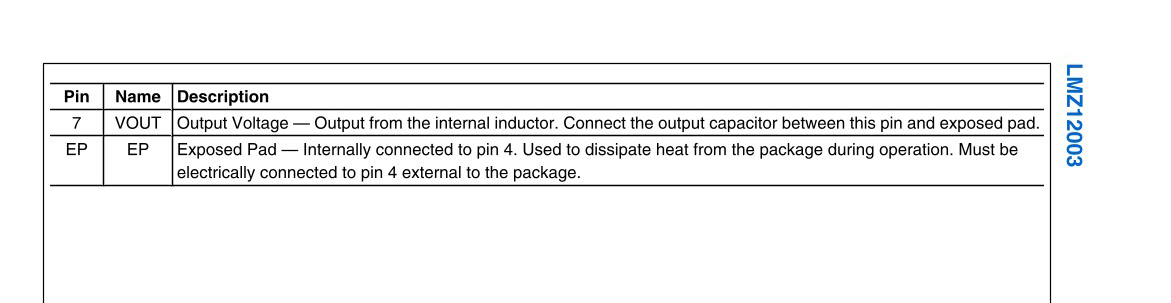

Product datasheet

For more information, please download
