Hot sale original AD5933YRSZ IC DDS 16.776MHZ 12BIT 16SSOP Direct Digital Synthesis IC 12 b 16.776 MHz Tuning 16-SSOP
Manufacturer Product Number
AD5933YRSZ
Description
AD5933YRSZ Direct Digital Synthesis IC 12 b 16.776 MHz Tuning 16-SSOP
Package Condition
Tape & Reel (TR)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

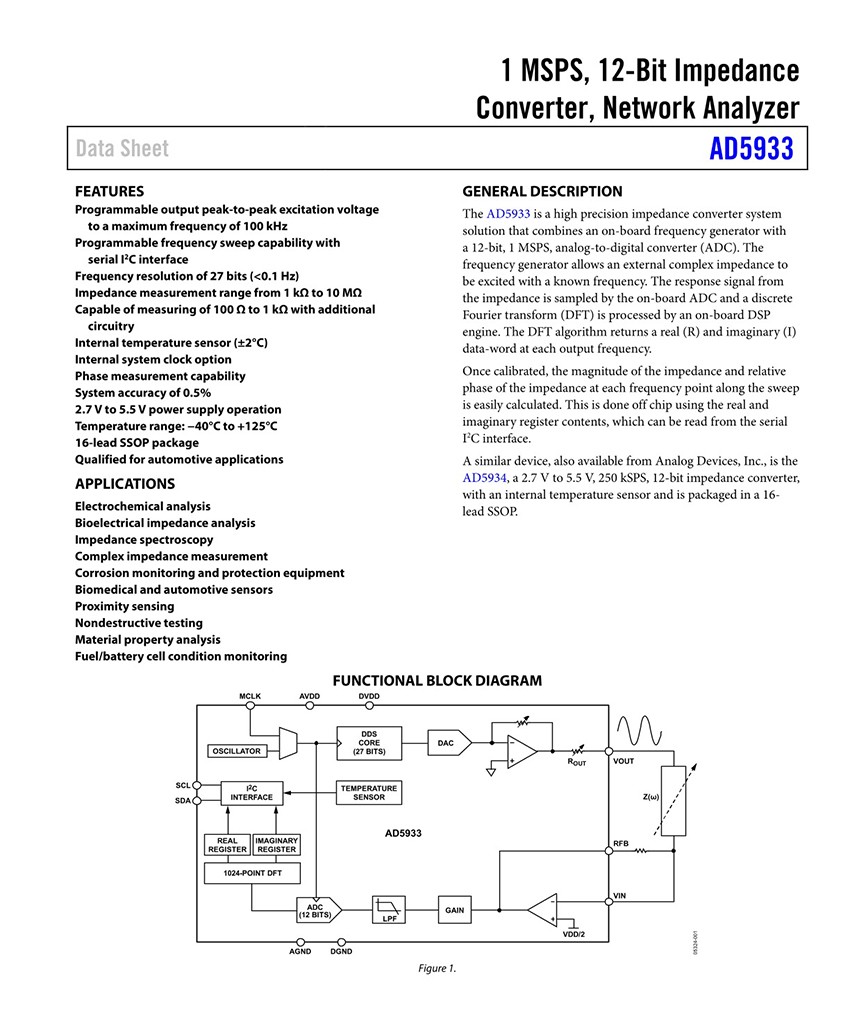

| GENERAL DESCRIPTION The AD5933 is a high precision impedance converter system solution that combines an on-board frequency generator with a 12-bit, 1 MSPS, analog-to-digital converter (ADC). The frequency generator allows an external complex impedance to be excited with a known frequency. The response signal from the impedance is sampled by the on-board ADC and a discrete Fourier transform (DFT) is processed by an on-board DSP engine. The DFT algorithm returns a real (R) and imaginary (I) data-word at each output frequency. FEATURES Programmable output peak-to-peak excitation voltage to a maximum frequency of 100 kHz Programmable frequency sweep capability with serial I2C interfaceFrequency resolution of 27 bits (<0.1 Hz) Impedance measurement range from 1 kΩ to 10 MΩ Capable of measuring of 100 Ω to 1 kΩ with additional circuitry Internal temperature sensor (±2°C) Internal system clock option Phase measurement capability System accuracy of 0.5% 2.7 V to 5.5 V power supply operation Temperature range: −40°C to +125°C 16-lead SSOP package Qualified for automotive applications APPLICATIONS Electrochemical analysis Bioelectrical impedance analysis Impedance spectroscopy Complex impedance measurement Corrosion monitoring and protection equipment Biomedical and automotive sensors Proximity sensing Nondestructive testing Material property analysis Fuel/battery cell condition monitoring |
Product Description
| Type | Description |
| ANSC PART# | ANSC - AD5933YRSZ |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Direct Digital Synthesis (DDS) | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Resolution (Bits) | 12 b |
| Master fclk | 16.776 MHz |
| Tuning Word Width (Bits) | - |
| Voltage - Supply | 2.7V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 16-SSOP |
| Base Product Number | AD5933 |
