Hot sale original 54F374DMQB F/FAST SERIES, 8-BIT DRIVER, TRUE OUTPUT, CDIP20

Manufacturer Product Number
54F374DMQB
Description

54F374DMQB F/FAST SERIES, 8-BIT DRIVER, TRUE OUTPUT, CDIP20

Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

OCTAL D-TYPE FLIP-FLOP WITH 3-STATE OUTPUTS

The MC54/74F374 is a high-speed, low-power octal D-type flip-flop featuring separate D-type inputs for each flip-flop and 3-state outputs for bus oriented applications. A buffered Clock (CP) and Output Enable (OE) are common to all flip-flops.

• Edge-triggered D-Type Inputs
• Buffered Positive Edge-triggered Clock
• 3-State Outputs for Bus-Oriented Applications
• ESD > 4000 Volts

Product Description

Type# Description
ANSC PART# ANSC - 54F374DMQB
Ihs Manufacturer Original
Part Package Code DIP
Package Description CERAMIC, DIP-20
Pin Count 20
Family F/FAST
JESD-30 Code R-GDIP-T20
Length 25.019 mm
Logic IC Type BUS DRIVER
Number of Bits 8
Number of Functions 1
Number of Ports 2
Number of Terminals 20
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Output Characteristics 3-STATE
Output Polarity TRUE
Package Body Material CERAMIC, GLASS-SEALED
Package DIP
Package Equivalence  DIP20,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Propagation Delay (tpd) 11 ns
Screening Level MIL-STD-883
Seated Height-Max 5.08 mm
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount NO
Technology TTL
Temperature Grade MILITARY
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Width 7.62 mm

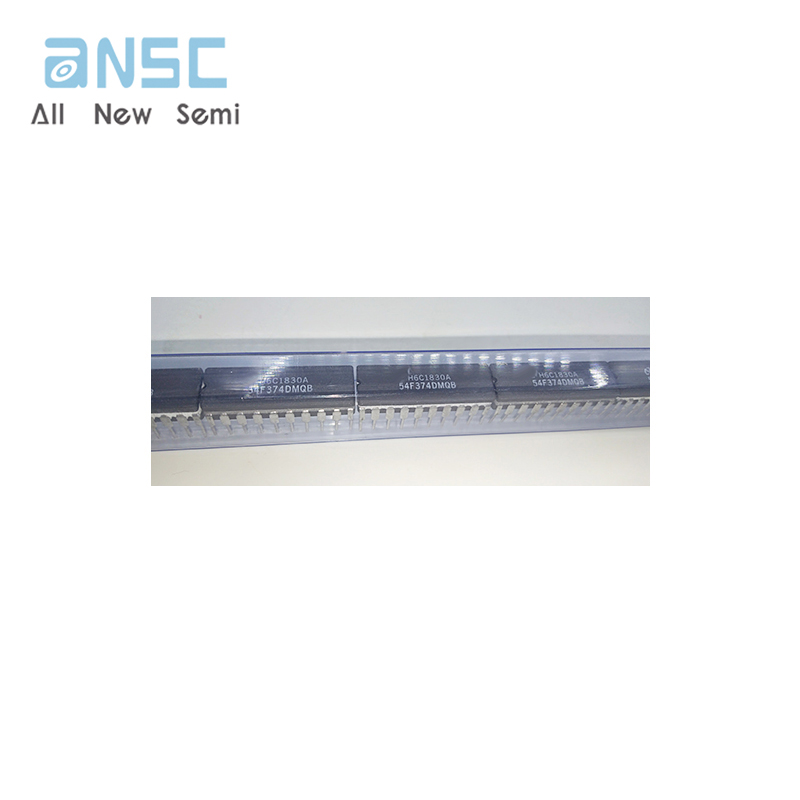

Product Photos

54F374DMQB

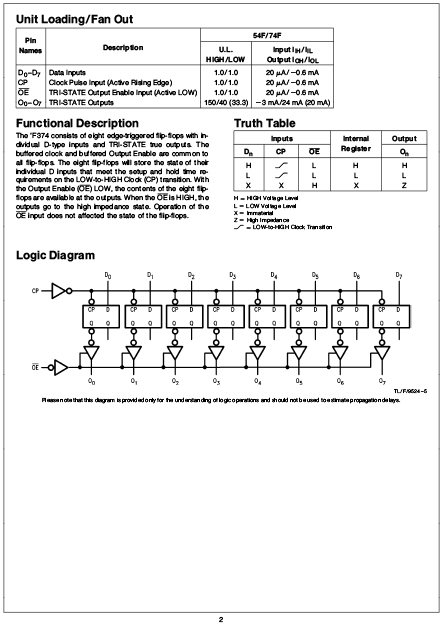

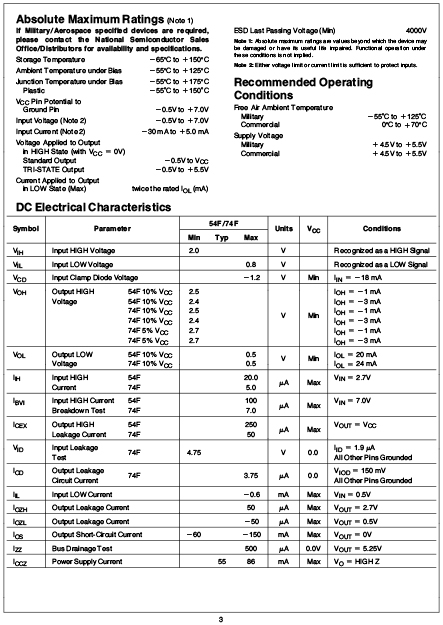

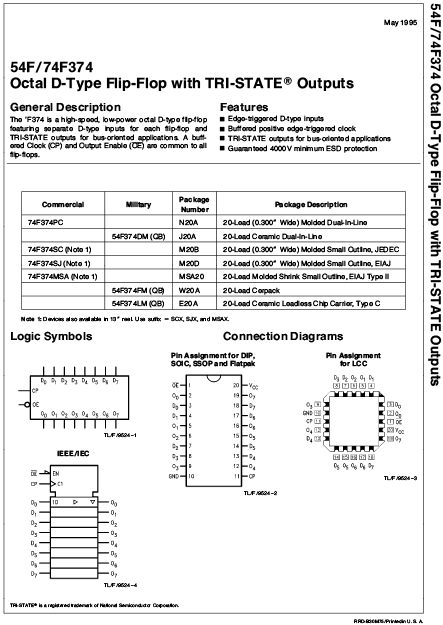

Product datasheet

For more information, please download




​
