Hot sale original ADM2486BRW Isolators RS422, RS485 Digital Isolator 2500Vrms 3 Channel 20Mbps 25kV/µs CMTI 16-SOIC

Manufacturer Product Number

ADM2486BRW

Description

ADM2486BRW Digital Isolators DG ISO 2.5KV 3CH RS422 16-SOIC

Package Condition

Tube

Datasheet

ADM2486BRW

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

GENERAL DESCRIPTION

The ADM2486 differential bus transceiver is an integrated, galvanically isolated component designed for bidirectional data

communication on multipoint bus transmission lines. It is designed for balanced transmission lines and complies with

ANSI EIA/TIA-485-A and ISO 8482: 1987(E).

FEATURES

Half-duplex, isolated RS-485 transceiver PROFIBUS®-compliant

ANSI EIA/TIA 485-A and ISO 8482: 1987(E) compliant 20 Mbps data rate 5 V or 3 V operation (VDD1)

High common-mode transient immunity: >25 kV/μs

Isolated DE status output Receiver open-circuit, fail-safe design

Thermal shutdown protection 50 nodes on bus

Safety and regulatory approvals

UL recognition—2500 Vrmsfor 1 minute per UL 1577

CSA Component Acceptance Notice #5A

VDE Certificate of Conformity

DIN EN 60747-5-2 (VDE 0884 Part 2): 2003-01

DIN EN 60950 (VDE 0805): 2001-12; EN 60950: 2000

VIORM= 560 V peak

Operating temperature range: −40°C to +85°C

Wide body, 16-lead SOIC package

APPLICATIONS

Isolated RS-485/RS-422 interfaces

PROFIBUS networks

Industrial field networks

Multipoint data transmission systems

Product Description

Type#	Description
ANSC PART#	ANSC- ADM2486BRW
Category	Isolators
Category	Digital Isolators
Mfr	Original
Series	iCoupler®
Packaging	Tube
Part Status	Obsolete
Technology	Magnetic Coupling
Type	RS422, RS485
Isolated Power	No
Number of Channels	3
Inputs - Side 1/Side 2	2/1
Channel Type	Bidirectional
Voltage - Isolation	2500Vrms
Common Mode Transient Immunity (Min)	25kV/µs
Data Rate	20Mbps
Propagation Delay tpLH / tpHL (Max)	55ns, 55ns
Pulse Width Distortion (Max)	5ns
Rise / Fall Time (Typ)	5ns, 5ns
Voltage - Supply	3V, 5V
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.295", 7.50mm Width)
Supplier Device Package	16-SOIC
Base Product Number	ADM2486

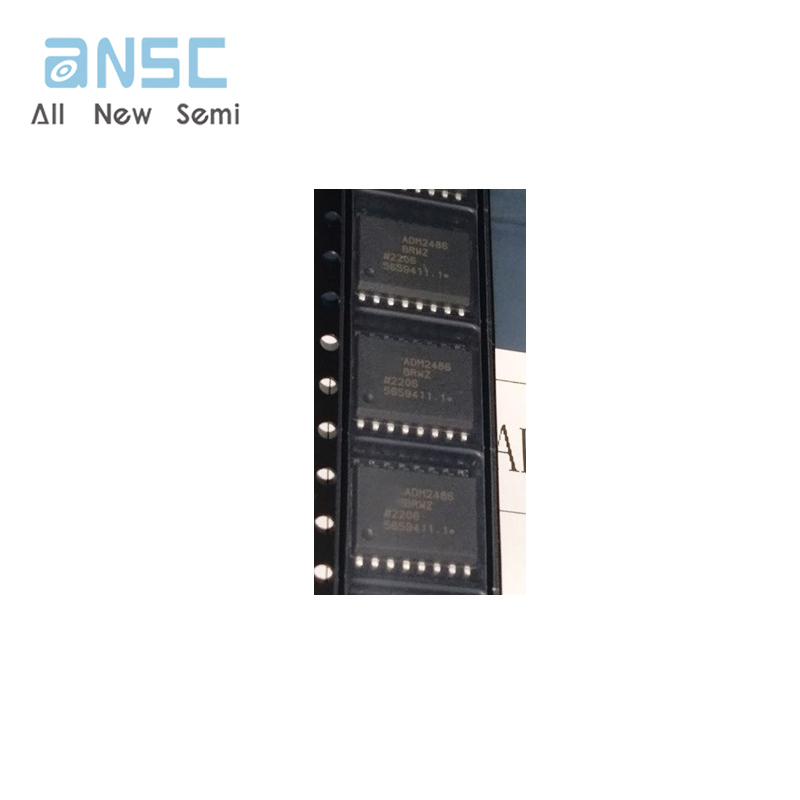

Actual image of the product

ADM2486BRW

Product datasheet

For more information, please download
