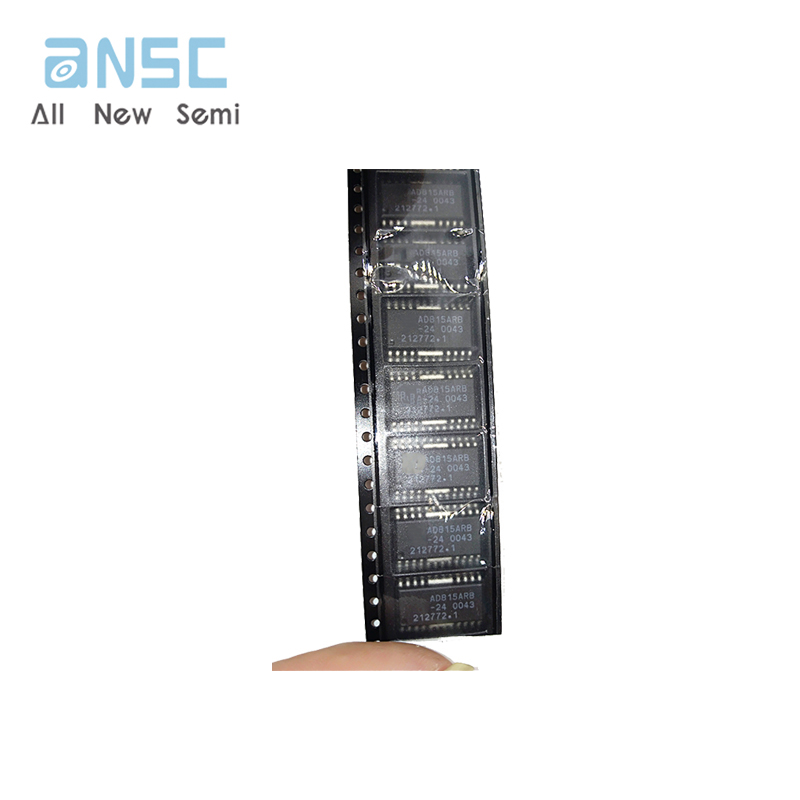

Hot sale original AD815ARB-24 IC AMP DIFF DUAL LDIST 24SOIC Differential Amplifier 2 Circuit Differential 24-SOIC w/Batwing

Product Details

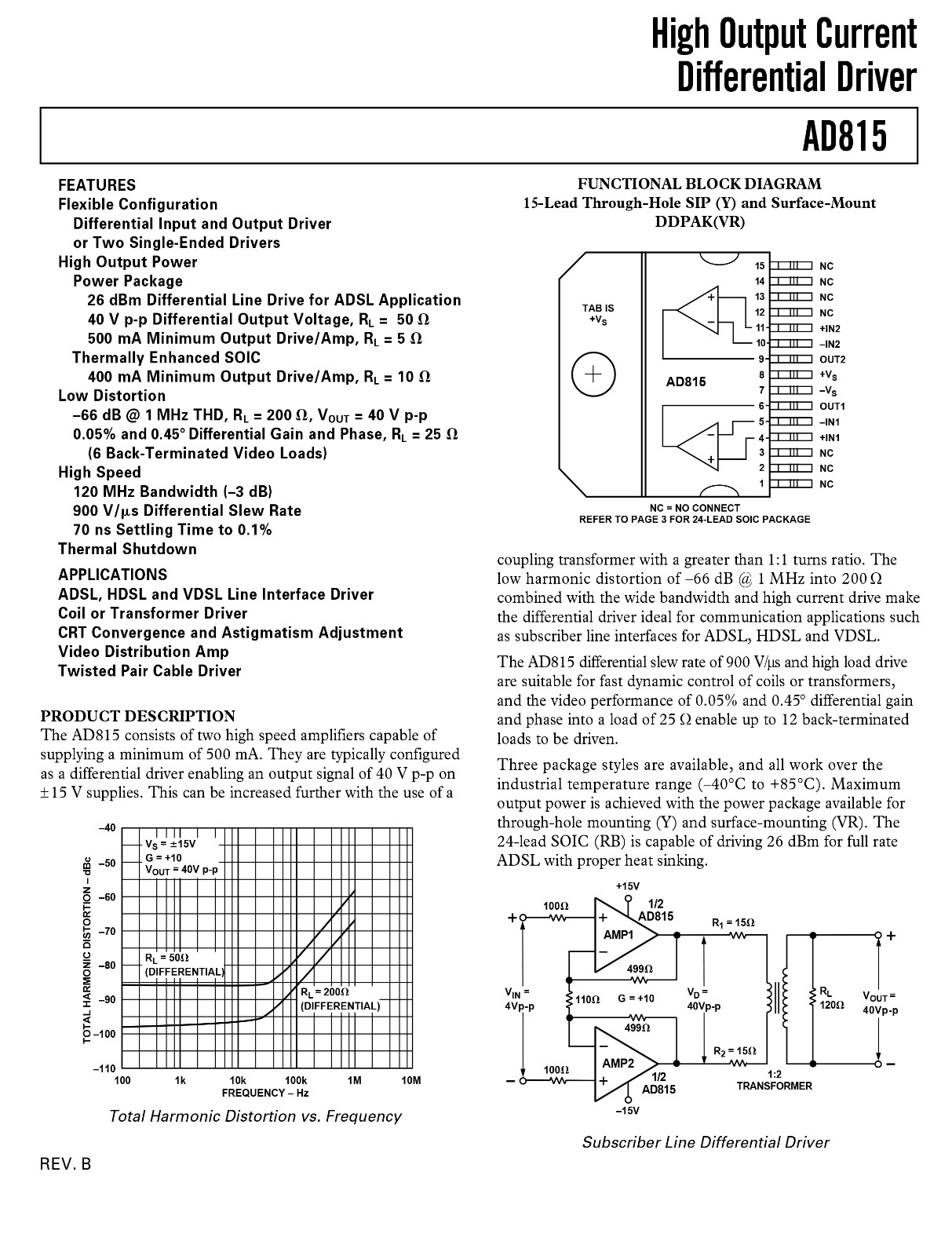

GENERAL DESCRIPTION

The AD815 consists of two high speed amplifiers capable of supplying a minimum of 500 mA. They are typically configured as a differential driver enabling an output signal of 40 V p-p on ±15 V supplies. This can be increased further with the use of a coupling transformer with a greater than 1:1 turns ratio. The low harmonic distortion of –66 dB @ 1 MHz into 200 Ω combined with the wide bandwidth and high current drive make the differential driver ideal for communication applications such as subscriber line interfaces for ADSL, HDSL and VDSL.

FEATURES

Flexible Configuration
Differential Input and Output Driver or Two Single-Ended Drivers
Industrial Temperature Range
High Output Power
Thermally Enhanced SOIC
400 mA Minimum Output Drive/Amp, RL = 10 Ω
Low Distortion
–66 dB @ 1 MHz THD, RL = 200 Ω, VOUT = 40 V p-p
0.05% and 0.45 Differential Gain and Phase, RL = 25 Ω (6 Back-Terminated Video Loads)
High Speed
120 MHz Bandwidth (–3 dB)
900 V/μs Differential Slew Rate
70 ns Settling Time to 0.1%
Thermal Shutdown

APPLICATIONS

ADSL, HDSL, and VDSL Line Interface Driver
Coil or Transformer Driver
CRT Convergence and Astigmatism Adjustment
Video Distribution Amp
Twisted Pair Cable Driver

Product Description

Product Photos

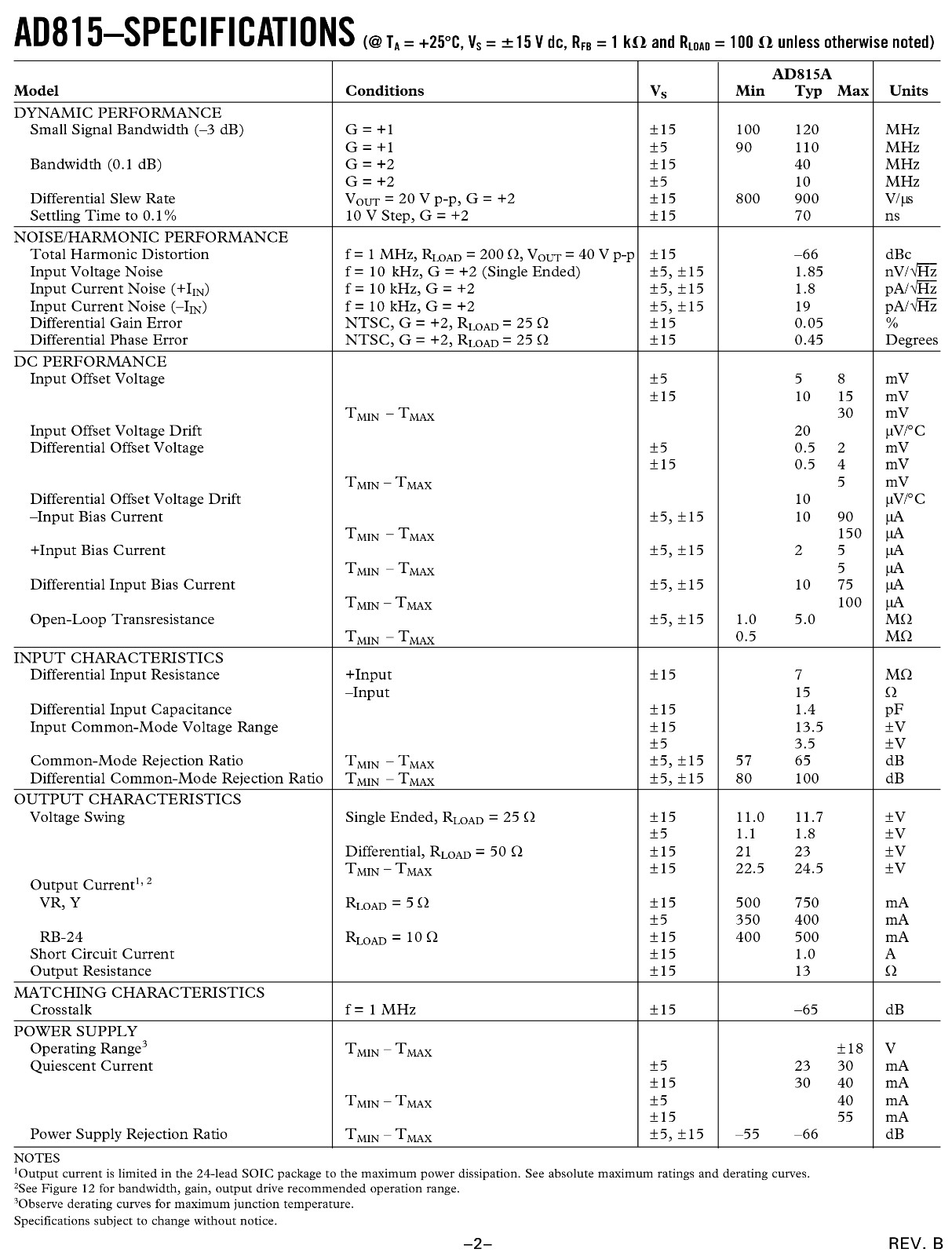

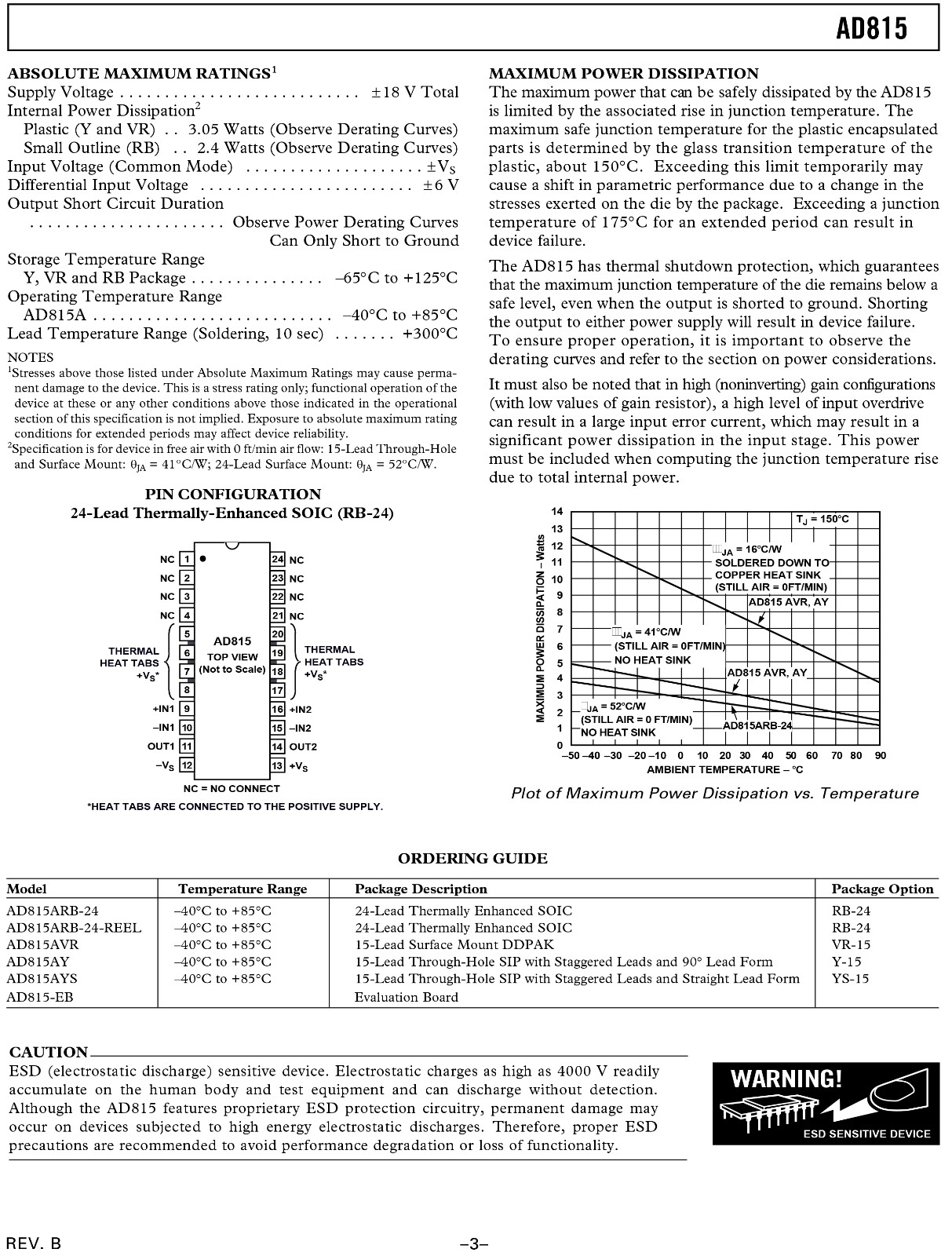

Product datasheet
