Hot sale Original LMZ10503TZE-ADJ IC 6.7 A SWITCHING REGULATOR 1160 kHz SWITCHING FREQ-MAX PSSO7 10.16 X 13.77 MM

Manufacturer Product Number

LMZ10503TZE-ADJ

Description

LMZ10503TZE-ADJ IC 6.7 A SWITCHING REGULATOR 1160 kHz SWITCHING FREQ-MAX PSSO7 10.16 X 13.77 MM 4.57 MM HEIGHT TO-PMOD 7 PIN

Package Condition

TO-PMOD-7

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Description

Type#	Description
ANSC PART#	ANSC-LMZ10503TZE-ADJ
Ihs Manufacturer	Original
Package Description	HSOP
Additional Feature	ALSO OPRERATES IN ADJUSTABLE MODE FROM 0.8 TO 5 V
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	VOLTAGE-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	5.5 V
Input Voltage-Min	2.95 V
Input Voltage-Nom	3.3 V
JESD-30 Code	R-PSSO-G7
Length	10.16 mm
Number of Functions	1
Number of Terminals	7
Operating Temperature-Max	125 °C
Operating Temperature-Min	-40 °C
Output Current-Max	6.7 A
Package Body Material	PLASTIC/EPOXY
Package Code	HSOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, HEAT SINK/SLUG
Qualification Status	Not Qualified
Seated Height-Max	4.82 mm
Surface Mount	YES
Switcher Configuration	BUCK
Switching Frequency-Max	1160 kHz
Temperature Grade	AUTOMOTIVE
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	SINGLE
Width	9.85 mm

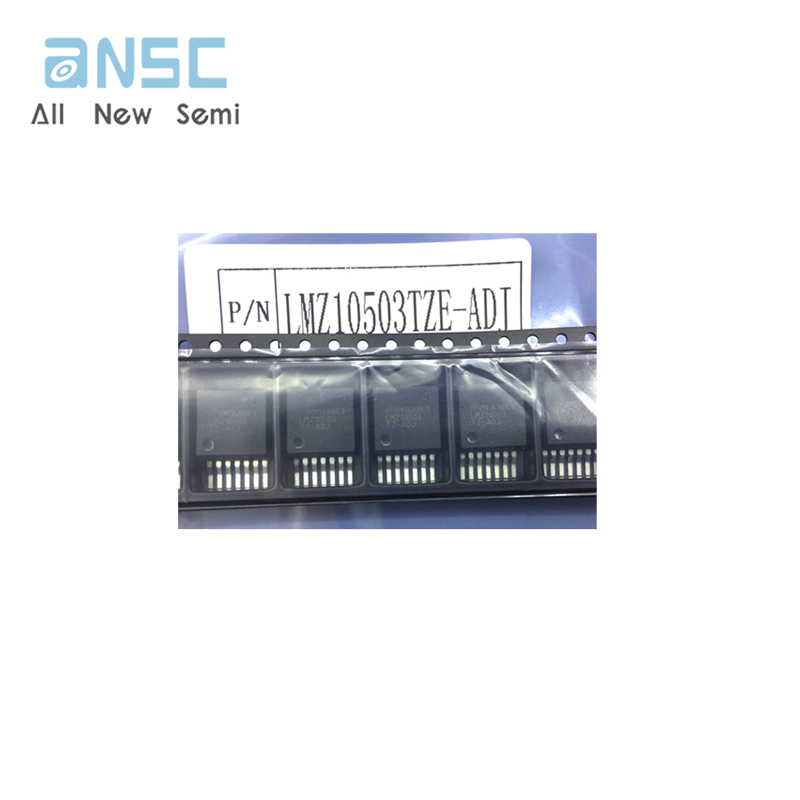

Actual image of the product

LMZ10503TZE-ADJ
