Hot sale Original ISO1541DR Photocoupler SMD mounting SOIC-8 Open Drain 2.5KV 2 181ns Low-Power Bidirectional I2C

Manufacturer Product Number
ISO1541DR
Description

ISO1541DR Photocoupler SMD mounting SOIC-8 Open Drain 2.5KV 2 181ns Low-Power Bidirectional I2C Isolators

Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

ISO1541DR Description
The COMLINEAR CLC2011 (dual) and CLC4011 (quad) are ultra-low cost, low power, voltage feedback amplifers. At 2.7V, the CLCx011 family uses only 136μA of supply current per amplifer and are designed to operate from a supply range of 2.5V to 5.5V (±1.25 to ±2.75). The input voltage range exceeds the negative and positive rails.
The CLCx011 family of amplifers offer high bipolar performance at a low CMOS prices. They offer superior dynamic performance with 4.9MHz small signal bandwidths and 5.3V/μs slew rates. The combination of low power, high bandwidth, and rail-to-rail performance make the CLCx011 amplifers well suited for battery-powered communication/computing systems.


ISO1541DR Features
■ 136μA supply current
■ 4.9MHz bandwidth
■ Output swings to within 20mV of either rail
■ Input voltage range exceeds the rail by >250mV
■ 5.3V/μs slew rate
■ 21nV/√Hz input voltage noise
■ 16mA output current
■ Fully specifed at 2.7V and 5V supplies


ISO1541DR Applications
■ Portable/battery-powered applications
■ PCMCIA, USB
■ Mobile communications, cell phones, pagers
■ ADC buffer
■ Active flters
■ Portable test instruments
■ Notebooks and PDA’s
■ Signal conditioning
■ Medical Equipment
■ Portable medical instrumentation

Product Description

Type Description
ANSC PART# ANSC- ISO1541DR
Category Isolators
Digital Isolators
Mfr Original
Series -
Packaging Tape & Reel (TR)
Cut Tape (CT)
/
Part Status Active
Technology Capacitive Coupling
Type I2C
Isolated Power No
Number of Channels 2
Inputs - Side 1/Side 2  2/1
Channel Type Bidirectional, Unidirectional
Voltage - Isolation 2500Vrms
Common Mode Transient Immunity (Min) 25kV/µs
Data Rate 1Mbps
Propagation Delay tpLH / tpHL (Max) -
Pulse Width Distortion (Max) 80ns, 21ns
Rise / Fall Time (Typ) -
Voltage - Supply 3V ~ 5.5V
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC
Base Product Number ISO1541

Actual image of the product

ISO1541DR

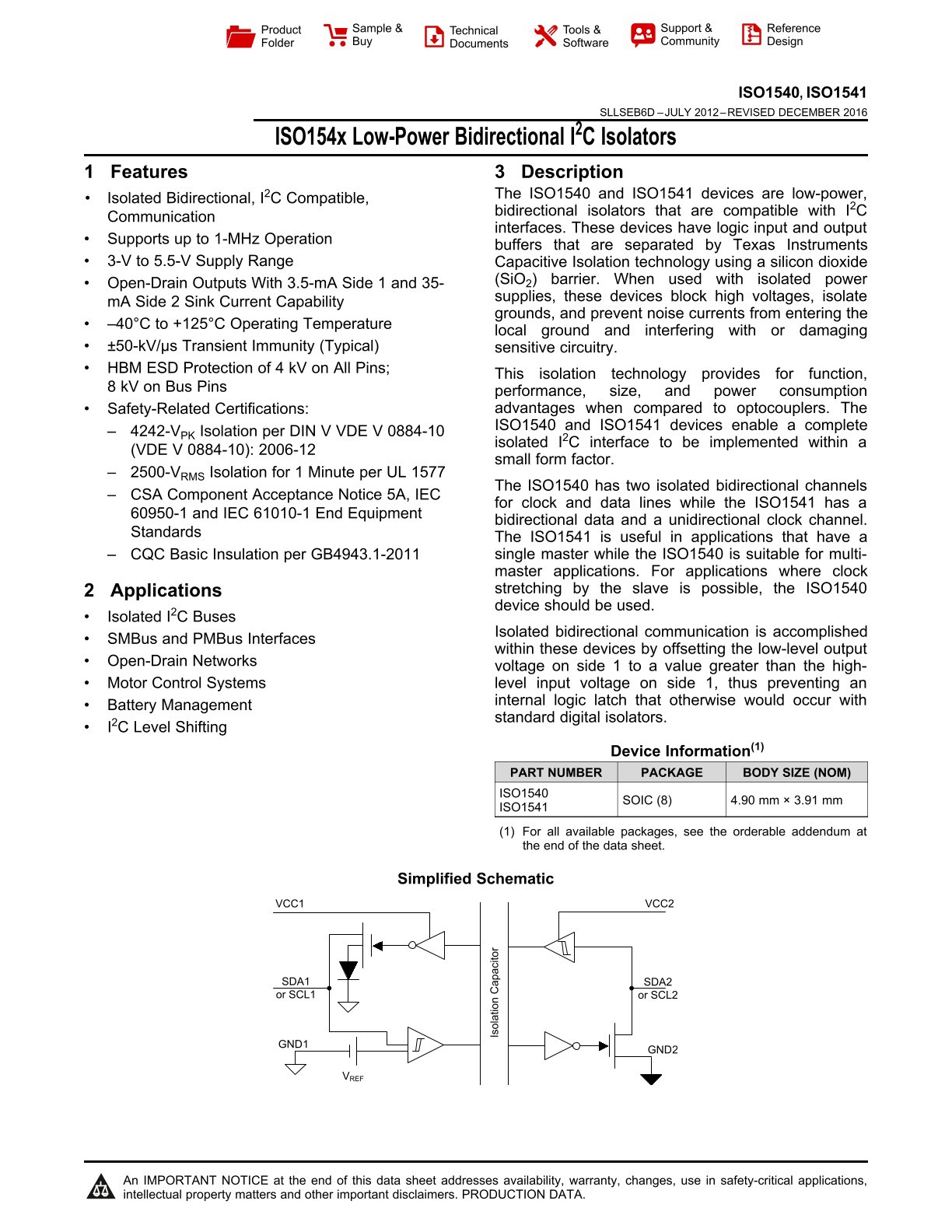

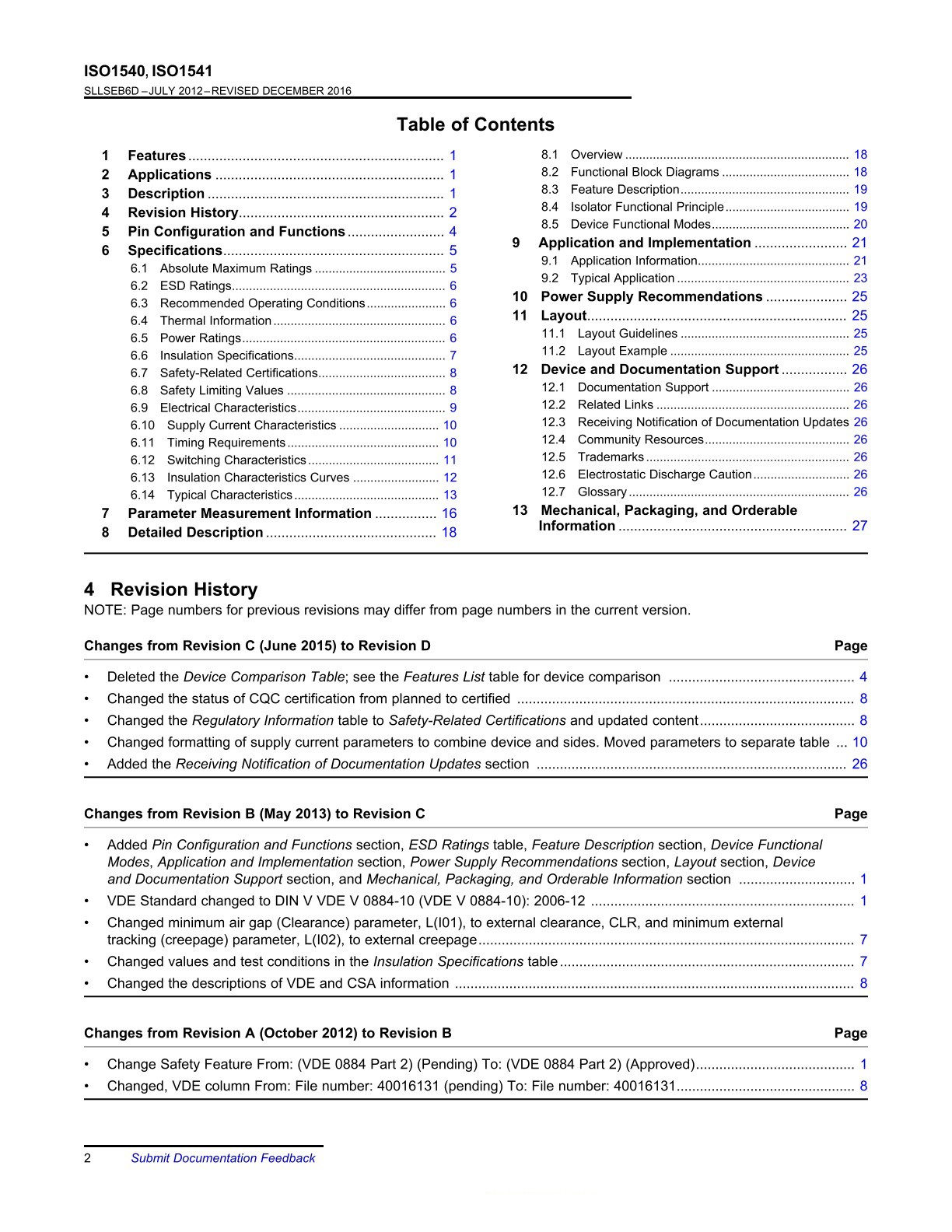

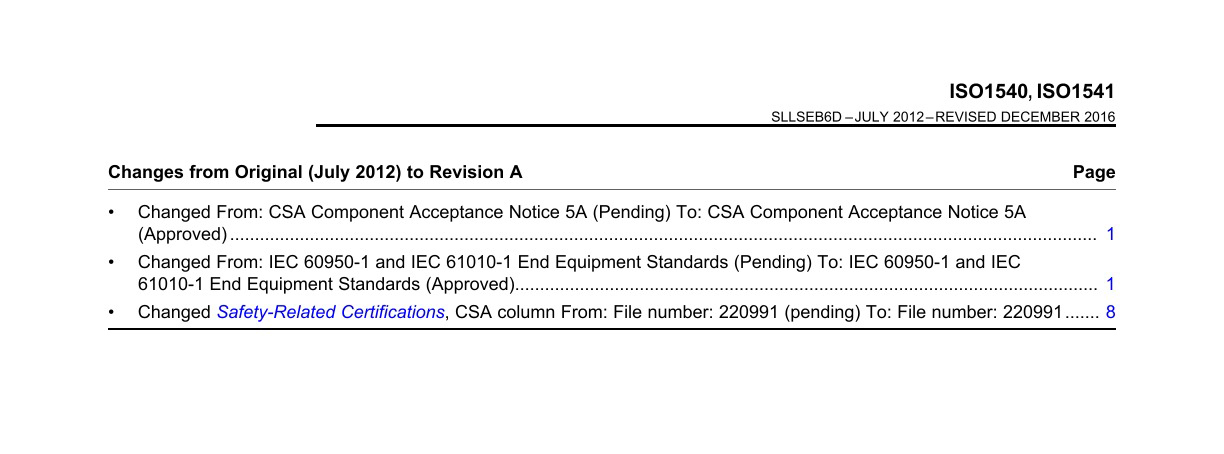

Product datasheet

For more information, please download
