Hot sale Original MAX3237EAI Interface IC TRANSCEIVER FULL 5/3 28SSOP Transceiver Full 300 mV 250kbps Surface Mount 28-SSOP
Manufacturer Product Number
MAX3237EAI
Description
Original MAX3237EAI Interface IC TRANSCEIVER FULL 5/3 28SSOP Transceiver Full 300 mV 250kbps Surface Mount 28-SSOP
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

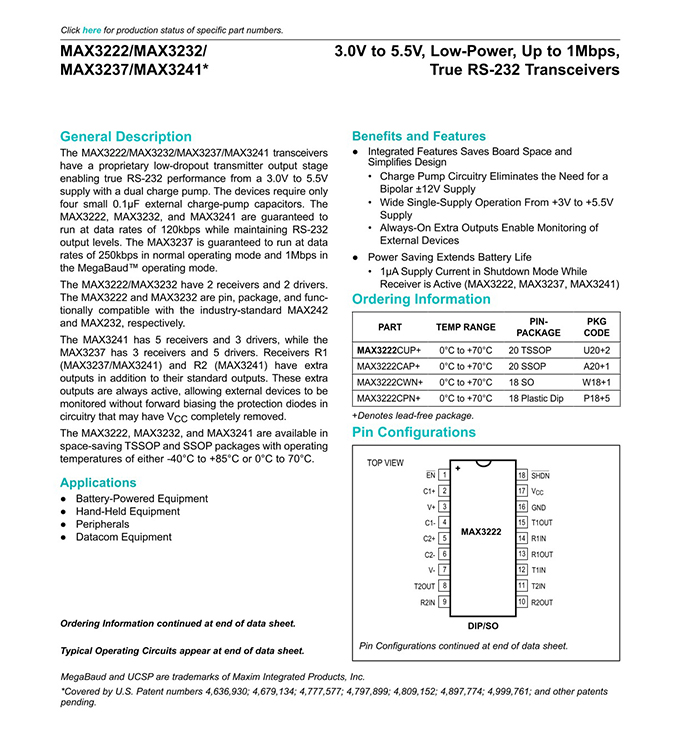

| General Description The MAX3222/MAX3232/MAX3237/MAX3241 transceivers have a proprietary low-dropout transmitter output stage enabling true RS-232 performance from a 3.0V to 5.5V supply with a dual charge pump. The devices require only four small 0.1µF external charge pump capacitors. The MAX3222, MAX3232, and MAX3241 are guaranteed to run at data rates of 120kbps while maintaining RS-232 output levels. The MAX3237 is guaranteed to run at data rates of 250kbps in the normal operating mode and 1Mbps in the MegaBaud™ operating mode, while maintaining RS-232 output levels. Features ♦ Low Supply Current: 300µA (MAX3222/MAX3232/MAX3241) 500µA (MAX3237) ♦ Guaranteed Data Rate: 120kbps (MAX3222/MAX3232/MAX3241) 250kbps (MAX3237—Normal Operation) 1Mbps (MAX3237—MegaBaud Operation) ♦ 1µA Low-Power Shutdown with Receivers Active (MAX3222/MAX3237/MAX3241) ♦ Flow-Through Pinout (MAX3237) ♦ Meets EIA/TIA-232 Specifications Down to 3.0V ♦ Guaranteed Mouse Driveability (MAX3241) ♦ Pin Compatible with Industry-Standard MAX232 (MAX3232) Pin Compatible with Industry-Standard MAX242 (MAX3222) ♦ Guaranteed Slew Rate: 6V/µs (MAX3222/MAX3232/MAX3237/MAX3241) 24V/µs (MAX3237—MegaBaud Operation) Applications Notebook, Subnotebook, and Palmtop Computers High-Speed Modems Battery-Powered Equipment Hand-Held Equipment Peripherals Printers |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC- MAX3237EAI |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Type | Transceiver |
| Protocol | RS232 |
| Number of Drivers/Receivers | 5/3 |
| Duplex | Full |
| Receiver Hysteresis | 300 mV |
| Data Rate | 250kbps |
| Voltage - Supply | 3V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 28-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 28-SSOP |
| Base Product Number | MAX3237 |

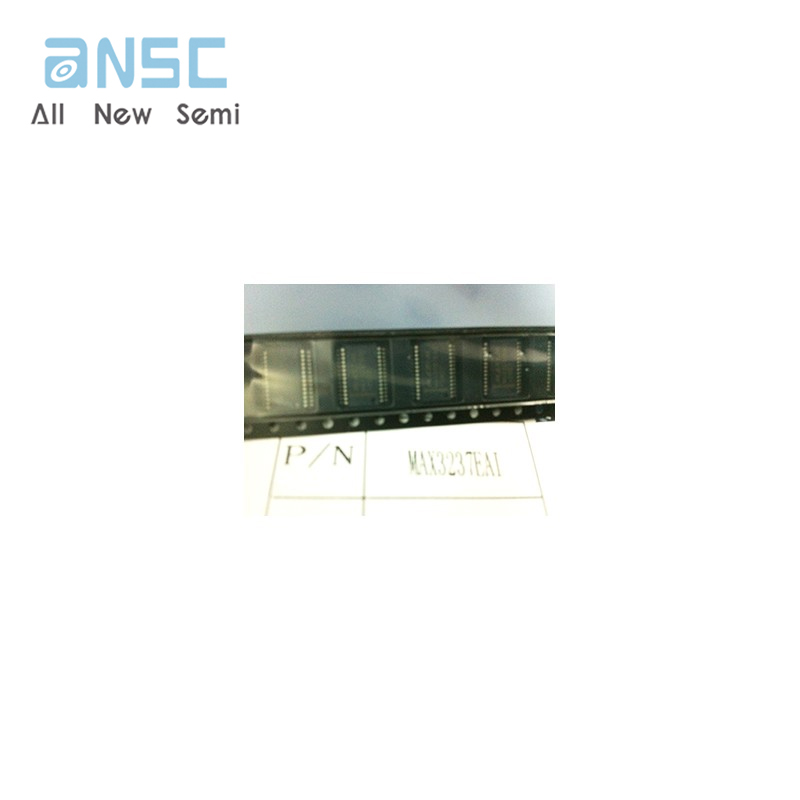

Product Photos

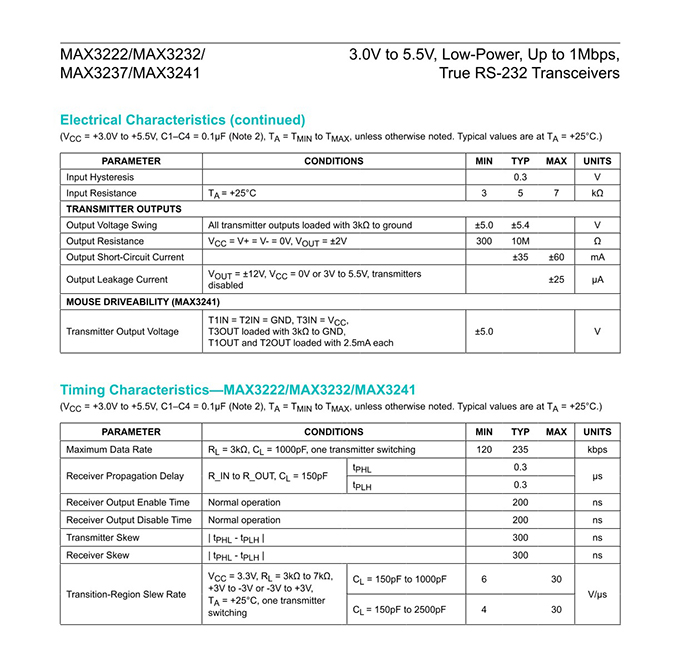

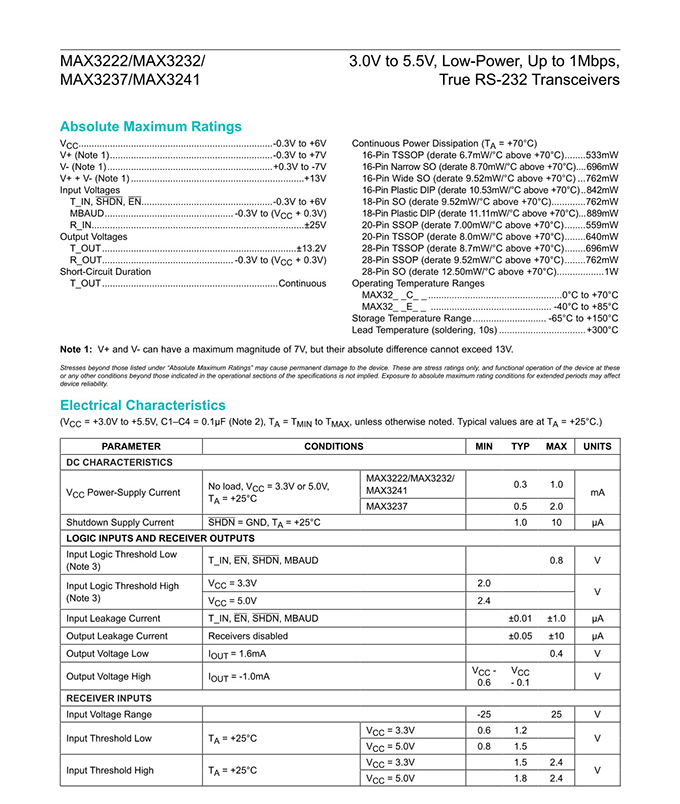

Product datasheet
