Hot sale Original SBB5089Z Wide Band Low Power Amplifier 50MHz Min 6000MHz Max 1 Func GAAS RF/Microwave Amplifiers
Manufacturer Product Number
SBB5089Z
Description
SBB5089Z Wide Band Low Power Amplifier 50MHz Min 6000MHz Max 1 Func GAAS RF/Microwave Amplifiers
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Product Description The SBB5089Z is a general-purpose RF amplifier designed for a wide range of applications. This SOT-89-3 packaged amplifier operates over a frequency range of 50 MHz to 6 GHz, making it suitable for various RF and microwave applications. Features Operating frequency range: 50 MHz to 6 GHz P1dB compression point: 20 dBm Gain: 15.5 dB Noise figure: 3.9 dB Third-order intercept point (OIP3): 35 dBm Operating supply voltage: 5 V Operating supply current: 75 mA Power dissipation: 550 mW Temperature range: -40°C to 105°C RoHS compliant SMD/SMT mounting style Applications Primary applications: RF and microwave communication systems Test and measurement equipment Radar and surveillance systems Secondary applications: Industrial, scientific, and medical (ISM) devices Aerospace and defense systems Automotive radar systems |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - SBB5089Z |
| Package Description | Halogen Free And Rohs Compliant, Sot-89, 3 Pin |
| Reach Compliance Code | Compliant |
| ECCN Code | 5A991.G |
| Factory Lead Time | 16 Weeks |
| Characteristic Impedance | 50 Ω |
| Construction | Component |
| Gain | 14.5 Db |
| Input Power-Max (CW) | 24 Dbm |
| JESD-609 Code | e4 |
| Mounting Feature | Surface Mount |
| Number of Functions | 1 |
| Number of Terminals | 3 |
| Operating Frequency-Max | 6000 Mhz |
| Operating Frequency-Min | 50 Mhz |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min | -40 °C |
| Package Body Material | Plastic/Epoxy |
| Package Equivalence Code | TO-243 |
| Power Supplies | 5 V |
| RF/Microwave Device Type | Wide Band Low Power |
| Supply Current-Max | 92 Ma |
| Surface Mount | Yes |
| Technology | Gaas |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |

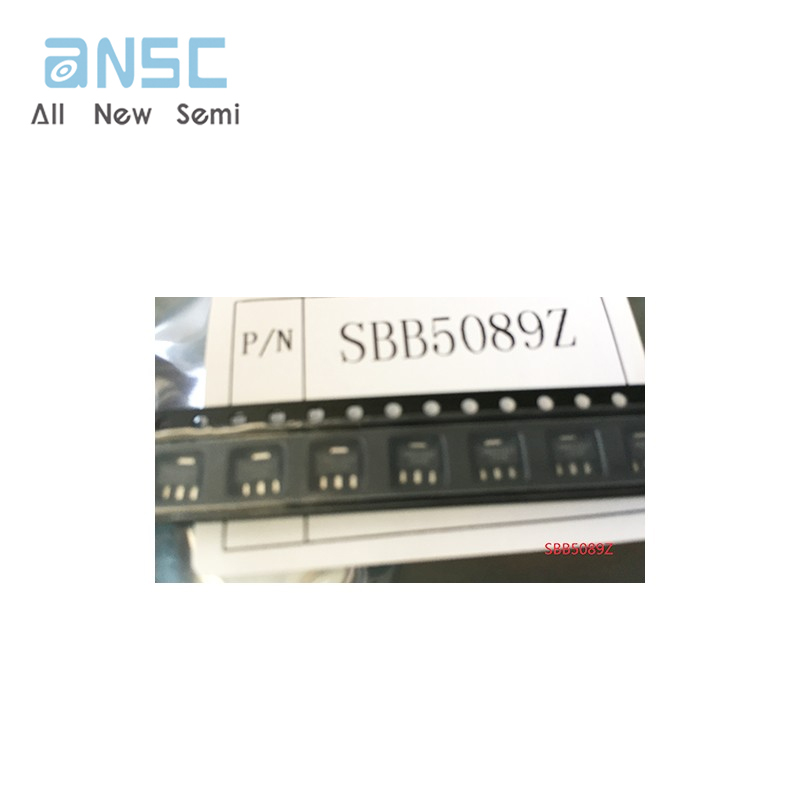

Actual image of the product

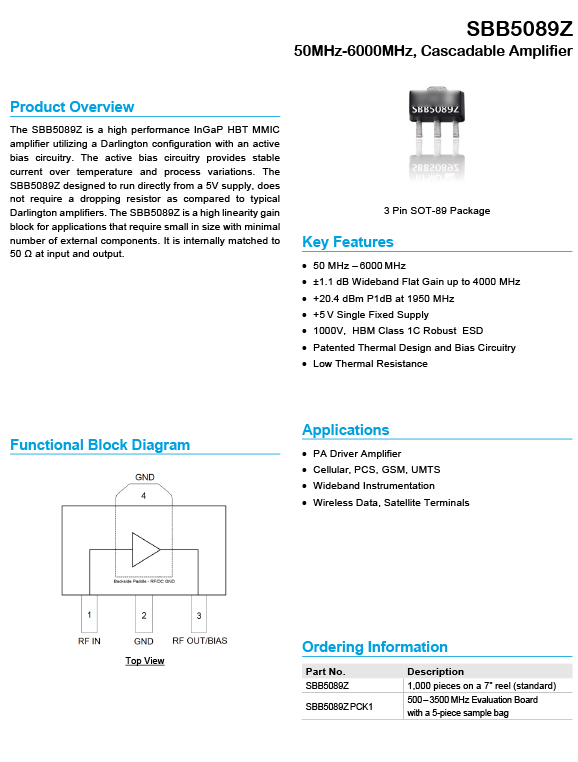

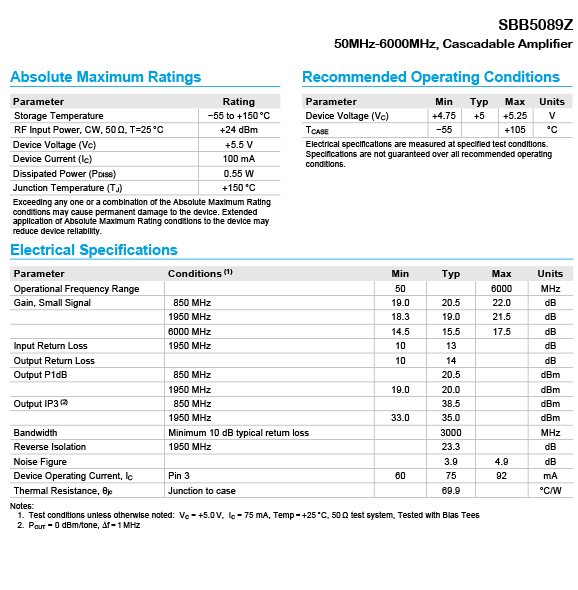

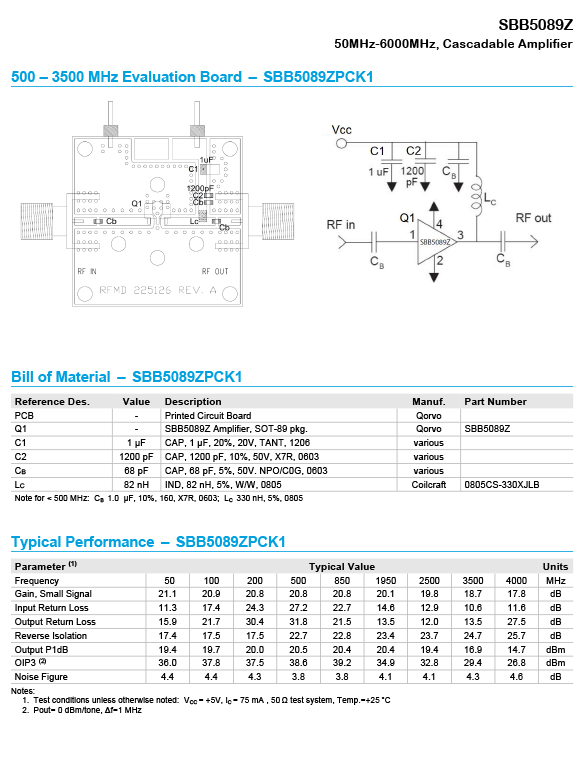

Product datasheet
For more information, please download
