Hot sale original AD9361BBCZ IC RF TxRx Only Cellular LTE 70MHz ~ 6GHz 144-LFBGA, CSPBGA
Manufacturer Product Number
AD9361BBCZ
Description
Original AD9361BBCZ IC RF TXRX CELLULAR 144CSPBGA
Package Condition
Tray
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| GENERAL DESCRIPTION The AD9361 is a high performance, highly integrated radio frequency (RF) Agile Transceiver™ designed for use in 3G and 4G base station applications. Its programmability and wideband capability make it ideal for a broad range of transceiver applications. The device combines a RF front end with a flexible mixed-signal baseband section and integrated frequency synthesizers, simplifying design-in by providing a configurable digital interface to a processor. The AD9361 receiver LO operates from 70 MHz to 6.0 GHz and the transmitter LO operates from 47 MHz to 6.0 GHz range, covering most licensed and unlicensed bands. Channel bandwidths from less than 200 kHz to 56 MHz are supported. FEATURES RF 2 × 2 transceiver with integrated 12-bit DACs and ADCs TX band: 47 MHz to 6.0 GHz RX band: 70 MHz to 6.0 GHz Supports TDD and FDD operation Tunable channel bandwidth: <200 kHz to 56 MHz Dual receivers: 6 differential or 12 single-ended inputs Superior receiver sensitivity with a noise figure of 2 dB at 800 MHz LO RX gain control Real-time monitor and control signals for manual gain Independent automatic gain control Dual transmitters: 4 differential outputs Highly linear broadband transmitter TX EVM: ≤−40 dB TX noise: ≤−157 dBm/Hz noise floor TX monitor: ≥66 dB dynamic range with 1 dB accuracy Integrated fractional-N synthesizers 2.4 Hz maximum local oscillator (LO) step size Multichip synchronization CMOS/LVDS digital interface APPLICATIONS Point to point communication systems Femtocell/picocell/microcell base stations General-purpose radio systems |
Product Description
| Type | Description |
| ANSC PART# | ANSC- AD9361BBCZ |
| Category | RF and Wireless |
| RF Transceiver ICs | |
| Mfr | Original |
| Series | - |
| Packaging | Tray |
| Part Status | Active |
| DigiKey Programmable | Not Verified |
| Type | TxRx Only |
| RF Family/Standard | Cellular |
| Protocol | LTE |
| Modulation | - |
| Frequency | 70MHz ~ 6GHz |
| Data Rate (Max) | - |
| Power - Output | 8dBm |
| Sensitivity | - |
| Memory Size | - |
| Serial Interfaces | SPI |
| Voltage - Supply | 1.3V |
| Current - Receiving | 175mA ~ 445mA |
| Current - Transmitting | 240mA ~ 820mA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 144-LFBGA, CSPBGA |
| Supplier Device Package | 144-CSPBGA (10x10) |
| Base Product Number | AD9361 |

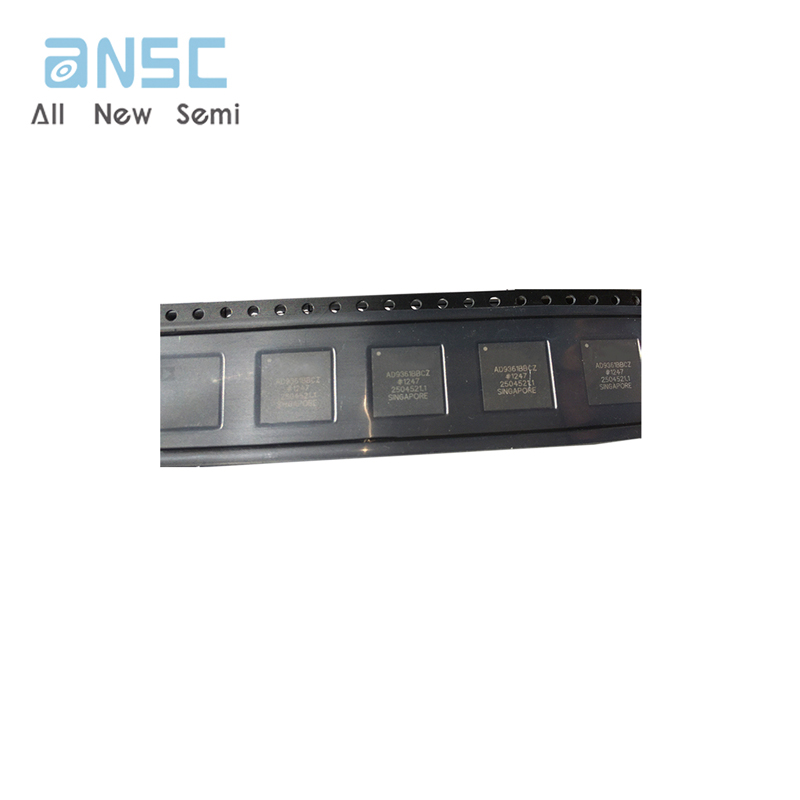

Product Photos

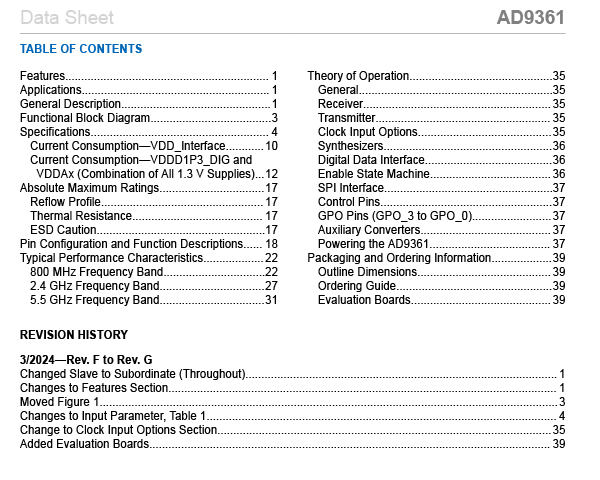

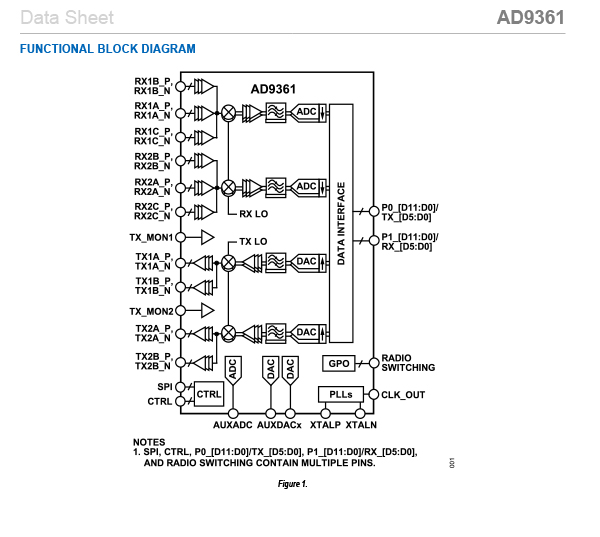

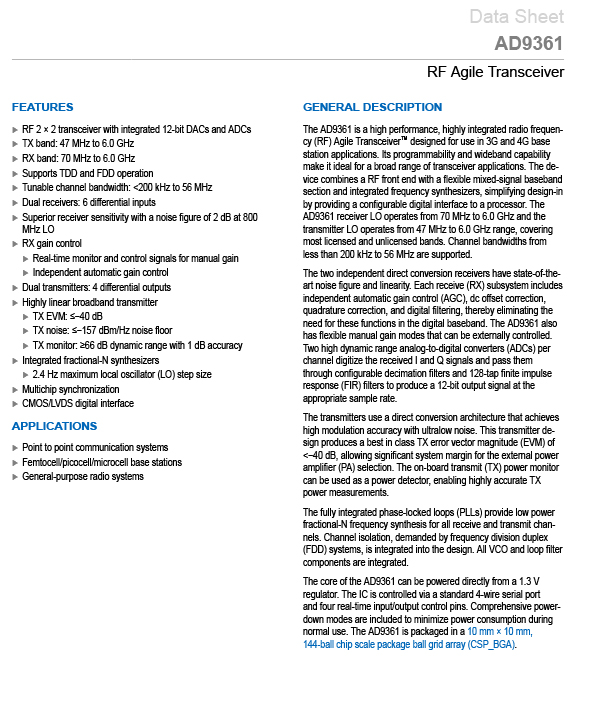

Product datasheet
