Product Descriptions
The Intel 80C186XL is a Modular Core re-implementation of the 80C186 microprocessor. It offers higher speed and lower power consumption than the standard 80C186 but maintains 100% clock-for-clock functional compatibility. Packaging and pinout are also identical.
Y Low Power, Fully Static Versions of 80C186/80C188
Y Operation Modes:
Ð Enhanced Mode
Ð DRAM Refresh Control Unit
Ð Power-Save Mode
Ð Direct Interface to 80C187 (80C186XL Only)
Ð Compatible Mode
Ð NMOS 80186/80188 Pin-for-Pin Replacement for Non-Numerics Applications
YIntegrated Feature Set
Ð Static, Modular CPU
Ð Clock Generator
Ð 2 Independent DMA Channels
Ð Programmable Interrupt Controller
Ð 3 Programmable 16-Bit Timers
Ð Dynamic RAM Refresh Control Unit
Ð Programmable Memory and Peripheral Chip Select Logic
Ð Programmable Wait State Generator
Ð Local Bus Controller
Ð Power-Save Mode
Ð System-Level Testing Support (High Impedance Test Mode)
Y Completely Object Code Compatible with Existing 8086/8088 Software and Has 10 Additional Instructions over 8086/8088
Y Speed Versions Available
Ð 25 MHz (80C186XL25/80C188XL25)
Ð 20 MHz (80C186XL20/80C188XL20)
Ð 12 MHz (80C186XL12/80C188XL12)
Y Direct Addressing Capability to 1 MByte Memory and 64 Kbyte I/O
Y Available in 68-Pin:
Ð Plastic Leaded Chip Carrier (PLCC)
Ð Ceramic Pin Grid Array (PGA)
Ð Ceramic Leadless Chip Carrier (JEDEC A Package)
Y Available in 80-Pin:
Ð Quad Flat Pack (EIAJ)
Ð Shrink Quad Flat Pack (SGFP)
Y Available in Extended Temperature Range (b40§ C to a85§ C)

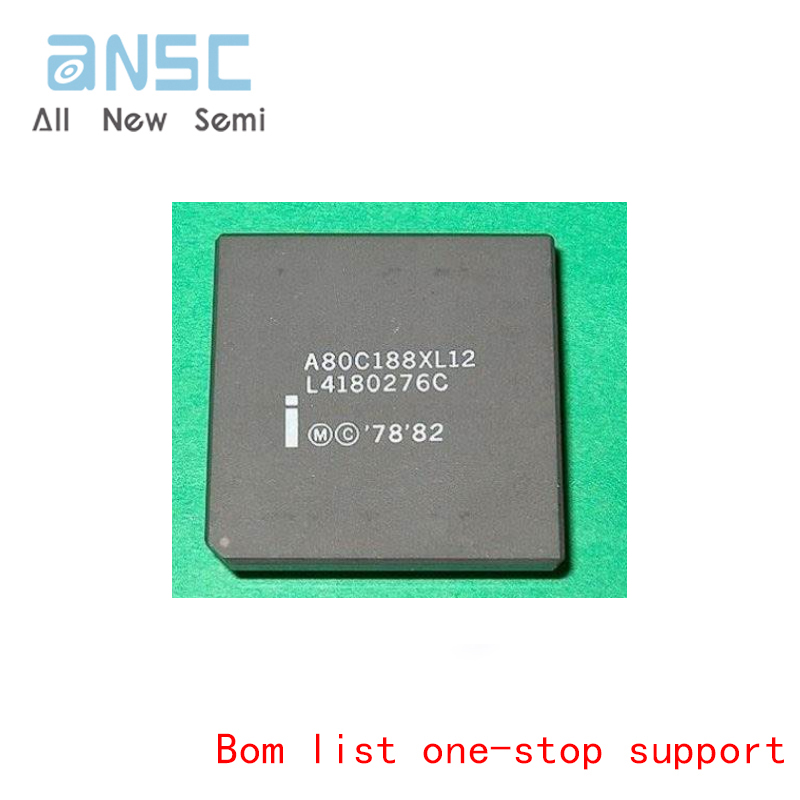

Actual product photos
Product Data Manual:
For more product information, please download the PDF
