You can contact me for the best price Memory IC AM27C64-150DI EPROM UV 64K-bit 8K x 8 150ns 28-Pin CDIP Hot sale original
Manufacturer Product Number
AM27C64-150DI
Description
Memory IC AM27C64-150DI EPROM UV 64K-bit 8K x 8 150ns 28-Pin CDIP
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

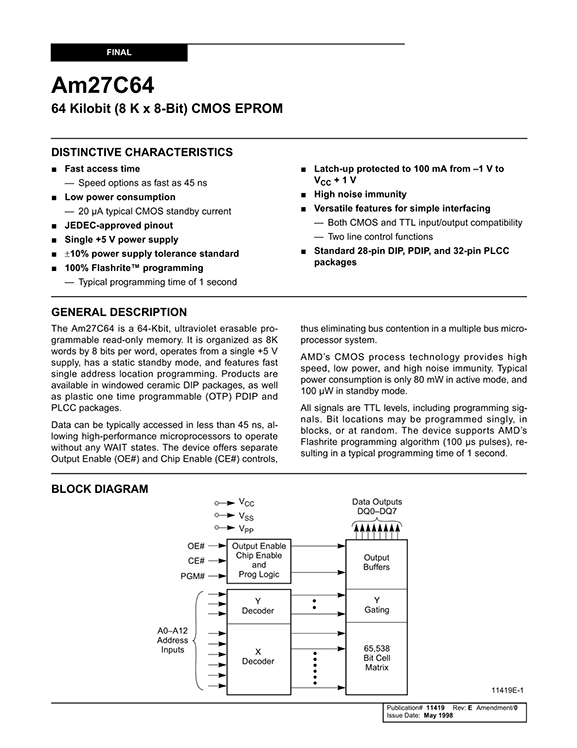

| The Am27C64 is a 64-Kbit ultraviolet erasable program mable read-only memory. It is organized as 8K words by 8 bits per word, operates from a single +5 V supply, has a static standby mode, and features fast single address location programming. Products are available in win dowed ceramic DIP packages as well as plastic one time programmable (OTP) PDIP, and PLCC packages. DISTINCTIVE CHARACTERISTICS ■Fast access time —45 ns ■Low power consumption —20 µA typical CMOS standby current ■JEDEC-approved pinout ■Single +5 V power supply ■±10% power supply tolerance available ■100% Flashrite programming — Typical programming time of 1 second ■Latch-up protected to 100 mA from –1 V to VCC+ 1 V ■High noise immunity ■Versatile features for simple interfacing — Both CMOS and TTL input/output compatibility — Two line control functions ■Standard 28-pin DIP, PDIP, and 32-pin PLCC packages |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- AM27C64-150DI |
| Ihs Manufacturer | Original |
| Part Package Code | DIP |
| Package Description | DIP, DIP28,.6 |
| Pin Count | 28 |
| Access Time-Max | 150 ns |
| I/O Type | COMMON |
| Memory Density | 65536 bit |
| Memory IC Type | UVPROM |
| Memory Width | 8 |
| Number of Functions | 1 |
| Number of Terminals | 28 |
| Number of Words | 8192 words |
| Number of Words Code | 8000 |
| Operating Mode | ASYNCHRONOUS |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min | -40 °C |
| Organization | 8KX8 |
| Output Characteristics | 3-STATE |
| Package Body Material | CERAMIC, METAL-SEALED COFIRED |
| Package Code | DIP |
| Package Equivalence Code | DIP28,.6 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Parallel/Serial | PARALLEL |
| Programming Voltage | 12.75 V |
| Qualification Status | Not Qualified |
| Standby Current-Max | 0.0001 A |
| Supply Current-Max | 0.025 mA |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | NO |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | TIN LEAD |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |

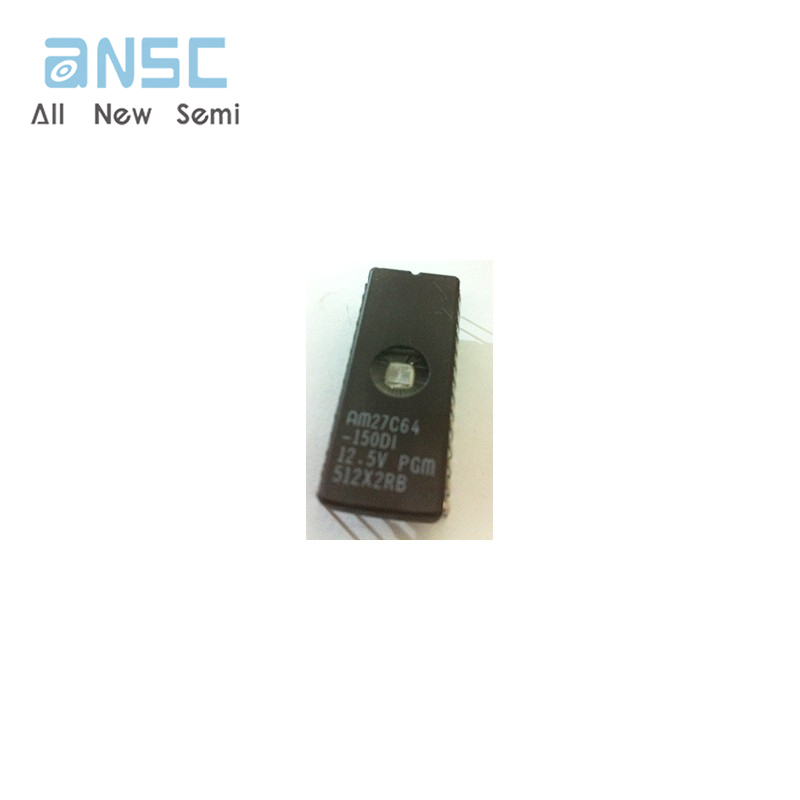

Product Photos

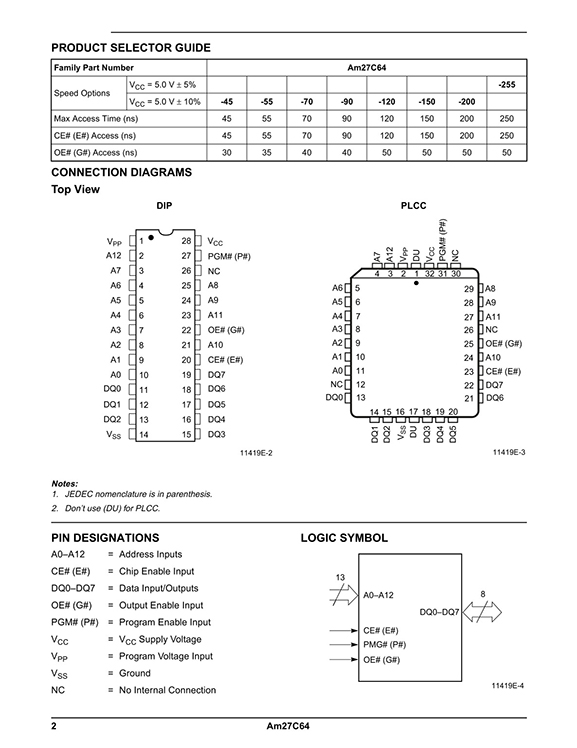

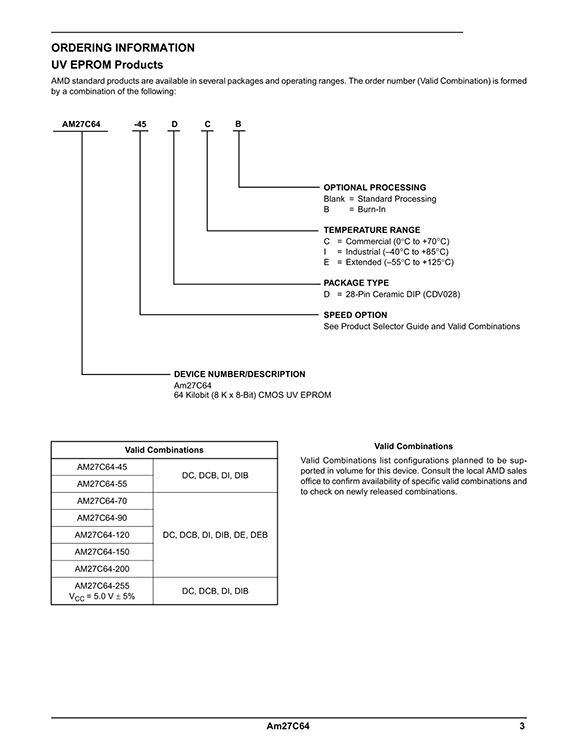

Product datasheet
