Hot sale Original HA2-2525-5 Amplifier Circuits OP-AMP 14000uV OFFSET-MAX 20MHz BAND WIDTH MBCY8
Manufacturer Product Number
HA2-2525-5
Description
HA2-2525-5 Amplifier Circuits OP-AMP 14000uV OFFSET-MAX 20MHz BAND WIDTH MBCY8
Package Condition
Tape & Reel (TR)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| 20MHz, High Slew Rate, Uncompensated, High Input Impedance, Operational Amplifiers HA-2520, HA-2522, HA-2525 comprise a series of operational amplifiers delivering an unsurpassed combination of specifications for slew rate, bandwidth and settling time. These dielectrically isolated amplifiers are controlled at close loop gains greater than 3 without external compensation. In addition, these high performance components also provide low offset current and high input impedance. Features • High Slew Rate . . . . . . . . . . . . . . . . . . . . . . . . . . 120V/μs • Fast Settling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200ns • Full Power Bandwidth . . . . . . . . . . . . . . . . . . . . . . . 2MHz • Gain Bandwidth (AV ≥ 3) . . . . . . . . . . . . . . . . . . . . 20MHz • High Input Impedance . . . . . . . . . . . . . . . . . . . . . . 100MΩ • Low Offset Current . . . . . . . . . . . . . . . . . . . . . . . . . . .10nA • Compensation Pin for Unity Gain Capability • Pb-Free Plus Anneal Available (RoHS Compliant) Applications • Data Acquisition Systems • RF Amplifiers • Video Amplifiers • Signal Generators |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- HA2-2525-5 |
| Ihs Manufacturer | Original |
| Part Package Code | BCY |
| Package Description | METAL CAN, 8 PIN |
| Pin Count | 8 |
| Amplifier Type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Average Bias Current-Max (IIB) | 0.5 µA |
| Bias Current-Max (IIB) @25C | 0.25 µA |
| Common-mode Reject Ratio-Nom | 90 dB |
| Frequency Compensation | YES (AVCL>=3) |
| Input Offset Voltage-Max | 14000 µV |
| JESD-30 Code | O-MBCY-W8 |
| JESD-609 Code | e0 |
| Low-Offset | NO |
| Neg Supply Voltage Limit-Max | -20 V |
| Neg Supply Voltage-Nom (Vsup) | -15 V |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Operating Temperature-Max | 75 °C |
| Operating Temperature-Min | |
| Package Body Material | METAL |
| Package Equivalence Code | CAN8,.2 |
| Package Shape | ROUND |
| Package Style | CYLINDRICAL |
| Qualification Status | Not Qualified |
| Slew Rate-Min | 80 V/us |
| Slew Rate-Nom | 120 V/us |
| Supply Current-Max | 6 mA |
| Supply Voltage Limit-Max | 20 V |
| Supply Voltage-Nom (Vsup) | 15 V |
| Surface Mount | NO |
| Technology | BIPOLAR |
| Temperature Grade | COMMERCIAL EXTENDED |
| Terminal Finish | TIN LEAD |
| Terminal Form | WIRE |
| Terminal Position | BOTTOM |
| Unity Gain BW-Nom | 20000 |
| Voltage Gain-Min | 5000 |

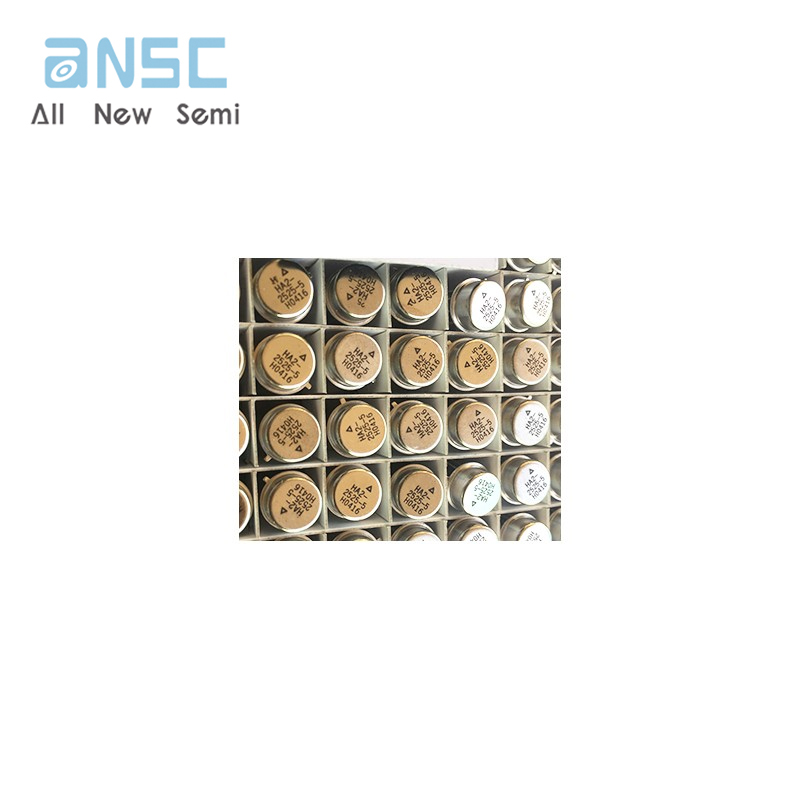

Actual image of the product

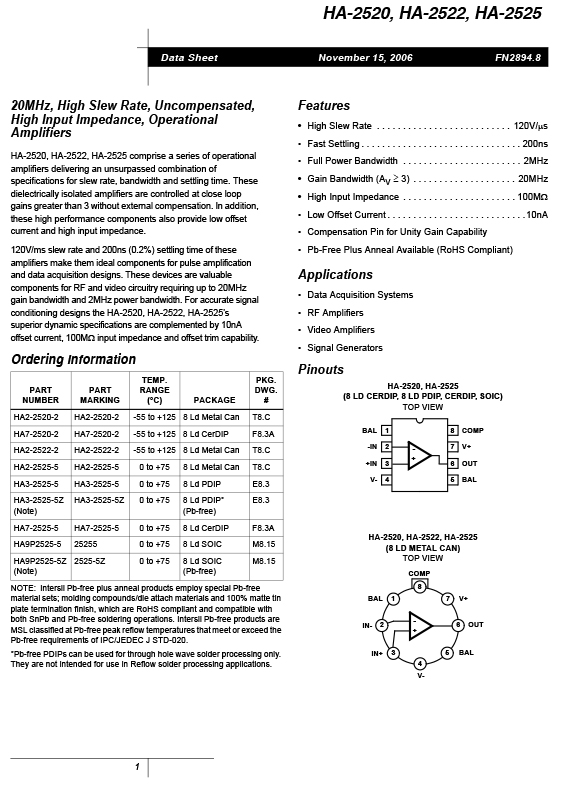

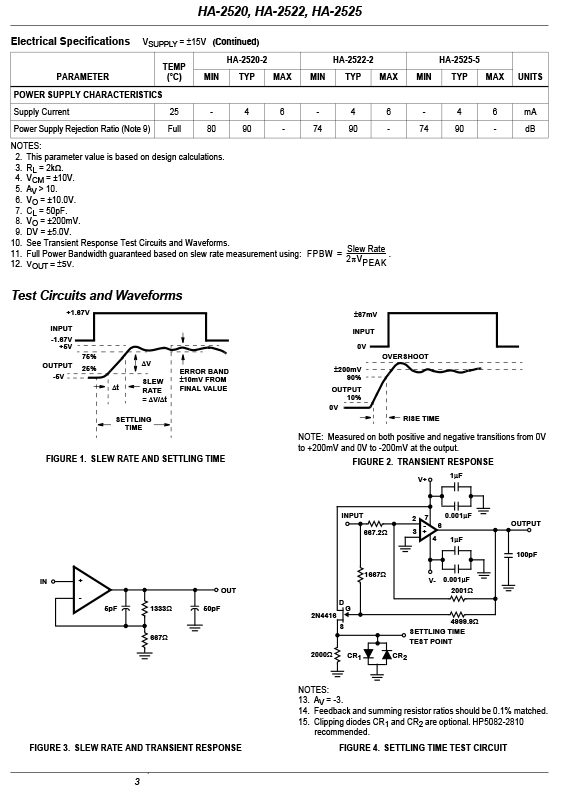

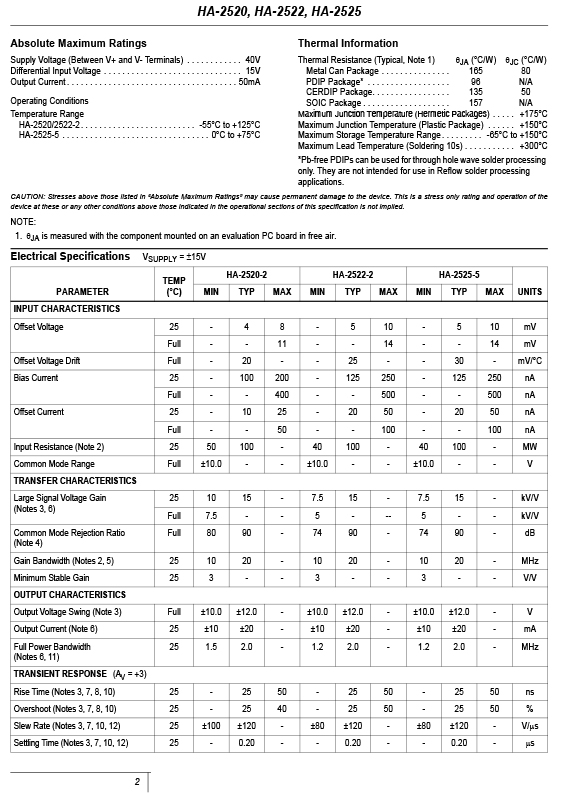

Product datasheet
