You can contact me for the best price SAA1064T LED Driver, 16-Segment, BIPolar, PDSO24 Hot sale Original
Manufacturer
Manufacturer Product Number
SAA1064T
Description
SAA1064T LED Driver, 16-Segment, BIPolar, PDSO24 Hot sale Original
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

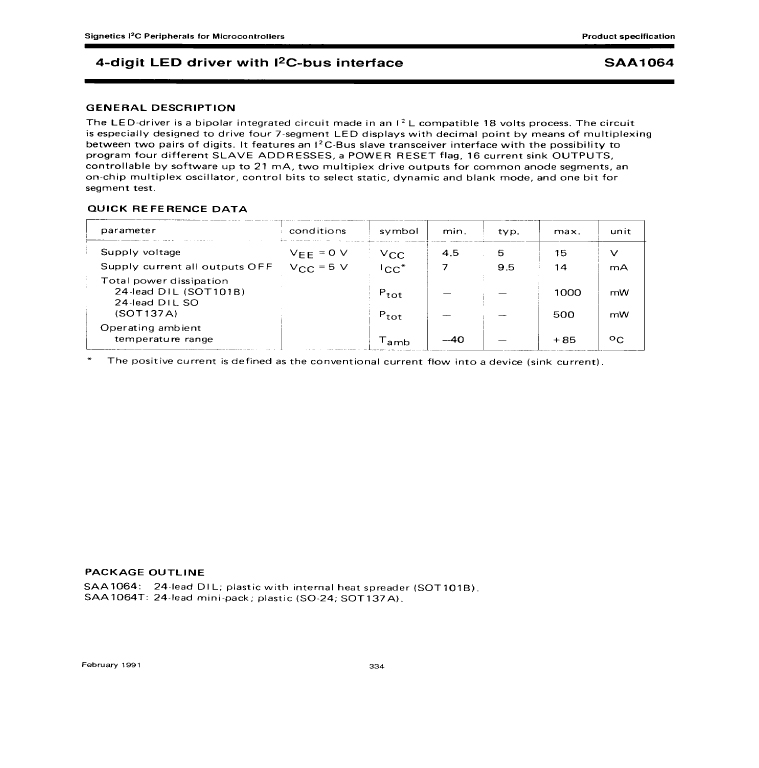

| Description The LED-driver is a bipolar integrated circuit made in an I2L compatible 18 volts process. The circuit is especially designed to drive four 7-segment LED displays with decimal point by means of multiplexing between two pairs of digits. It features an I2C-Bus slave transceiver interface with the possibility to program four different SLAVE ADDRESSES, a POWER RESET flag, 16 current sink OUTPUTS, controllable by software up to 21 mA, two multiplex drive outputs for common anode segments, an on-chip multiplex oscillator, control bits to select static, dynamic and blank mode, and one bit for segment test. |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - SAA1064T |
| Part Package Code | SOIC |
| Package Description | Sop, Sop24,.4 |
| Pin Count | 24 |
| Additional Feature | Common-Anode |
| Data Input Mode | Serial |
| Display Mode | Segment |
| Input Characteristics | Standard |
| Interface IC Type | Led Display Driver |
| JESD-30 Code | R-PDSO-G24 |
| JESD-609 Code | e4 |
| Length | 15.4 Mm |
| Multiplexed Display Capability | Yes |
| Number of Digits/Characters | 4-Digit |
| Number of Functions | 1 |
| Number of Segments | 16 |
| Number of Terminals | 24 |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min | -40 °C |
| Output Characteristics | Totem-Pole |
| Output Polarity | TRUE |
| Package Body Material | Plastic/Epoxy |
| Package Code | SOP |
| Package Equivalence Code | SOP24,.4 |
| Package Shape | Rectangular |
| Package Style | Small Outline |
| Qualification Status | Not Qualified |
| Seated Height-Max | 2.65 Mm |
| Supply Current-Max | 14 Ma |
| Supply Voltage-Max | 15 V |
| Supply Voltage-Min | 4.5 V |
| Supply Voltage-Nom | 5 V |
| Surface Mount | Yes |
| Technology | Bipolar |
| Temperature Grade | Industrial |
| Terminal Finish | Nickel Palladium Gold |
| Terminal Form | Gull Wing |
| Terminal Pitch | 1.27 Mm |
| Terminal Position | Dual |
| Width | 7.5 Mm |
