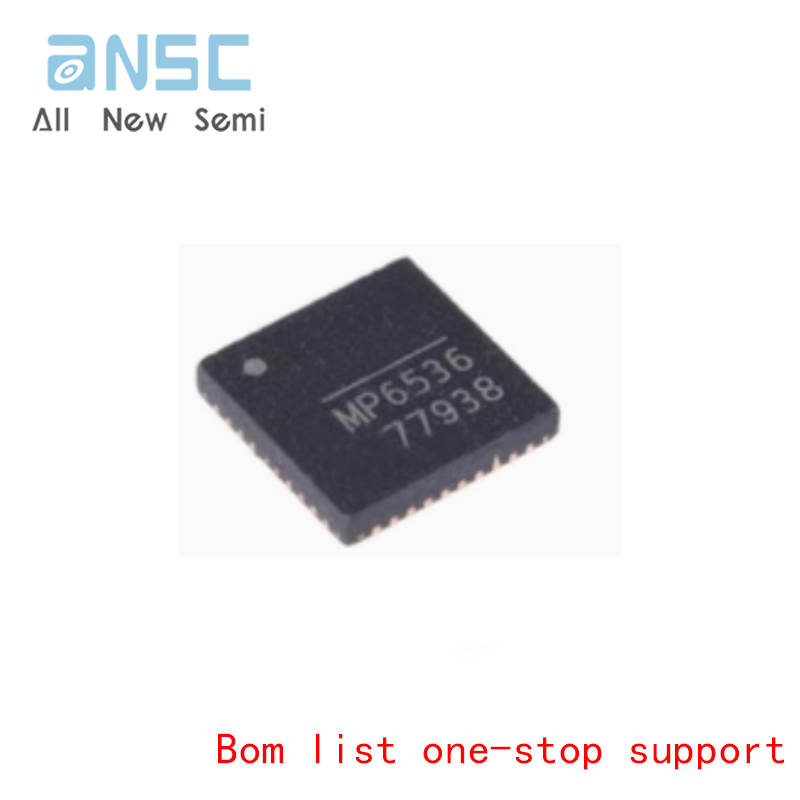

MP6536 26V, 5.5A 3-Channel Half-Bridge Driver

Package Condition
QFN
Datasheet

Product Descriptions

The MP6536 is a 3-channel half-bridge driver IC intended to drive a 3-phase brushless DC motor.

The MP6536 features a low-current shutdown mode, standby mode, input under-voltage protection, current limit, thermal shutdown, and fault flag signal output. All channels of the drivers interface with standard logic signals.

The MP6536 is available in a 40 lead QFN 5mmx5mm package.

Product Features

 5V to 26V VDD

 ±5.5A Peak Current Output

 Up to 1MHz PWM Frequency

 Protected Integrated Power 0.14Ω Switches

 10ns Switch Dead Time

 All Switches Current Limited

 Internal Under-Voltage Protection

 Internal Thermal Protection

 Short-Circuit Protection

 Fault Output Flag

Product Applications

 3-Phase BLDC Motor Drive
