Product Introduction

IP5566 is a multi-functional power management SOC for total solution on wireless charging Power Bank. It also integrates with booster converter, lithium battery charging management, battery level indicators and wireless charging transmitter controller.

IP5566 is highly integrated with abundant functions, which makes the total solution size minimized and BOM costed down.

IP5566 requires only one inductor to achieve buck and boost functions, and can support low-cost inductors and capacitors

The synchronous boost system of IP5566 provides rated 3A output current with conversion efficiency up to 93 PERCENT. When there is no load, it will automatically enter the sleep state, and the static current will drop to less than 150uA.

IP5566’s switch charging system supplies 3A (Type-C port) or 2A(micro-B port) charging current with charging efficiency up to 92 PERCENT. According to the IC temperature and input voltage, IP5566 can intelligently adjust charging current.

IP5566 is integrated with 5W wireless charging transmitter controller, compatible with the latest standard of WPC Qi v1.2.4. It is also integrated with full-bridge driver of wireless charging module, voltage & current two-way ASK communication demodulation module.

Products Features

 Charge /discharge with synchronous switch

 Charge /discharge with 3A current by synchronous switch

 Up to 93 PERCENT boost efficiency

 Up to 92 PERCENT charging efficiency

 Built-in power path management supports charging and discharging at the same time

 Supports line compensation

 Charge

 Adjusts charging current automatically to adapt to different load capacity adapters

 Supports TYPEC port 3A, MICRO B port 2A charging current

 Supports 4.20V, 4.30V 4.35V, 4.40V batteries

 5W Wireless charging transmitter

 Compatible with WPC v1.2.4 protocol

 H bridge MOS driver

 Internal voltage/current demodulation

 Supports FOD foreign body detection

 Indicators

 Supports 4/3/2/1 LED power indicators and 2/1 wireless charging status indicators

 Others

 14-bit ADC

 Built-in illuminator drive

 Automatically load insertion and removal detection

 Supports Type-C DRP protocol and C port input/output

 Supports mobile phone charging current intelligent identification DCP protocol

 Low-power dissipation

 Enter standby mode automatically with light load

 Standby power consumption is less than 150µA

 Simplified BOM

 Integrated switch power MOSFETs

 Single inductor for charging and discharging

 Multiple protection, high reliability

 Output over current, over voltage and short circuit protection

 Input over voltage protection

 Battery over charge, over discharge and over current protection

 Over temperature protection

 Vin transient withstand up to 16V

 In-depth customization

 Flexible and low-cost customized program

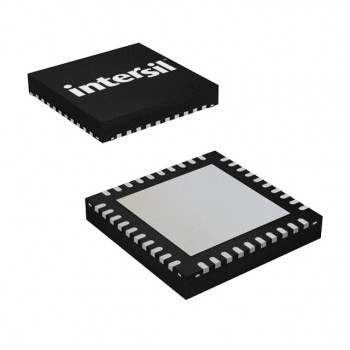

 Package: 6mm*6mm, 0.5mm pitch, QFN40

Products Applications

 Power Bank with Wireless Charging

 Bluetooth Speaker with Wireless Charging
