Hot sale Original AD9240ASZ IC ADC 14BIT 44MQFP Analog to Digital Converter 1 Input 1 Pipelined 44-MQFP

Manufacturer Product Number
AD9240ASZ
Description

Original AD9240ASZ IC ADC 14BIT 44MQFP Analog to Digital Converter 1 Input 1 Pipelined 44-MQFP Differential, Single Ended


Package Condition
Tray
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Description

The AD9240ASZ is a 14-bit, 10-MSPS, pipelined, parallel-output, single-channel, analog-to-digital converter (ADC) . This high-performance ADC is designed for a wide range of applications, including data acquisition, test and measurement, and industrial control.


Product Features

· 14-bit resolution with a signal-to-noise ratio (SNR) of 78.5 dB

· 10-MSPS sampling rate

· Pipelined architecture for high-speed conversion

· Parallel data interface for fast data transfer

· Single-ended and differential input options

· External and internal reference options

· Operating temperature range of -55°C to 85°C

· RoHS3 compliant and lead-free


Product Applications


· Data acquisition systems

· Test and measurement equipment

· Industrial control systems

· Medical equipment

· Aerospace and defense applications


Product Description


TypeDescription
ANSC PART#ANSC - AD9240ASZ
CategoryIntegrated Circuits (ICs)
Data Acquisition
Analog to Digital Converters (ADC)
ManufacturerOriginal
Series-
PackagingTray
Part StatusActive
Number of Bits14
Sampling Rate (Per Second)10M
Number of Inputs1
Input TypeDifferential, Single Ended
Data InterfaceParallel
ConfigurationS/H-ADC
Ratio - S/H:ADC1:01
Number of A/D Converters1
ArchitecturePipelined
Reference TypeExternal, Internal
Voltage - Supply, Analog5V
Voltage - Supply, Digital5V
Features-
Operating Temperature-55°C ~ 85°C
Package / Case44-QFP
Supplier Device Package44-MQFP (10x10)
Mounting TypeSurface Mount
Base Product NumberAD9240

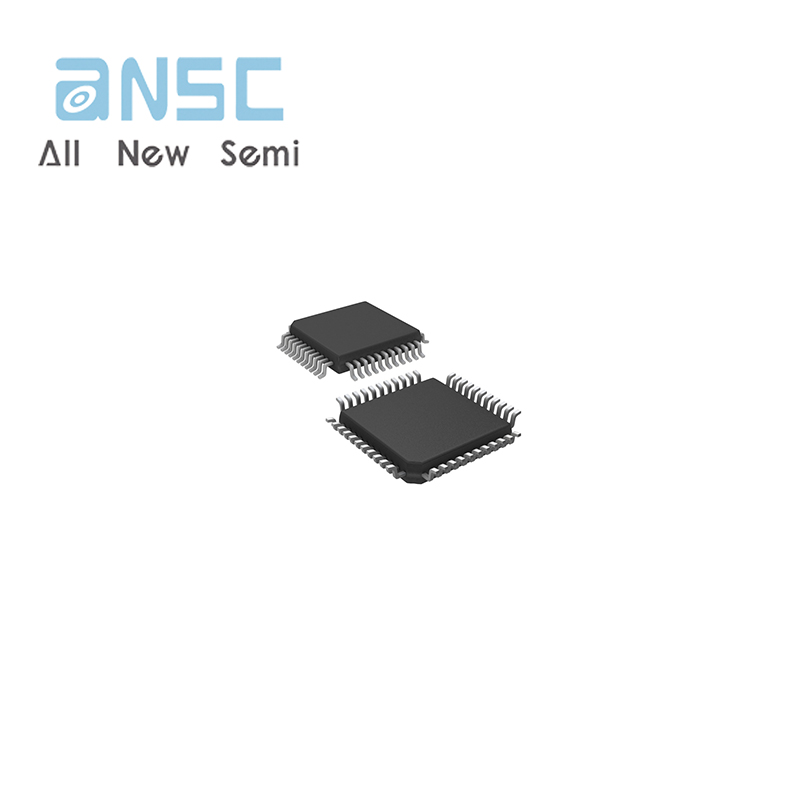

Product Photos

AD9240ASZ_1

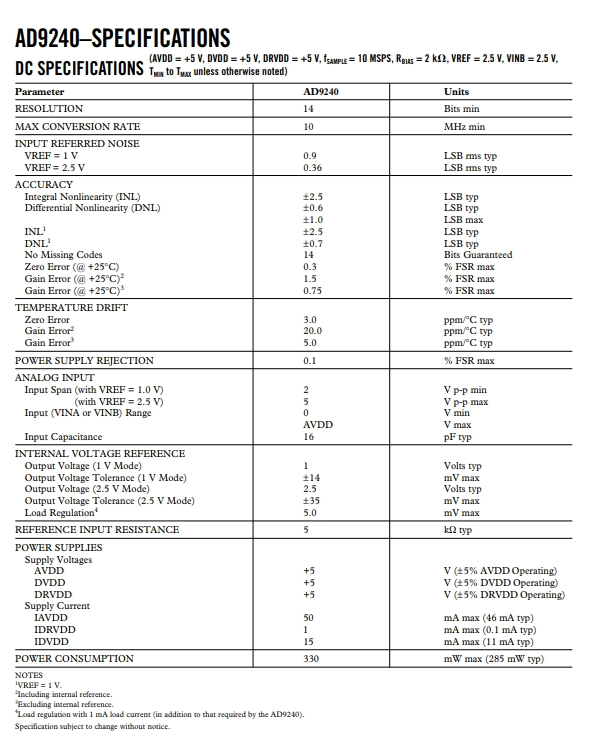

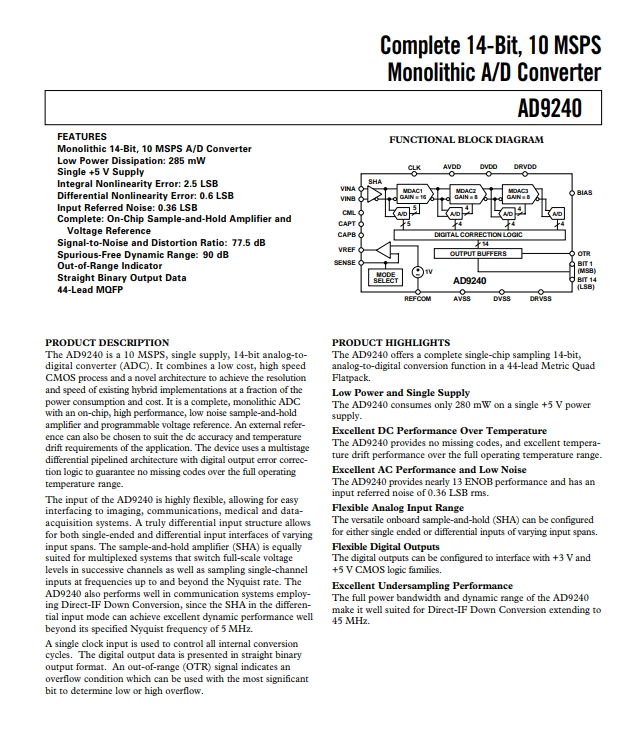

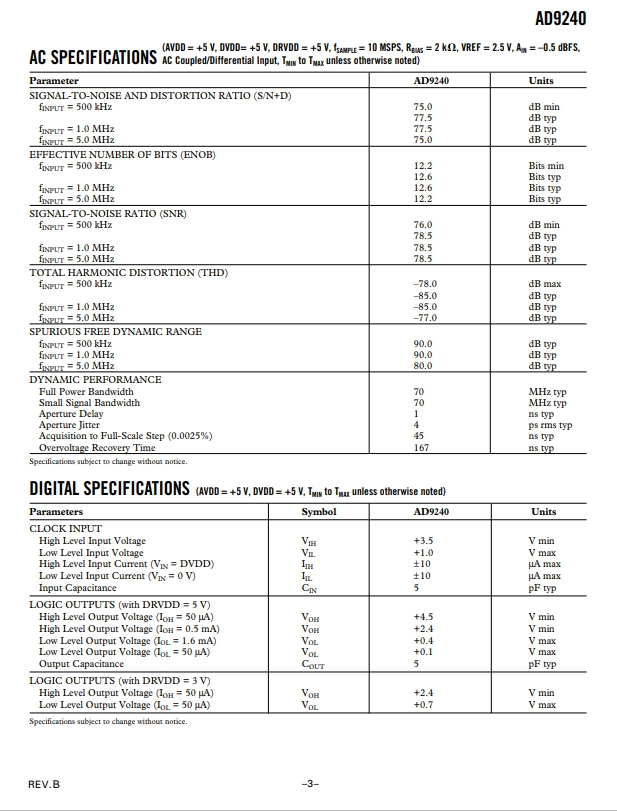

Product datasheet

For more information, please download
