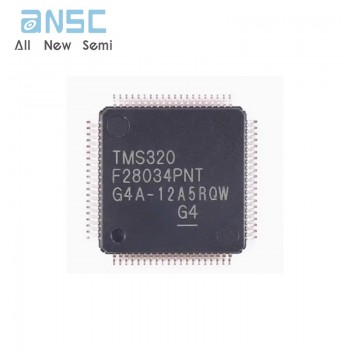

Original TMS320F28034PNT Piccolo Microcontrollers IC 32-Bit Single-Core 60MHz 128KB FLASH 80-LQFP

Product Descriptions

C2000™ 32-bit microcontrollers are optimized for processing, sensing, and actuation to improve closed-loop performance in real-time control applications such as industrial motor drives; solar inverters and digital power; electrical vehicles and transportation; motor control; and sensing and signal processing. The C2000 line includes the Premium performance MCUs and the Entry performance MCUs.

The F2803x family of microcontrollers provides the power of the C28x core and Control Law Accelerator (CLA) coupled with highly integrated control peripherals in low pin-count devices. This family is code-compatible with previous C28x-based code, and also provides a high level of analog integration.

An internal voltage regulator allows for single-rail operation. Enhancements have been made to the HRPWM to allow for dual-edge control (frequency modulation). Analog comparators with internal 10-bit references have been added and can be routed directly to control the PWM outputs. The ADC converts from 0 to 3.3V fixed full-scale range and supports ratio-metric VREFHI/VREFLO references. The ADC interface has been optimized for low overhead and latency.

To learn more about the C2000 MCUs, visit the C2000™ real-time control MCUs page.

Product Features

• High-efficiency 32-bit CPU (TMS320C28x)

– 60MHz (16.67ns cycle time)

– 16 × 16 and 32 × 32 MAC operations

– 16 × 16 dual MAC

– Harvard bus architecture

– Atomic operations

– Fast interrupt response and processing

– Unified memory programming model

– Code-efficient (in C/C++ and Assembly)

• Programmable Control Law Accelerator (CLA)

– 32-bit floating-point math accelerator

– Executes code independently of the main CPU

• Endianness: Little endian

• JTAG boundary scan support

– IEEE Standard 1149.1-1990 Standard Test Access Port and Boundary Scan Architecture

• Low cost for both device and system:

– Single 3.3V supply

– No power sequencing requirement

– Integrated power-on reset and brown-out reset

– Low power

– No analog support pins

• Clocking:

– Two internal zero-pin oscillators

– On-chip crystal oscillator and external clock input

– Watchdog timer module

– Missing clock detection circuitry

• Up to 45 individually programmable, multiplexed GPIO pins with input filtering

• Peripheral Interrupt Expansion (PIE) block that supports all peripheral interrupts

• Three 32-bit CPU timers

• Independent 16-bit timer in each Enhanced Pulse Width Modulator (ePWM)

Product Applications

• Air conditioner outdoor unit

• Door operator drive control

• DC/DC converter

• Inverter & motor control

• On-board (OBC) & wireless charger

• Automated sorting equipment

• Textile machine

• Welding machine

• AC charging (pile) station

• DC charging (pile) station

• EV charging station power module

• Wireless vehicle charging module

• Energy storage power conversion system (PCS)

• Micro inverter

• Solar power optimizer

• String inverter

• AC drive control module

• Linear motor segment controller

• Servo drive power stage module

• AC-input BLDC motor drive

• DC-input BLDC motor drive

• Industrial AC-DC

• Three phase UPS

• Merchant network & server PSU

• Merchant telecom rectifiers
