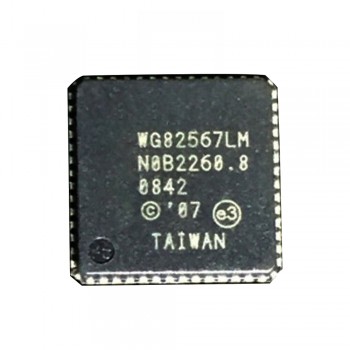

Hot selling WG82567LM GbE Physical Layer Transceiver IC

Product Descriptions

The 82567 is a single port GbE Physical Layer Transceiver (PHY) that connects to its  Media Access Controller (MAC) through a dedicated interconnect. The 82567 is based  on Intel's GbE PHY technology, and supports operation at data rates of 10/100/1000  Mb/s. The physical layer circuitry provides a standard IEEE 802.3 Ethernet interface for  10BASE-T, 100BASE-TX, and 1000BASE-T applications (802.3, 802.3u, and 802.3ab).

The 82567 operates with the ICH9/9M/10 chipset that incorporates and integrates the  MAC, which is referred to as the ICH9/9M/10 LAN.

The 82567 is packaged in a small footprint QFN package. The package size is 8 mm x 8  mm with a pin-to-pin spacing of 0.5 mm, making it attractive for small form-factor  platforms.

The 82567 interfaces with its MAC through two interfaces: Gigabit LAN Connect  Interface (GLCI) and LAN Connect Interface (LCI). The GLCI is a high-speed proprietary  serial interface. The LCI is a low-speed proprietary parallel bus. The 82567 operates  using both interfaces; the GLCI for 1000 Mb/s traffic and LCI for all other traffic types.

Product Features

 Reduced power consumption during normal  operation and power down modes

 IEEE 802.3 Ethernet interface for 1000BASE-T,  100BASE-TX, and 10BASE-T applications  (802.3, 802.3u, and 802.3ab) conformance

 Supports up to 9 kB jumbo frames (full  duplex)

 Supports carrier extension (half duplex)

 Auto-negotiation with support for next page

 Smart speed operation, for automatic speed  reduction on faulty cable plants

 Automatic MDI crossover capable

 PMA loopback capable (No echo cancel)

 Advanced power management:

— Low power link up

— Auto Connect Battery Saver - link  disconnect

 Advanced cable diagnostics:

— TDR

— Channel frequency response

 Extended configuration load sequence

 Automatic resolution of FDX/HDX mismatch in  10/100 forced configurations

 Dual interconnect between MAC and PHY:

— LCI for 10/100 Mb/s operation control traffic

— GLCI for 1000 Mb/s operation

 Three LED outputs

 Multiple voltage regulation modes:

— External voltage regulation

— Fully integrated linear regulator (nominal  1.05 V, programmable)

— Discrete linear voltage regulator (nominal  1.8 V-1.9 V)

 Supported ICH Integrated MAC Features:

— Linksec (ICH10 only)

— Manageability: vPro Compatible

​— Performance:

•RSS Support

•Checksum offload
