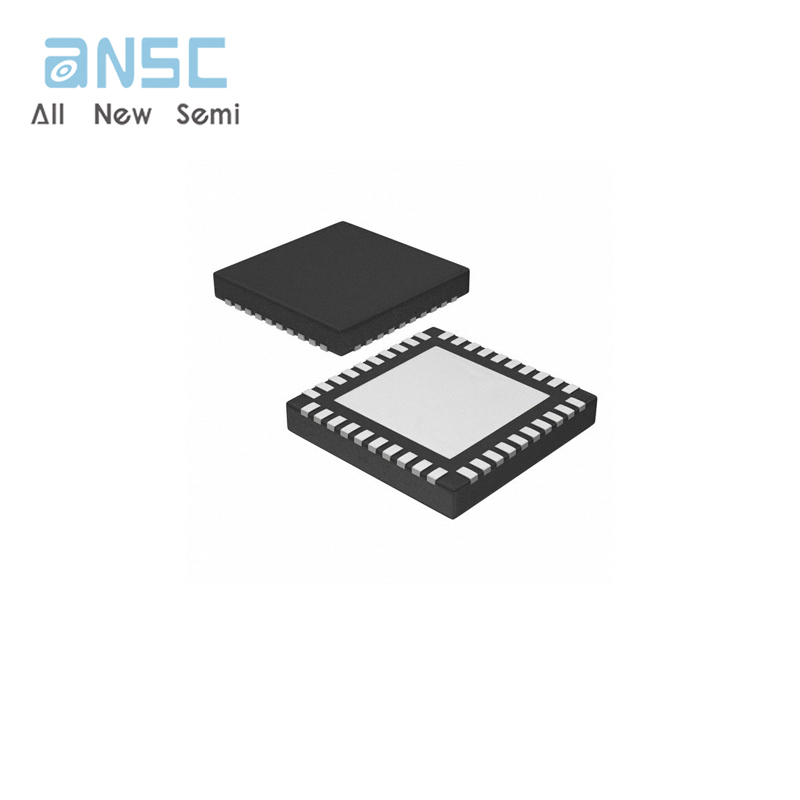

Hot sale Original TLE7184F Signal Circuits Brushless DC Motor Controller PQCC48 GREEN PLASTIC Motion Control Electronics
Manufacturer Product Number
TLE7184F
Description
Original TLE7184F Signal Circuits Brushless DC Motor Controller PQCC48 GREEN PLASTIC, VQFN-48 Motion Control Electronics
Package Condition
Tape & Reel (TR)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
| Parameters Supply Voltage: 5.5V~32V Continuous Current: 1.2A Peak Current: 3A Operating Temperature Range: -40°C~150°C Package Type: SOIC-8 Output Type: High Side Switch Minimum On-Resistance: 0.9Ω Protection Function: Short Circuit Protection, Over-temperature shut-off, under-voltage lockout |
| Characteristics TLE7184F is a high-side driver chip designed for automotive applications. The chip has excellent thermal management performance, and the integrated over-temperature protection mechanism can automatically shut down the output when the chip temperature is too high, thus avoiding damage. TLE7184F supports a wide range of input voltages (5.5V to 32V), making it highly adaptable and ideal for use in automotive electronics. In addition, it also integrates a short-circuit protection function to effectively prevent chip damage caused by load failure. The chip's quiescent current is very low, which helps reduce the power consumption of the system, especially suitable for scenarios with high energy efficiency requirements. The chip is available in a small SOIC-8 package, which is easy to deploy and install, while providing excellent electrical performance and mechanical stability. |
| Application: TLE7184F widely used in the field of automotive electronics, the main uses include: LED lighting driver in the car Relay drive Small DC motor control Power window system Seat adjustment module Other application scenarios that require high-side switch drive |
Actual image of the product
Payment&Transportation
Official Certificate&Certificate
Standard packaging
Multiple product supply
Welcome to visit our company
Warehouse Real Shot
