Professional supply Integrated circuit XCZU5EG-1SFVC784I IC SOC CORTEX-A53 256200 Cells 20nm Technology 0.85V 784-FCBGA

Product Descriptions

The XA Zynq™ UltraScale+™ MPSoC family is based on the UltraScale™ MPSoC architecture. This family of  products integrates a feature-rich 64-bit quad-core Arm® Cortex™-A53 and dual-core Arm Cortex-R5  based processing system (PS) and programmable logic (PL) UltraScale architecture in a single device. Also  included are on-chip memory, multiport external memory interfaces, and a rich set of peripheral  connectivity interfaces.

Product Features

• Quad-core

• CPU frequency: Up to 1.2GHz

• Extendable cache coherency

• Armv8-A Architecture

  o 64-bit or 32-bit operating modes

  o TrustZone security

  o A64 instruction set in 64-bit mode,

A32/T32 instruction set in 32-bit mode

• NEON Advanced SIMD media-processing engine

• Single/double precision Floating Point Unit (FPU)

• CoreSight™ and Embedded Trace Macrocell (ETM)

• Accelerator Coherency Port (ACP)

• AXI Coherency Extension (ACE)

• Power island gating for each processor core

• Timer and Interrupts

  o Arm Generic timers support

  o Two system level triple-timer counters

  o One watchdog timer

  o One global system timer

• Caches

  o 32KB Level 1, 2-way set-associative instruction cache with parity (independent for each CPU)

  o 32KB Level 1, 4-way set-associative data cache with ECC (independent for each CPU)

  o 1MB 16-way set-associative Level 2 cache with ECC (shared between the CPUs)

  Specifications

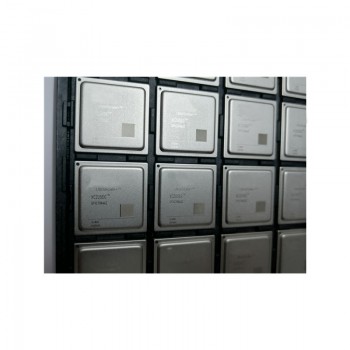

Actual product photos
