Hot-selling and scarce HY27US08561A-TPCB 256Mbit (32Mx8bit / 16Mx16bit) NAND Flash TSOP48

Product Descriptions

The HY27(U/S)S(08/16)561A series is a 32Mx8bit with spare 8Mx16 bit capacity. The device is offered in 1.8V Vcc Power Supply and in 3.3V Vcc Power Supply.

Its NAND cell provides the most cost-effective solution for the solid state mass storage market.

The memory is divided into blocks that can be erased independently so it is possible to preserve valid data while old data is erased.

The device contains 2048 blocks, composed by 32 pages consisting in two NAND structures of 16 series connected Flash cells.

A program operation allows to write the 512-byte page in typical 200us and an erase operation can be performed in typical 2ms on a 16K-byte(X8 device) block.

Product Features

HIGH DENSITY NAND FLASH MEMORIES

- Cost effective solutions for mass storage applications

NAND INTERFACE

- x8 or x16 bus width.

- Multiplexed Address/ Data

- Pinout compatibility for all densities

SUPPLY VOLTAGE

- 3.3V device: VCC = 2.7 to 3.6V : HY27USXX561A

- 1.8V device: VCC = 1.7 to 1.95V : HY27SSXX561A

Memory Cell Array

= (512+16) Bytes x 32 Pages x 2,048 Blocks

= (256+8) Words x 32 pages x 2,048 Blocks

PAGE SIZE

- x8 device : (512 + 16 spare) Bytes : HY27(U/S)S08561A

- x16 device: (256 + 8 spare) Words : HY27(U/S)S16561A

BLOCK SIZE

- x8 device: (16K + 512 spare) Bytes

- x16 device: (8K + 256 spare) Words

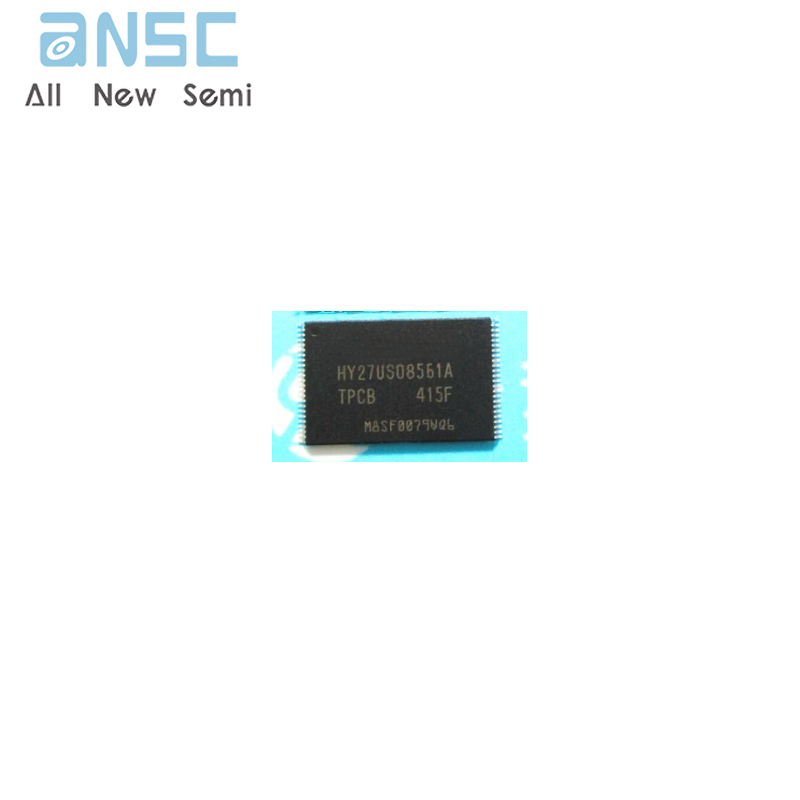

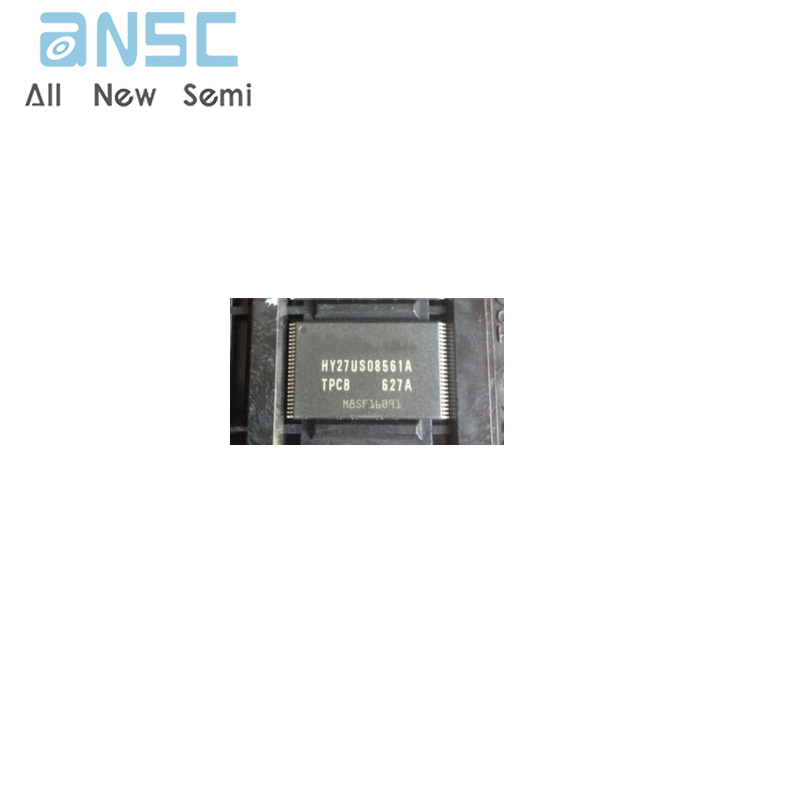

Product Photos

For more product information, please download the PDF
