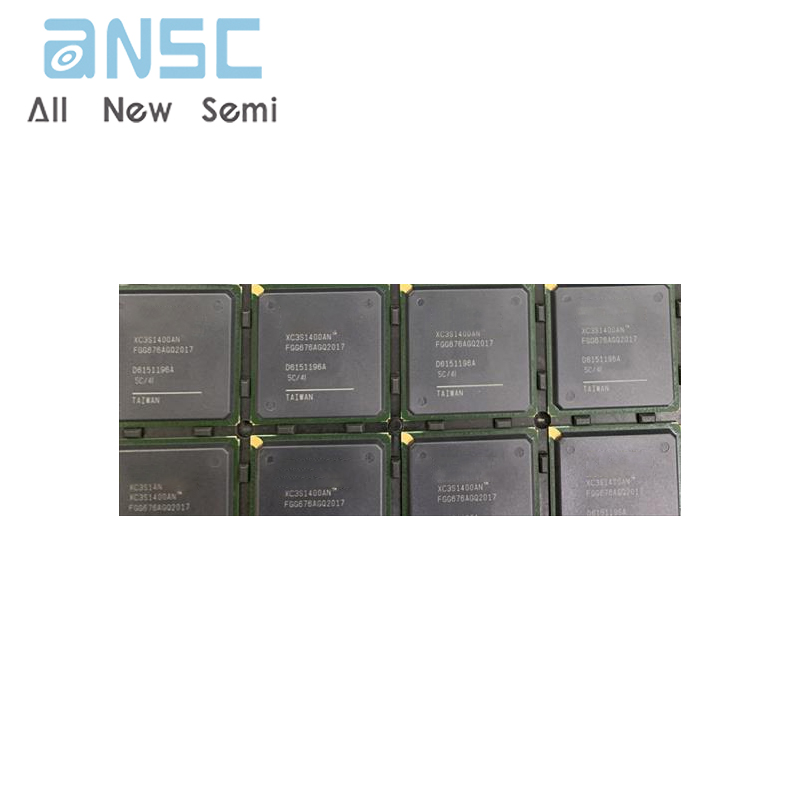

Hot-selling and scarce XC3S1400AN-4FG676C Field Programmable Gate Array IC 676-BGA spot stock

Product Descriptions

The Spartan®-3AN FPGA family combines the best attributes of a  leading edge, low cost FPGA with nonvolatile technology across a  broad range of densities. The family combines all the features of  the Spartan-3A FPGA family plus leading technology in-system  Flash memory for configuration and nonvolatile data storage.

The Spartan-3AN FPGAs are part of the Extended Spartan-3A  family, which also includes the Spartan-3A FPGAs and the higher  density Spartan-3A DSP FPGAs. The Spartan-3AN FPGA family  is excellent for space-constrained applications such as blade  servers, medical devices, automotive infotainment, telematics,  GPS, and other small consumer products. Combining FPGA and  Flash technology minimizes chip count, PCB traces and overall  size while increasing system reliability.

The Spartan-3AN FPGA internal configuration interface is  completely self-contained, increasing design security. The family  maintains full support for external configuration. The Spartan-3AN  FPGA is the world’s first nonvolatile FPGA with MultiBoot,  supporting two or more configuration files in one device, allowing  alternative configurations for field upgrades, test modes, or  multiple system configurations.

Product Features

• The new standard for low cost nonvolatile FPGA solutions

• Eliminates traditional nonvolatile FPGA limitations with the advanced 90 nm Spartan-3A device feature set

• Memory, multipliers, DCMs, SelectIO, hot swap, power management, etc.

• Integrated robust configuration memory

• Saves board space

• Improves ease-of-use

• Simplifies design

• Reduces support issues

• Plentiful amounts of nonvolatile memory available to the user

• Up to 11+ Mb available

• MultiBoot support

• Embedded processing and code shadowing

• Scratchpad memory

• Robust 100K Flash memory program/erase cycles

• 20 years Flash memory data retention

• Security features provide bitstream anti-cloning protection

Product Specification

Product Photos

、

For more product information, please download the PDF
