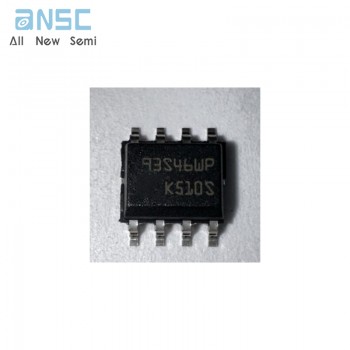

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce M93S46-WMN6TP serial MICROWIRE bus EEPROM with write protection SOP8 spot stock
Manufacturer Product Number
M93S46-WMN6TP
Description
M93S46-WMN6TP serial MICROWIRE bus EEPROM with write protection SOP8 spot stock
Package Condition
Tape & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
• Compatible with MICROWIRE bus serial interface
• Memory array
− 1 Kbit, 2 Kbit or 4 Kbit of EEPROM
− Organized by word (16b)
− Page = 4 words
• Write
− Byte write within 5 ms
− Page write within 5 ms
− Ready/busy signal during programming
• User defined write protected area
• High-speed clock: 2 MHz
• Single supply voltage:
− 2.5 V to 5.5 V
• Operating temperature range:
• -40 °C up to +85 °C.
• Enhanced ESD protection
• More than 4 million write cycles
• More than 200-year data retention
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-M93S46-WMN6TP |
| Category | Integrated Circuits (ICs) |
| Memory | |
| Memory | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| DigiKey Programmable | Verified |
| Memory Type | Non-Volatile |
| Memory Format | EEPROM |
| Technology | EEPROM |
| Memory Size | 1Kbit |
| Memory Organization | 64 x 16 |
| Memory Interface | SPI |
| Clock Frequency | 2 MHz |
| Write Cycle Time - Word, Page | 5ms |
| Voltage - Supply | 2.5V ~ 5.5V |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | M93S46 |

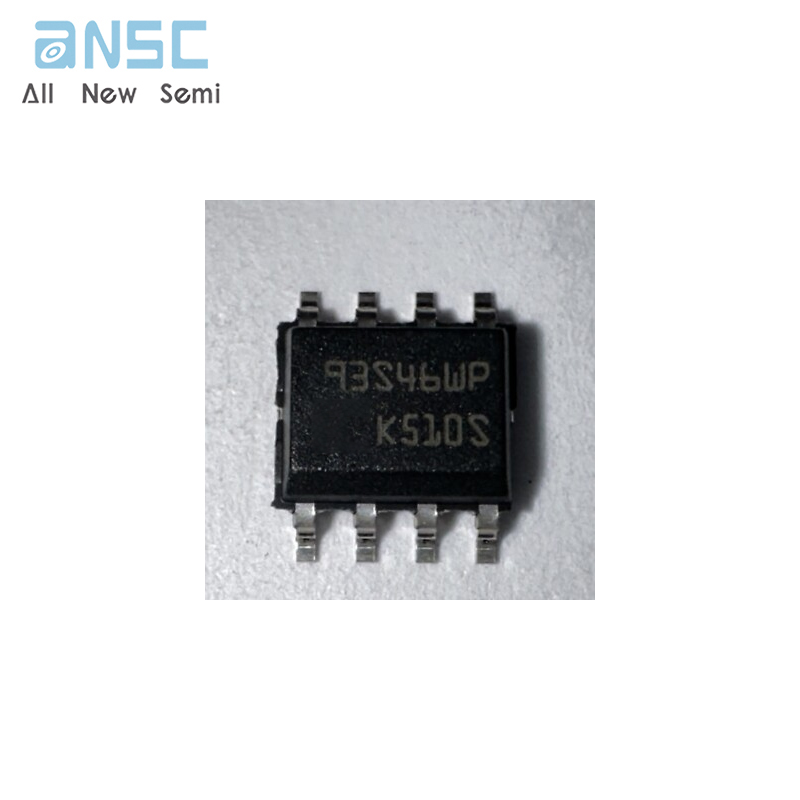

Product Photos
For more product information, please download the PDF
