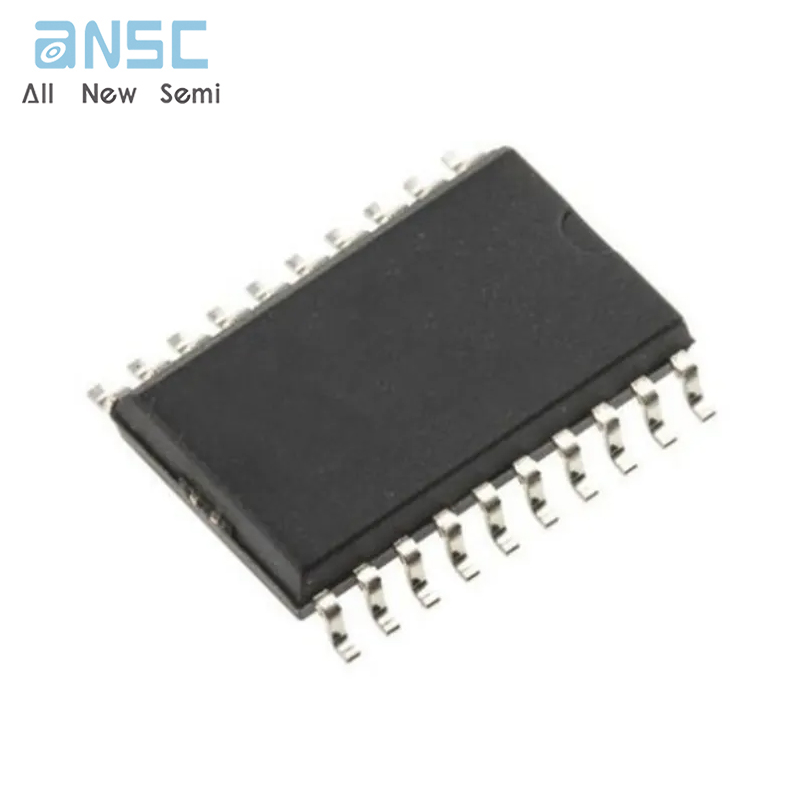

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce 74FCT244ATSOG FAST CMOS OCTAL BUFFER/LIN DRIVER IC SOIC-20 spot stock
Manufacturer Product Number
74FCT244ATSOG
Description
74FCT244ATSOG FAST CMOS OCTAL BUFFER/LIN DRIVER IC SOIC-20 spot stock
Package Condition
Bulk
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The IDT octal buffer/line driver is built using an advanced dual metal CMOS technology. The FCT244Tis designed to be employed as a memory and address driver, clock driver, and bus-oriented transmitter/ receiver which provides improved board density.
Product Features
• Std., A, and C grades
• Low input and output leakage ≤1µA (max.)
• CMOS power levels
• True TTL input and output compatibility:
– VOH = 3 .3V (typ.)
– VOL = 0 .3V (typ.)
• High Drive outputs (-15mA IOH, 64mA IOL)
• Meets or exceeds JEDEC standard 18 specifications
• Military product compliant to MIL-STD-883, Class B and DESC listed (dual marked)
• Power off disable outputs permit "live insertion"
• Available in the following packages:
– Industrial: SOIC, SSOP, QSOP, TSSOP
– Military: CERDIP,LCC
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-74FCT244ATSOG |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Buffers, Drivers, Receivers, Transceivers | |
| Manufacturer | - |
| Series | 74FCT |
| Packaging | Bulk |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 2 |
| Number of Bits per Element | 4 |
| Output Type | 3-State |
| Current - Output High, Low | 15mA, 64mA |
| Voltage - Supply | 4.75V ~ 5.25V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SOIC |
| Base Product Number | 74FCT244 |
