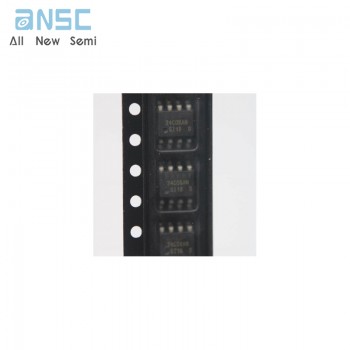

Hot-selling and scarce AT24C08AN-10SI-1.8 2-Wire Serial EEPROM SOP8 spot stock

Product Descriptions

The AT24C02A/04A/08A provides 2048/4096/8192 bits of serial electrically erasableand programmable read only memory (EEPROM) organized as 256/512/1024 wordsof 8 bits each . The device is optimized for use in many industrial and commercialapplications where low power and low voltage operation are essential . TheAT24C02A/04A/08A is available in space saving 8-pin PDIP, 8-pin, 14-pin SOIC, and8-pin TSSOP packages and is accessed via a 2-wire serial interface .  In addition, theentire family is available in 5.0V (4 .5V to 5.5V), 2.7V (2 .7V to 5.5V), 2.5V (2 .5V to5.5V) and 1.8V (1 .8V to 5.5V) versions .

Product Features

•  Write Protect Pin for Hardware Data Protection

– Utilizes Different Array Protection Compared to the AT24C02/04/08

•  Low Voltage and Standard Voltage Operation

– 5.0 (VCC = 4.5V to 5.5V)

– 2.7 (VCC = 2.7V to 5.5V)

– 2.5 (VCC = 2.5V to 5.5V)

– 1.8 (VCC = 1.8V to 5.5V)

•  Internally Organized 256 x 8 (2K), 512 x 8 (4K) or 1024 x 8 (8K)

•  2-Wire Serial Interface

•  Schmitt Trigger, Filtered Inputs for Noise Supperssion

•  Bidirectional Data Transfer Protocol

•  100 kHz (1.8V, 2.5V, 2.7V) and 400 kHz (5V) Compatibility

•  8-Byte Page (2K), 16-Byte Page (4K, 8K) Write Modes

•  Partial Page Writes Are Allowed

•  Self-Timed Write Cycle (10 ms max)

•  High Reliability

– Endurance: 1 Million Write Cycles

– Data Retention: 100 Years

– ESD Protection: >3000V

•  Automotive Grade and Extended Temperature Devices Available

•  8-Pin and 14-Pin JEDEC SOIC, 8-Pin PDIP, and 8-Pin TSSOP Packages

Product Specification

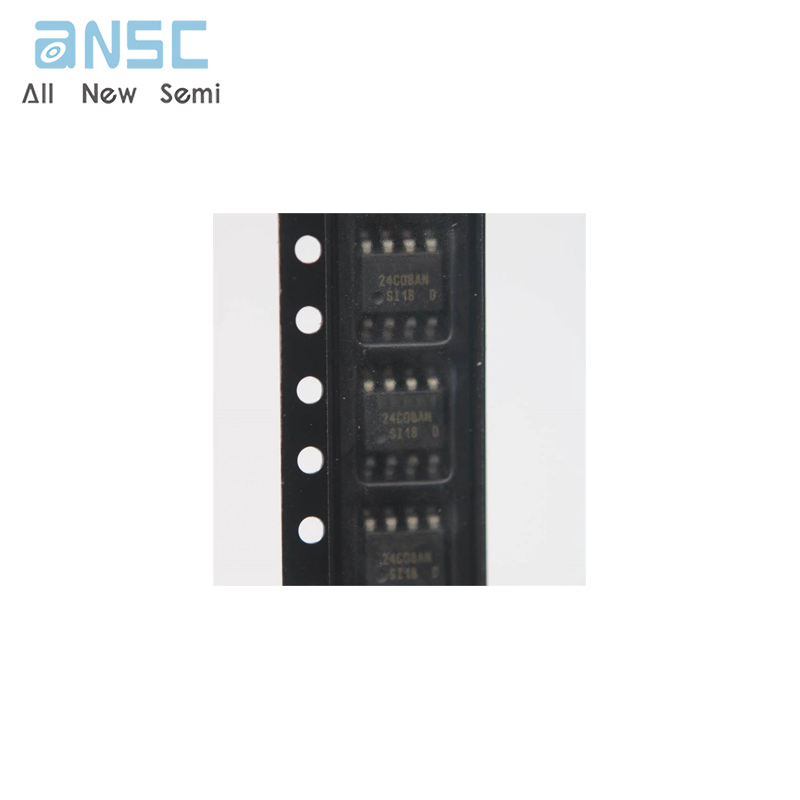

Product Photos

For more product information, please download the PDF
