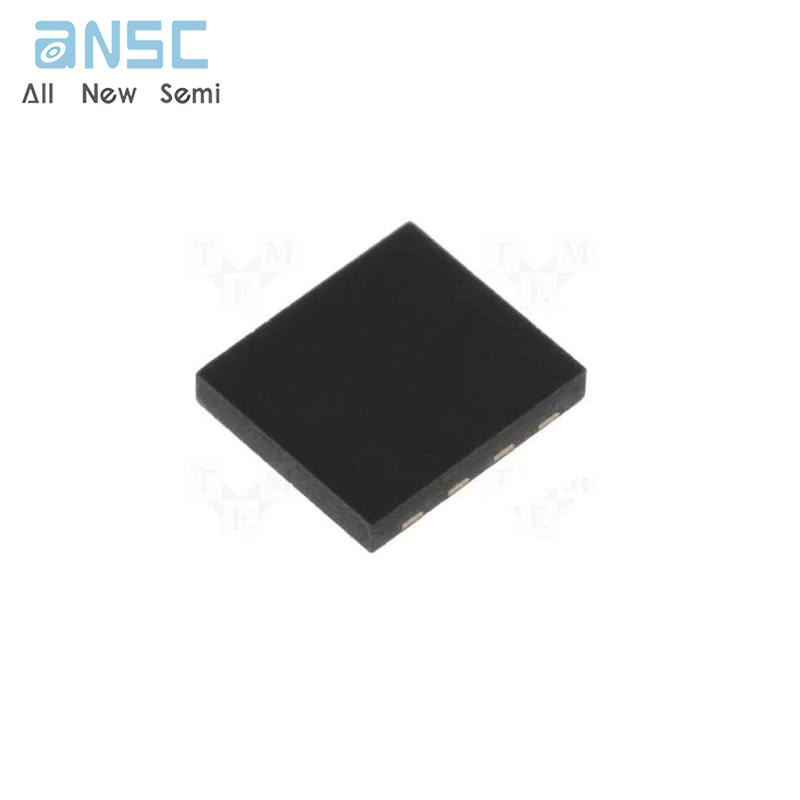

Hot-selling and scarce CY14B101Q2-LHXI Memory IC 1Mbit SPI 40MHz 8-DFN spot stock

Product Descriptions

The     CY14B101Q1/CY14B101Q2/CY14B101Q3combines a 1-Mbit nvSRAM with a nonvolatile element in eachmemory cell with serial SPI interface . The memory is organizedas  128  K words  of 8  bits  each .  The  embedded  nonvolatileelements incorporate the QuantumTrap technology, creating theworld’s most reliable nonvolatile memory. The SRAM providesinfinite  read  and  write  cycles,  while  the  QuantumTrap  cellprovides  highly  reliable  nonvolatile  storage  of  data .  Datatransfers  from  SRAM  to  the  nonvolatile  elements  (STOREoperation) takes place automatically at power-down (except forCY14B101Q1).On power-up,data is restored to the SRAM fromthe nonvolatile memory (RECALL operation). Both STORE andRECALL operations can also be initiated by the user through SPIinstruction .

Product Features

■ 1-Mbit nonvolatile static random access memory (nvSRAM)

❐ Internally organized as 128K × 8

❐ STORE to QuantumTrap nonvolatile elements initiated automatically on power-down (AutoStore) or by user using HSB pin (Hardware STORE) or SPI instruction (Software STORE)

❐ RECALL to SRAM initiated on power-up (Power-Up RECALL) or by SPI instruction (Software RECALL)

❐ Automatic STORE on power-down with a small capacitor (except for CY14B101Q1)

■ High reliability

❐ Infinite read, write , and RECALL cycles

❐ 1 million STORE cycles to QuantumTrap

❐ Data retention: 20 years

■ High speed serial peripheral interface (SPI)

❐ 40 MHz clock rate

❐ Supports SPI mode 0 (0, 0) and mode 3 (1, 1)

■ Write protection

❐ Hardware protection using Write Protect (WP) pin

❐ Software protection using Write Disable instruction

❐ Software block protection for 1/4,1/2, or entire array

■ Low power consumption

❐ Single 3 V +20%,–10% operation

❐ Average active current of 10 mA at 40 MHz operation

■ Industry standard configurations

❐ Industrial temperature

❐ CY14B101Q1 has identical pin configuration to industry standard 8-pin NV memory

❐ 8-pin dual flat no-lead (DFN) package and 16-pin small outline integrated circuit (SOIC) package

❐ Restriction of hazardous substances (RoHS) compliant
