Hot-selling and scarce M24C04-WMN6P EEPROM Memory IC 4Kbit I2C 400 kHz 900 ns 8-SOIC spot stock

Product Descriptions

​

The M24C04 is a 4-Kbit I2 C-compatible EEPROM (electrically erasable programmable memory) organized as 512× 8 bits.

The M24C04-W can be accessed with a supply voltage from 2.5 V to 5.5 V, the M24C04-R can be accessed with a supply voltage from 1.8 V to 5.5 V, and the M24C04-F can be accessed either with a supply voltage from 1.7 V to 5.5 V (over the full temperature range) or with an extended supply voltage from 1.6 V to 5.5 V under some restricted conditions.All these devices operate with a clock frequency of 400 kHz, over an ambient temperature range of -40 °C / +85 °C.

Product Features

•      Compatible with following I2 C bus modes:

–     400 kHz

–      100 kHz

•      Memory array:

–     4 Kbit (512 byte) of EEPROM

–     Page size: 16 byte

•      Single supply voltage:

–     M24C04-W: 2.5 V to 5.5 V

–     M24C04-R: 1.8 V to 5.5 V

–     M24C04-F:

1.7 V to 5.5 V

1.6 V to 5.5 V (under temperature constraint)

•      Write:

–     Byte write within 5 ms

–     Page write within 5 ms

•      Operating temperature range:

–     from -40 °C up to +85 °C

•      Random and sequential read modes

•      Write protect of the whole memory array

•      Enhanced ESD/latch-Up protection

•      More than 4 million write cycles

•      More than 200-years data retention

Product Specification

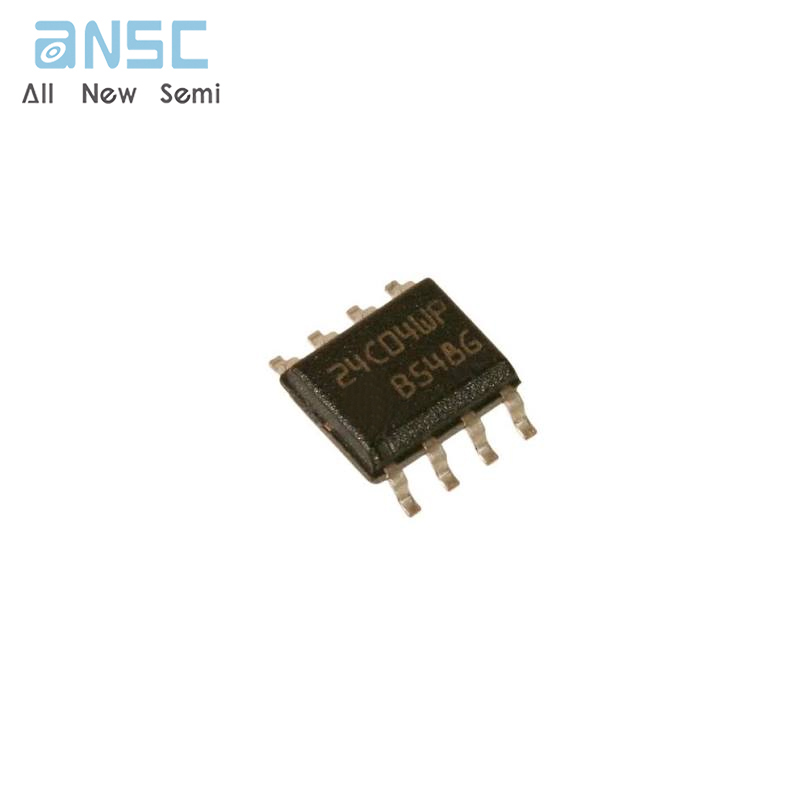

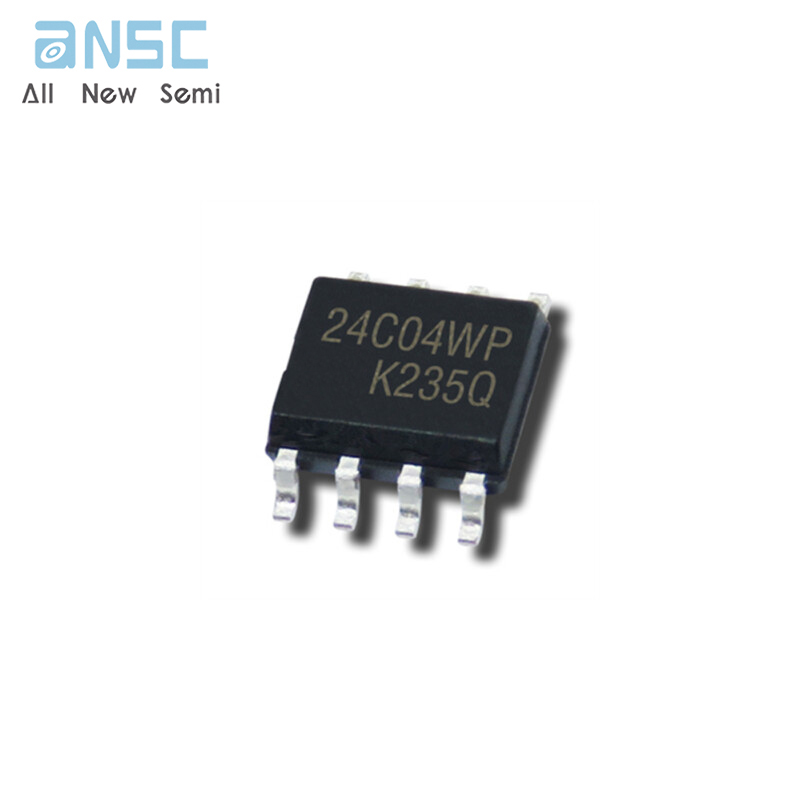

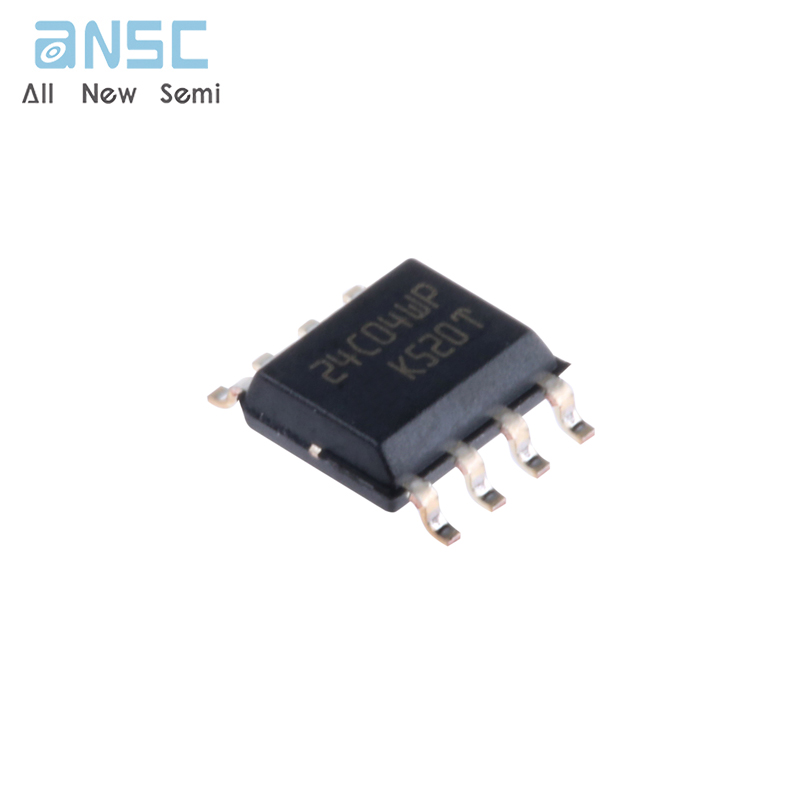

Product Photos

For more product information, please download the PDF
