ATTINY25V-10MU 8-bit Microcontroller with 2/4/8K Bytes In-System Programmable Flash QFN spot stock

Product Features

•  High Performance, Low Power AVR® 8-Bit Microcontroller

•  Advanced RISC Architecture

– 120 Powerful Instructions – Most Single Clock Cycle Execution

– 32 x 8 General Purpose Working Registers

– Fully Static Operation

•  Non-volatile Program and Data Memories

– 2/4/8K Byte of In-System Programmable Program Memory Flash (ATtiny25/45/85)

Endurance: 10,000 Write/Erase Cycles

– 128/256/512 Bytes In-System Programmable EEPROM (ATtiny25/45/85)

Endurance: 100,000 Write/Erase Cycles

– 128/256/512 Bytes Internal SRAM (ATtiny25/45/85)

– Programming Lock for Self-Programming Flash Program and EEPROM Data Security

•  Peripheral Features

– 8-bit Timer/Counter with Prescaler and Two PWM Channels

– 8-bit High Speed Timer/Counter with Separate Prescaler

2 High Frequency PWM Outputs with Separate Output Compare Registers

Programmable Dead Time Generator

– USI – Universal Serial Interface with Start Condition Detector

– 10-bit ADC

4 Single Ended Channels

2 Differential ADC Channel Pairs with Programmable Gain (1x, 20x)

Temperature Measurement

– Programmable Watchdog Timer with Separate On-chip Oscillator

– On-chip Analog Comparator

•  Special Microcontroller Features

– debugWIRE On-chip Debug System

– In-System Programmable via SPI Port

– External and Internal Interrupt Sources

– Low Power Idle, ADC Noise Reduction, and Power-down Modes

– Enhanced Power-on Reset Circuit

– Programmable Brown-out Detection Circuit

– Internal Calibrated Oscillator

•  I/O and Packages

– Six Programmable I/O Lines

– 8-pin PDIP, 8-pin SOIC and 20-pad QFN/MLF

•  Operating Voltage

– 1.8 - 5.5V for ATtiny25/45/85V

– 2.7 - 5.5V for ATtiny25/45/85

•  Speed Grade

– ATtiny25/45/85V: 0 - 4 MHz @ 1.8 - 5.5V, 0 - 10 MHz @ 2.7 - 5.5V

– ATtiny25/45/85: 0 - 10 MHz @ 2.7 - 5.5V, 0 - 20 MHz @ 4.5 - 5.5V

•  Industrial Temperature Range

•  Low Power Consumption

– Active Mode:

1 MHz, 1.8V: 300 μA

– Power-down Mode:

0.1μA at 1.8V

Product Specification

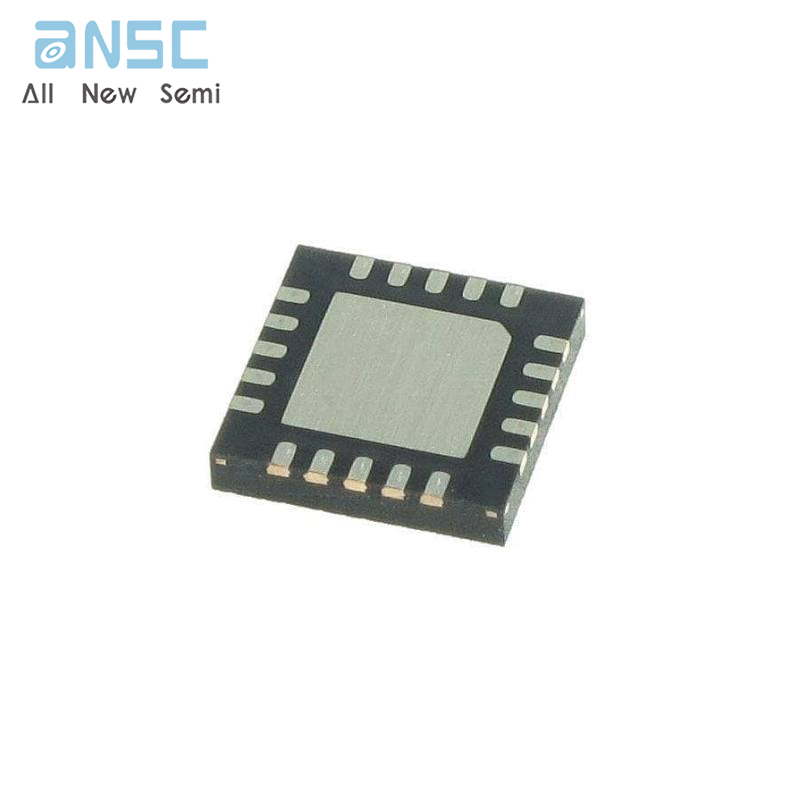

Product Photos

For more product information, please download the PDF
