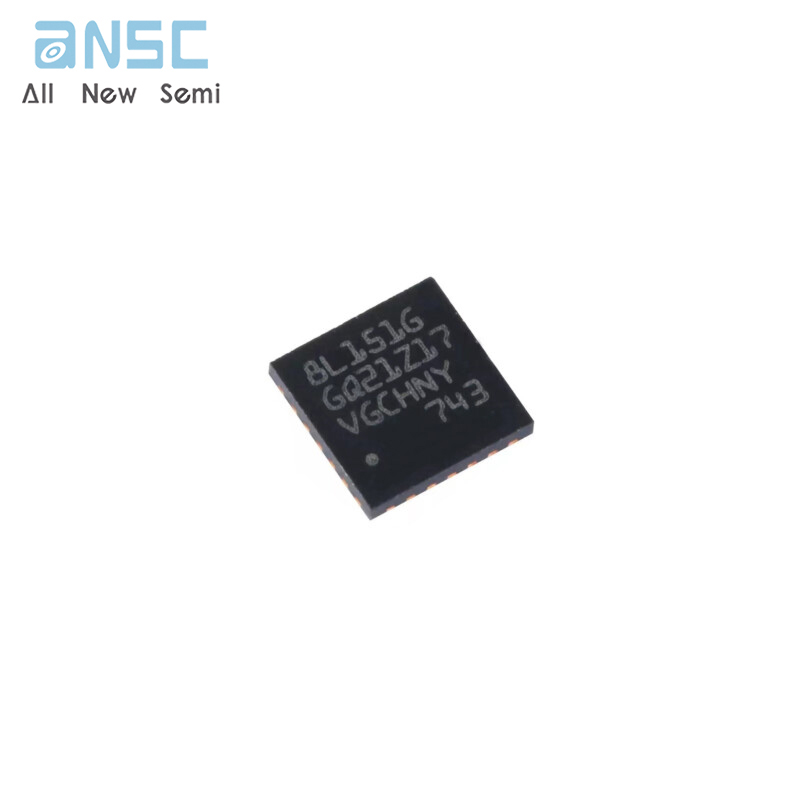

Hot-selling and scarce STM8L151K6U6TR Microcontroller IC 8-Bit 16MHz QFN spot stock

Product Features

■ Operating conditions

–   Operating power supply range 1.8 V to 3.6 V (down to 1.65 V at power down)

–   Temperature range: - 40 °C to 85 or 125 °C

■ Low power features

–   5 low power modes: Wait , Low power run (5 .4 µA), Low power wait (3 µA), Active-halt with RTC (1 µA), Halt (400 nA)

–   Dynamic consumption: 192 µA/MHz

–   Ultralow leakage per I/0: 50 nA

–   Fast wakeup from Halt: 5 µs

■ Advanced STM8 core

–   Harvard architecture and 3-stage pipeline

–   Max freq. 16 MHz, 16 CISC MIPS peak

–   Up to 40 external interrupt sources

■ Reset and supply management

–   Low power, ultrasafe BOR reset with 5 selectable thresholds

–   Ultralow power POR/PDR

–   Programmable voltage detector (PVD)

■ Clock management

–   1 to 16 MHz crystal oscillator

–   32 kHz crystal oscillator

–   Internal 16 MHz factory-trimmed RC

–   Internal 38 kHz low consumption RC

–   Clock security system

■ Low power RTC

–   BCD calendar with alarm interrupt

–   Auto-wakeup from Halt w/ periodic interrupt

■ LCD:up to 4x28 segments w/step-up converter

■ Memories

–   Up to 32 KB of Flash program memory and 1 Kbyte of data EEPROM with ECC, RWW

–   Flexible write and read protection modes

–   Up to 2 Kbytes of RAM

■ DMA

–   4 channels; supported peripherals: ADC, DAC, SPI, I2C, USART, timers

–   1 channel for memory-to-memory

■ 12-bit DAC with output buffer

Product Specification

Product Photos

​

For more product information, please download the PDF
