Hot-selling and scarce STM32F411CEY6TR Microcontroller IC BGA spot stock

Product Features

•    Dynamic Efficiency Line with BAM (Batch Acquisition Mode)

– 1.7 V to 3.6 V power supply

– -40°C to 85/105/125 °C temperature range

•    Core:ARM®32-bit Cortex®-M4 CPU with FPU,Adaptive real-time accelerator (ART Accelerator™)allowing 0-wait state execution from Flash memory,frequency up to 100 MHz,

memory protection unit,125 DMIPS/1 .25 DMIPS/MHz (Dhrystone 2 .1), and DSP instructions

•    Memories

– Up to 512 Kbytes of Flash memory

– 128 Kbytes of SRAM

•    Clock,reset and supply management

– 1.7 V to 3.6 V application supply and I/Os

– POR,PDR,PVD and BOR

– 4-to-26 MHz crystal oscillator

– Internal 16 MHz factory-trimmed RC

– 32 kHz oscillator for RTC with calibration

– Internal 32 kHz RC with calibration

•    Power consumption

– Run:100 µA/MHz (peripheral off)

– Stop (Flash in Stop mode,fast wakeup time):42 µA Typ @25C;65 µA max@25 °C

– Stop (Flash in Deep power down mode, slow wakeup time):down to 9 µA @25 °C;28 µA max @25 °C

– Standby:1.8 µA @25 °C /1.7 V without RTC;11 µA @85 °C @1 .7 V

– VBAT supply for RTC:1 µA @25 °C

•    1×12-bit,2.4 MSPS A/D converter:up to 16 channels

•    General-purpose DMA:16-stream DMA controllers with FIFOs and burst support

•    Up to 11 timers:up to six 16-bit,two 32-bit timers up to 100 MHz,each with up to four

IC/OC/PWM or pulse counter and quadrature (incremental)encoder input,two watchdog

timers (independent and window)and a SysTick timer

•    Debug mode

– Serial wire debug (SWD)&JTAG interfaces

– Cortex®-M4 Embedded Trace Macrocell™

•    Up to 81 I/O ports with interrupt capability

– Up to 78 fast I/Os up to 100 MHz

– Up to 77 5 V-tolerant I/Os

•    Up to 13 communication interfaces

– Up to 3 x I 2 C interfaces (SMBus/PMBus)

– Up to 3 USARTs (2 x 12.5 Mbit/s,1 x 6.25 Mbit/s),ISO 7816 interface,LIN, IrDA,modem control)

– Up to 5 SPI/I2Ss (up to 50 Mbit/s,SPI or I2S audio protocol)2,SPI2 and SPI3 with muxed full-duplex I S to achieve audio class accuracy via internal audio PLL or external clock

– SDIO interface (SD/MMC/eMMC)

– Advanced connectivity:USB 2.0 full-speed device/host/OTG controller with on-chip PHY

•    CRC calculation unit

•    96-bit unique ID

•    RTC:subsecond accuracy,hardware calendar

•   All packages (WLCSP49,LQFP64/100, UFQFPN48,UFBGA100)are ECOPACK®2

Product Specification

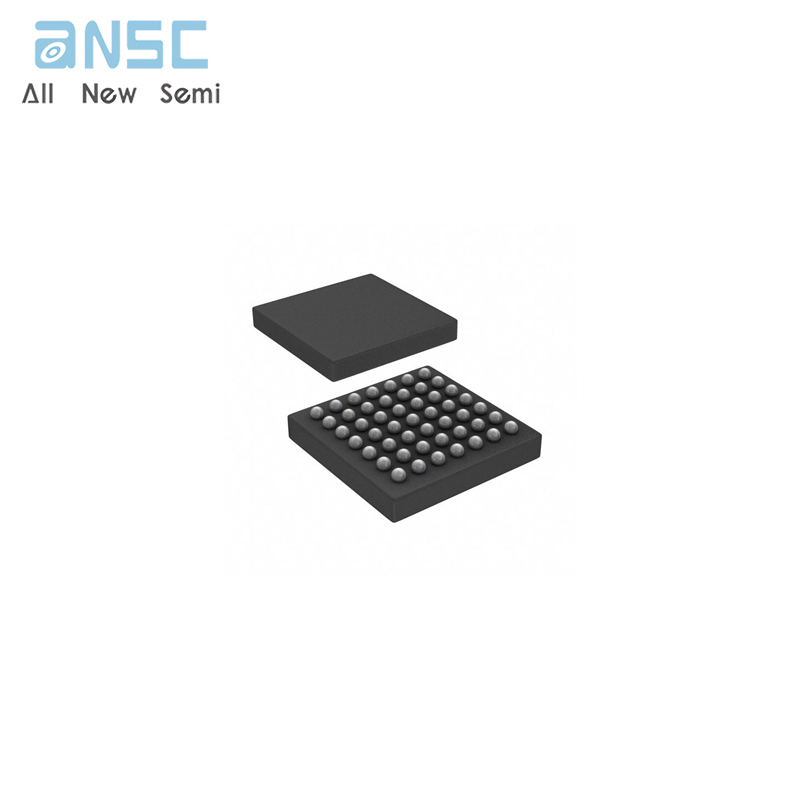

Product Photos

​

​

For more product information, please download the PDF
