Hot-selling and scarce MPC8560VT833LB Microprocessor IC BGA783 spot stock

Product Features

•    High-performance, 32-bit Book E–enhanced core that implements the Power Architecture

—  32-Kbyte L1 instruction cache and 32-Kbyte L1 data cache with parity protection . Caches can be locked entirely or on a per-line basis . Separate locking for instructions and data

—  Memory management unit (MMU) especially designed for embedded applications

—  Enhanced hardware and software debug support

—  Performance monitor facility (similar to but different from the MPC8560 performance monitor described in Chapter 18,“Performance Monitor.”

•    High-performance RISC CPM operating at up to 333 MHz

—  CPM software compatibility with previous PowerQUICC families

—  One instruction per clock

—  Executes code from internal ROM or instruction RAM

—  32-bit RISC architecture

—  Tuned for communication environments: instruction set supports CRC computation and bit manipulation .

—  Internal timer

—  Interfaces with the embedded e500 core processor through a 32-Kbyte dual-port RAM and virtual DMA channels for each peripheral controller

—  Handles serial protocols and virtual DMA .

—  Three full-duplex fast serial communications controllers (FCCs) that support the following protocols:

–  ATM protocol through UTOPIA interface (FCC1 and FCC2 only)

–  IEEE Std 802.3™/Fast Ethernet

–  HDLC

–  Totally transparent operation

—  Two multi-channel controllers (MCCs) that together can handle up to 256 HDLC/transparent channels at 64 Kbps each, multiplexed on up to 8 TDM interfaces

—  Four full-duplex serial communications controllers (SCCs) that support the following protocols:

–  High level/synchronous data link control (HDLC/SDLC)

–  LocalTalk (HDLC-based local area network protocol)

–  Universal asynchronous receiver transmitter (UART)

–   Synchronous UART (1x clock mode)

–  Binary synchronous communication (BISYNC)

–  Totally transparent operation

—  Serial peripheral interface (SPI) support for master or slave

—  I 2C bus controller

—  Time-slot assigner supports multiplexing of data from any of the SCCs and FCCs onto eight time-division multiplexed (TDM) interfaces. The time-slot assigner supports the following TDM formats:

–  T1/CEPT lines

–  T3/E3

–  Pulse code modulation (PCM) highway interface

–  ISDN primary rate

–  Freescale interchip digital link (IDL)

–  General circuit interface (GCI)

— User-defined interfaces

—  Eight independent baud rate generators (BRGs)

—  Four general-purpose 16-bit timers or two 32-bit timers

Product Specification

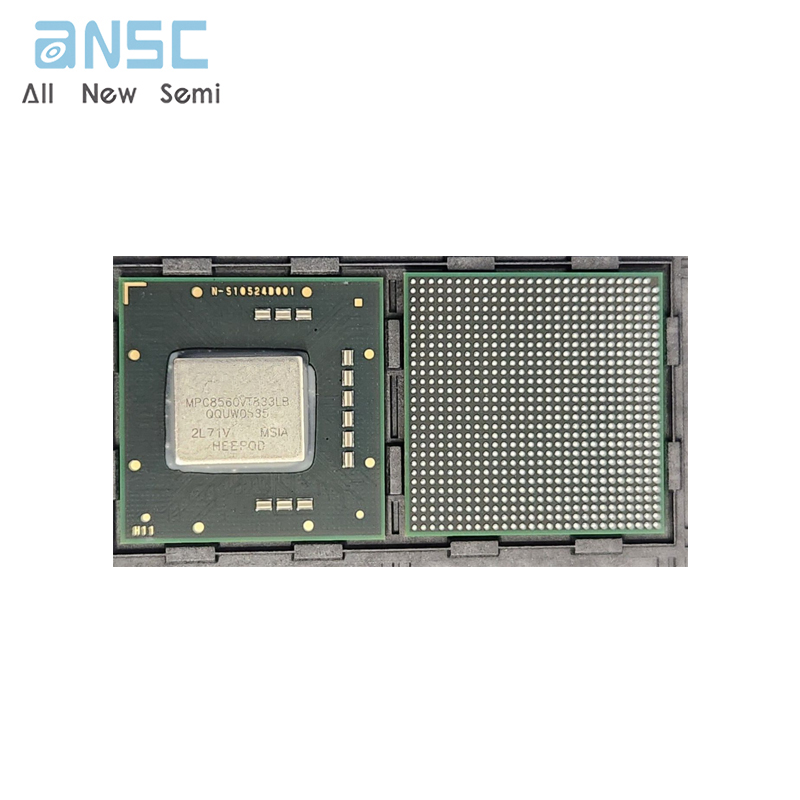

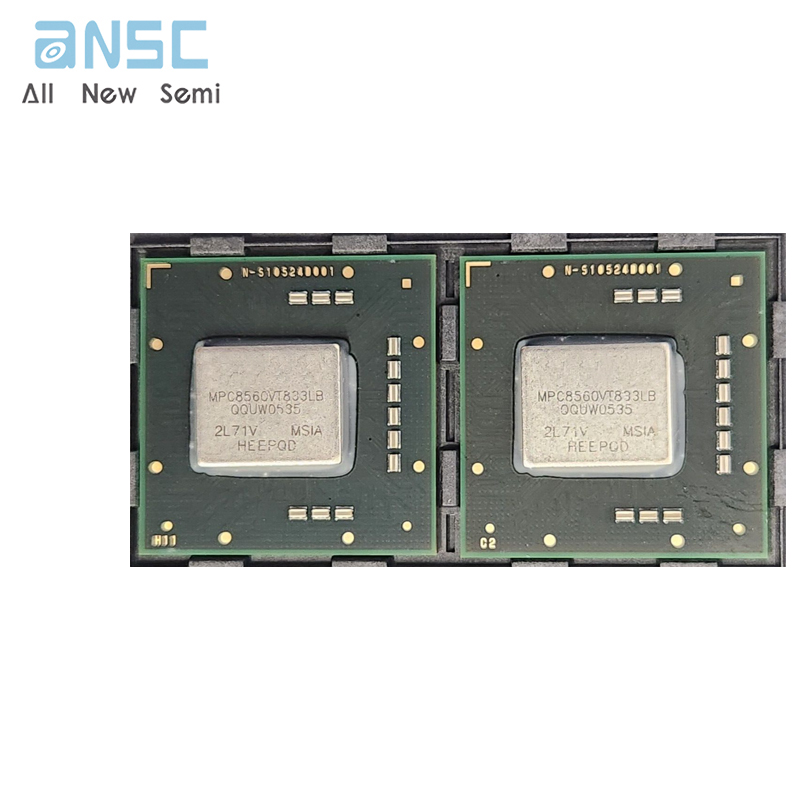

Product Photos

For more product information, please download the PDF
