E840-TTL(4G02-DNE) Modbus Wireless RF Module Transmitter Receiver Industrial Grade Radio Communication 4G LTE UART for M2M

Manufacturer

Original

Manufacturer Product Number

E840-TTL(4G02-DNE)

Description

E840-TTL(4G02-DNE) is developed for serial port devices and network servers to transmit data to each other through a network.

Package Condition

Bulk

Datasheet

E840-TTL(4G02-DNE)

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Specifications

Attribute	Attribute value
ANSM-Part#	ANSM-E840-TTL(4G02-DNE)
Characteristic Parameter	Description
Frequency	LTE-FDD：B1/B3/B7/B8/B20/B28A
	WCDMA：B1/B8
	GSM：B3/B8
LTE Characteristic	Support max. of 3GPP R8 non-CA Cat 4 FDD and TDD
	Support 1.4MHz~20MHz , Downstream support： MIMO
	LTE-FDD: Max downstream rate 150Mbps, Max upstream rate50Mbps
WCDMA characteristic	WCDMA: Max downstream rate 384Kbps， Max upstream rate 384Kbps
GSM characteristic	GPRS: Max downstream rate 107Kbps，Max upstream rate 85.6Kbps
GSM characteristic	EDGE: Max downstream rate 296Kbps，Max upstream rate 236.8Kbps
Network protocol characteristics	TCP/UDP/MQTT
Hardware characteristic	Description
Antenna	IPX
Data interface	UART
Baud rate	Support Max. 921600bps，default 115200bps
Transmitting power	Class 4 (33dBm±2dB) for GSM900
	Class 1 (30dBm±2dB) for DCS1800
	Class E2 (27dBm±3dB) for GSM900 8-PSK
	Class E2 (26dBm±3dB) for DCS1800 8-PSK
	Class 3 (24dBm+2/-1dB) for CDMA BC0
	Class 3 (24dBm+1/-3dB) for WCDMA bands
	Class 2 (24dBm+1/-3dB) for TD-SCDMA bands
	Class 3 (23dBm±2dB) for LTE-FDD bands
	Class 3 (23dBm±2dB) for LTE-TDD bands
Sensitivity	FDD B1: -101.5dBm (10M)
	FDD B3: -101.5dBm (10M)
	FDD B7: -99.5dBm (10M)
	FDD B8: -101dBm (10M)
	TDD B20: -102.5dBm (10M)
	TDD B28A: -102dBm (10M)
	WCDMA B1: -110dBm
	WCDMA B8: -110.5dBm
	GSM 3: -109dBm
	GSM 8: -109dBm
Consumption（Typical）	11uA@power off
	1.8mA @LTE sleep (PF=128)
	1.5mA @LTE sleep (PF=256)
	20mA @ idle
Bandwidth	1.4/3/5/10/15/20MHz
Operating temperature	-30℃- +70℃, extending to -40℃~+85℃
Operating voltage	DC 5V ~ 18V
Size	42×40×9.7 mm

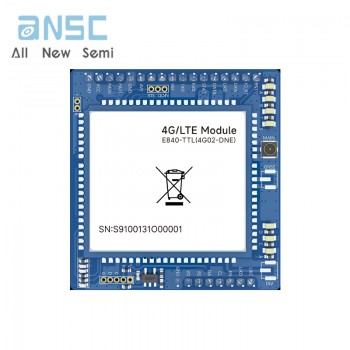

Actual product photos

E840-TTL(4G02-DNE)

Product Data Book：

For more product information, please download the PDF
