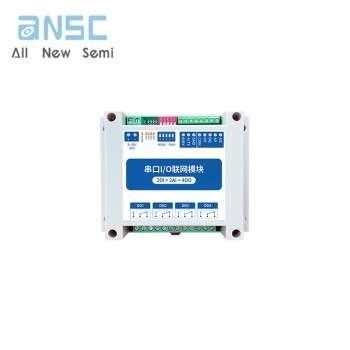

Hot selling original stock sale [2DI+2AI+4DO] MA01-AACX2240 2 sensor switching inputs (DI)

Product Descriptions

The MA01-AACX2240 is a support for the acquisition of 2 sensor switching inputs (Dl), 2 sensor analog inputs(Al), converted to serial port (RS485) data transfer to configuration software or PLC. The serial 1/0 networking module(also known as "Remote lO") for remote acquisition control function is realized by controlling the 4 relay switch output(DO) by sending instructions at the serial port.

Product Features

Support for modbus RTU protocols.

Support for all types of configuration software / PLC / touch screen;

RS485 Acquisition Control IO:

DC 8to28V power supply;

2 switch input DI(dry node);

2 analog input Al(0 to 20mA/4 to 20mA):

4 switch output DO(relay);,

Switch input(Dl)supports counting:

Switch input(Dl)supports rising, falling, level triggering;

Switch output(DO)supports level mode, pulse mode, follow mode.

Input acquisition port isolation protection,

Communication Baud Rate 1200to115200(default 9600),supports custom settings,

Support for lto247 substations,5-bit dial switch can be set 1to3l address code, greater than 31 can be set by sofware.
