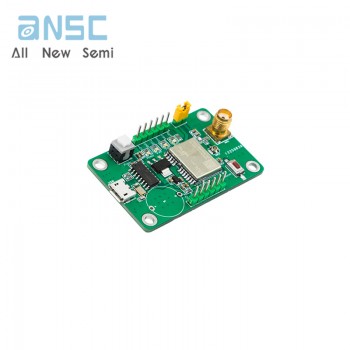

E108-GN01-TB Navigation Tracker GPS Developer Test Kit Multi-mode GPS Module Development Board Platform USB Interface

Product Descriptions

E108-GN01-TB is a GPS positioning test kit based on El08-GN0l, which can greatly reduce the user's development cyele and supports BDS / GPS / GLONASS / GALILEO / OZSS / SBAS.

Product Features

Support BDS / GPS / GLONASS / GALILEO / QZSS / $BAS multi-system joint positioning and single-system independent positioning,

D-GNSS differential positioning, A-GNSS assisted positioning, ephemeris prediction, DR integrated navigation application, the fastest data update rate of 10Hz.

32-bit application processor with a maximum frequency of 133MHz, supporting dynamic frequency adjustment,

Support PPS output,

Built-in reset controller,

Support UART SPI I2C, GPIO:

RTC: Support 32.768 KHz + 20 ppm crystal oscillator, 1 1V RTC clock output, support external signal wake-up;Output format: Support NMEA0183 V4.1 and previous versions, the maximum fixed update frequency can reach

10Hz;

High sensitivity: capture cold start -149dBm, hot start -162dBm, tracking -166dBm.

Ultra-low power consumption: capture 30mA, track 20mA

Product Applications

Vehicle positioning and navigation equipment;

Wearable devices, such as GPS trackers, ete .

UAV positioning, industrial computers, etc .

Industrial equipment that requires GNSS positioning or navigation.

Specifications

Actual product photos
