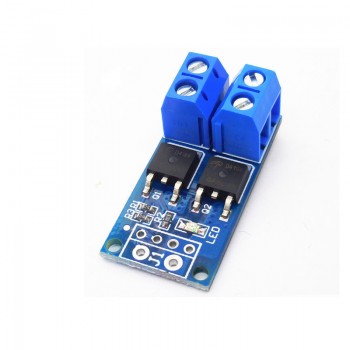

High power MOS triggered switch driver module PWM regulation electronic switch control board

Module highlights

1. Adopting original imported dual MOS parallel active output, with lower internal resistance, higher current, strong power, 15A at room temperature, 400W, meeting the needs of most devices:

2. Wide voltage, supporting PWM;

3. Easily control high-power devices.

Product Pin Definition

Product Parameters and Applications

1: Working voltage: DC 5V--36V;

2: Trigger signal source: digital high and low levels (DC3.3V-20V), can be connected to microcontroller IO ports, PLC interfaces, DC power supplies, etc., can be connected to PWM signals, signal frequency support 0-20KHZ.

3: Output capability: DC 5V-36V, continuous current 15A at room temperature, power 400W! Under auxiliary heat dissipation conditions, the maximum current can reach 30A.

4: Application: The output terminal can control high-power devices, motors, light bulbs, LED light strips, DC motors, micro water pumps, solenoid valves, etc. It can input PWM to control motor speed, light brightness, etc,

5: Service life: unlimited switching; Working temperature: -40-85 ℃; Size: 3.4 * 1.7 * 1.2cm
