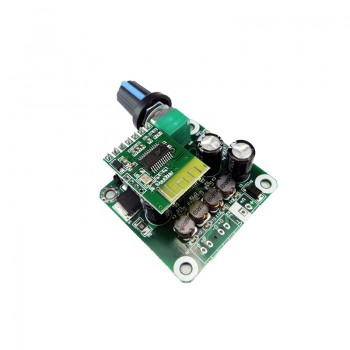

TPA3110 digital amplifier board, Class D amplifier board, Bluetooth 5.0 audio amplifier board, dual channel stereo 15W
Manufacturer
Manufacturer Product Number
TPA3110 15W
Description
TPA3110 digital amplifier board, Class D amplifier board
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Brief Introduction
This board adopts the typical circuit of TPA3110 and uses a single power supply with anti reverse connection. It is very convenient to use a universal adapter and switch power supply, or a common linear transformer with a rectifier filter board for power supply. Most of the resistance and capacitance devices use standardized surface mount technology, which is simple and stable. Adopting an integrated design with built-in Bluetooth audio reception and a built-in 5V voltage regulator circuit, it is easy to DIY Bluetooth speakers. The output power is 15W X2 (@ 16V), and this board can be connected to 8-ohm and 4-ohm speakers.
Product Parameter
| 产品名称:蓝牙数字功放板 Product Name: Bluetooth Digital Amplifier Board |
供电电压: 10-25V Supply voltage: 10-25V |
| 产品型号:011686 Product model: 011686 |
输出功率:2*15W(@16V或者以上) Output power: 2 * 15W (@ 16V or above) |
| 芯片类型:TDA3110 Chip type: TDA3110 |
输出阻抗:4-8Ω Output impedance: 4-8 Ω |
| 声道数:双声道 Number of channels: Dual channel |
电源电流: 推荐2A，或者以上 Power supply current: 2A or above is recommended |
| 蓝牙版本:5.0 Bluetooth version: 5.0 |
产品尺寸:长5lmm*宽39mm Product size: Length 5lmm * Width 39mm |
| 音频输入:支持蓝牙·板载接线 Audio input: Supports Bluetooth and onboard wiring |
产品重量: 20.2g Product weight: 20.2g |
Product Use
Product Detail Analysis
Product Attention
Note: When external audio input is required, the two pads of the "external audio switch" need to be short circuited.
