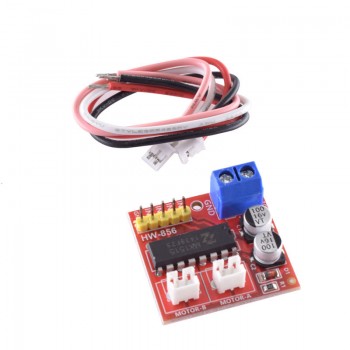

Forward and reverse PWM speed regulation 2.5A dual H-bridge stepper motor drive board MX1919 dual motor drive module
Manufacturer
Manufacturer Product Number
MX1919
Description
Forward and reverse PWM speed regulation 2.5A dual H-bridge stepper motor module
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Parameter
1. Driving capability: Two DC motors or one four wire stepper motor
2. Working voltage: DC2~10V;
3. Signal voltage: DC1.8~7V;
4. Maximum output current per channel: 2.5A;
5. Support PWM speed regulation, PWM frequency range 10KHZ-50KHZ
6. Static current: 0.1UA
Product Funtions
Logic Truth Table
| 直流电机 DC motor |
旋转方式 Rotation method |
IN1 | IN2 | IN3 | IN4 |
| MOTOR-A | 正转(调速） Forward rotation (speed regulation) |
1/PWM | 0 | ||
| 反转(调速) Reverse (speed regulation) |
0 | 1/PWM | |||
| 待机 Standby mode |
0 | 0 | |||
| 急停 Emergency stop |
1 | 1 | |||
| MOTOR-A | 正转(调速） Forward rotation (speed regulation) |
1/PWM | 0 | ||
| 反转(调速) Reverse (speed regulation) |
0 | 1/PWM | |||
| 待机 Standby mode |
0 | 0 | |||
| 急停 Emergency stop |
1 | 1 |
Note: "1" represents high level; '0' represents low level; PWM "stands for pulse width modulation wave, which adjusts the duty cycle to change the speed.
IN1, IN2 control DC motor A; IN3, IN4 control DC motor B; The two routes are completely independent.
The input terminal INx has anti common state conduction function, which is equivalent to a low-level input when suspended.
