MCU-MAG3110 three-axis digital Earth magnetic field geomagnetic sensor module MAG3110FCR

Product Description

MAG3110 is a geomagnetic conversion module for measuring magnetic fields. It outputs three-axis geomagnetic data based on the I2C interface and can be used to obtain compass information. One side of the board has an I2C pin header and the other side has an I2C female connector, which can be easily connected to the development system. It supports I2C cascading and can use multiple modules connected to the I2C bus at the same time through the pin header and female connector.

Product Features

Working voltage: 3.3V

Interface type: pin header or socket

Support I2C bus cascading (through the method of pin header and socket docking, multiple I2C modules can be used at the same time)

Special Tips

1. Please follow the wiring diagram and do not make a mistake.

2. This document only represents the product knowledge and parameters at the time of editing. If there are any changes in the future, we will not notify you separately.

3. Detect the magnetic field. If there is a magnet or metal close to the magnetic field, the value does not change. The chip may be damaged.

4. Note that the power supply voltage is 3.3V and cannot exceed it. If the board heats up and the power indicator light is unstable, the module may be damaged.

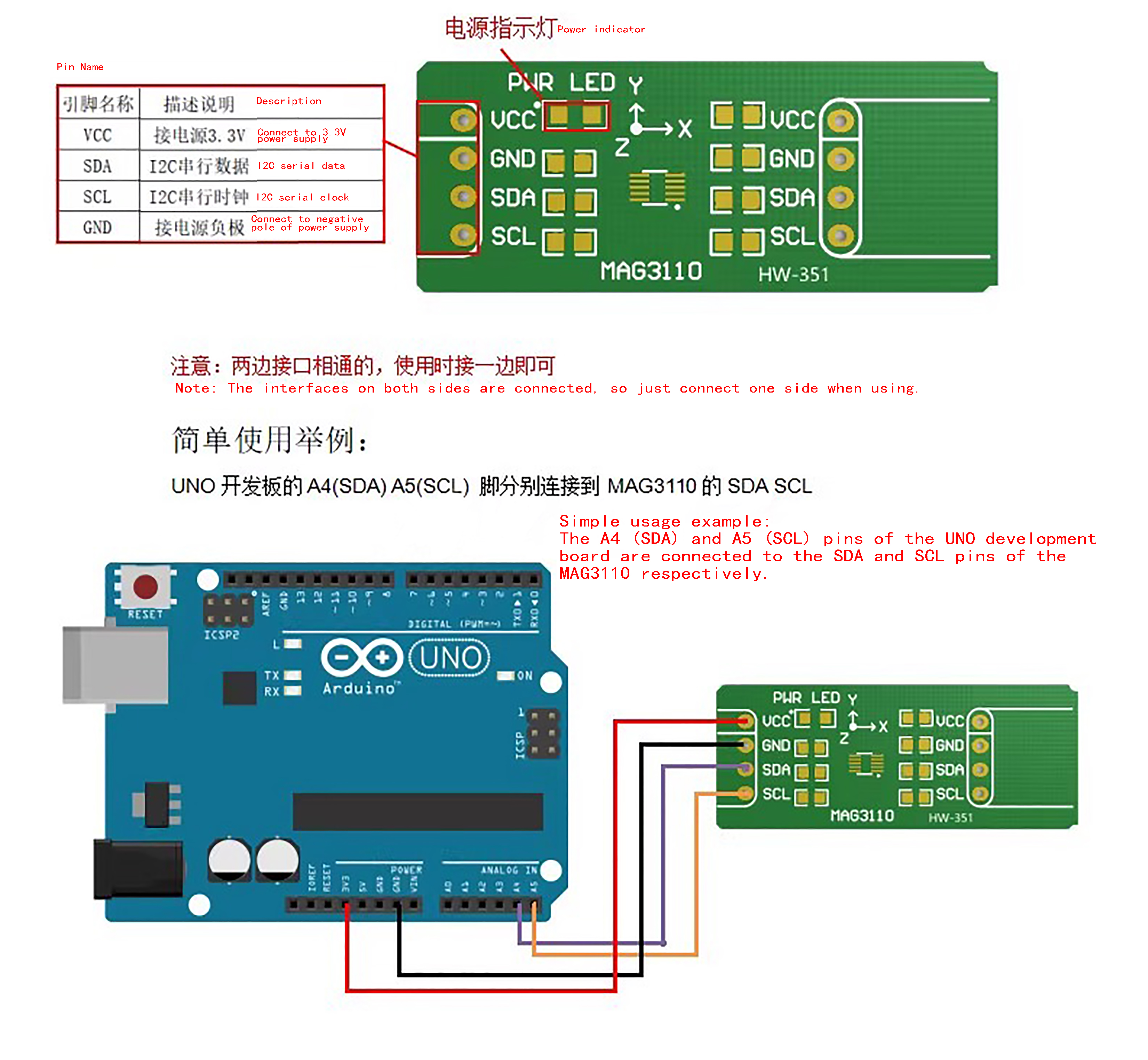

Product Function Diagram

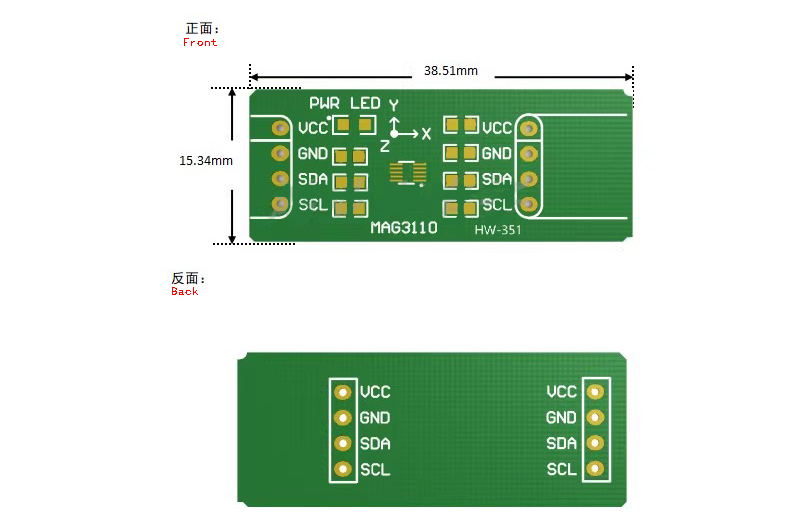

Specifications

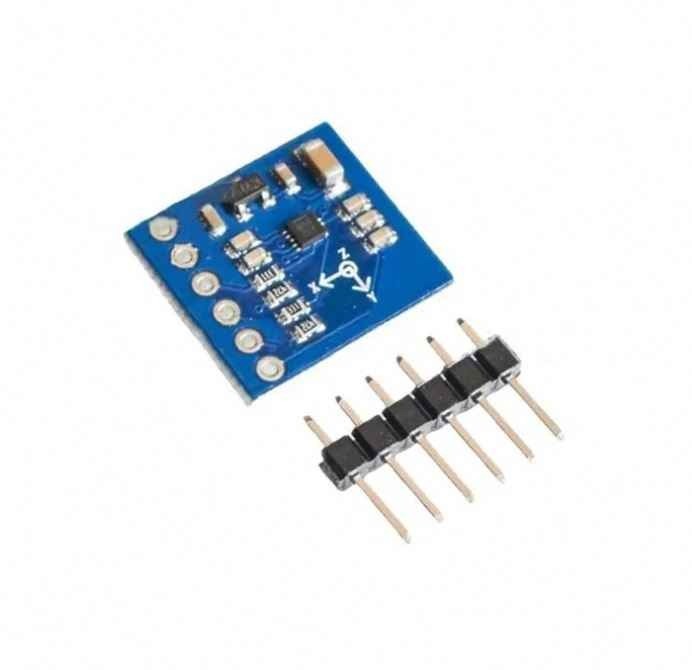

 Actual image of the product
