Module TDA2030A Audio amplifier module Power amplifier module Power amplifier board
Manufacturer
Manufacturer Product Number
TDA2030A
Description
Module TDA2030A Audio amplifier module Power amplifier module Power amplifier board
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description

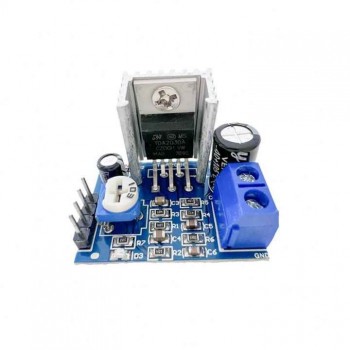

TDA2030A Audio Amplifier Module
1. Onboard TDA2030A audio amplifier chip
2. Mono 18W (RL = 4 ohm) amplifier circuit design
3. Onboard speaker connector
4. Onboard 10K adjustable resistor for volume adjustment
5. Onboard power indicator
6. The chip's main pins are exposed for direct audio signal input
7. Operating voltage: 6-12V
8. Board size: 31.6mm x 23.2mm
Pin Definition:
IN: Audio signal input
VCC: Positive power supply
OUT: Output
Product Photos
