Original CM200DY-24A Insulated Gate Bipolar Transistor, 200A I(C), 1200V V(BR)CES, N-Channel, MODULE-7
Manufacturer
Manufacturer Product Number
CM200DY-24A
Description
IGBT module CM200DY-24A
Package Condition
Bulk
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
| Type# | Description |
| Part# | CM200DY-24A |
| Part Status | Active |
| Manufacturer | / |
| Part Package | MODULE |
| Package Description | FLANGE MOUNT, R-XUFM-X7 |
| Pin Count | 7 |
| Samacsys Manufacturer | / |
| Case Connection | ISOLATED |
| Collector Current-Max (IC) | 200 A |
| Collector-Emitter Voltage-Max | 1200 V |
| Configuration | SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE |
| Gate-Emitter Voltage-Max | 20 V |
| JESD-30 Code | R-XUFM-X7 |
| Number of Elements | 2 |
| Number of Terminals | 7 |
| Operating Temperature-Max | 150 °C |
| Package Body Material | UNSPECIFIED |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Polarity/Channel Type | N-CHANNEL |
| Power Dissipation-Max (Abs) | 1340 W |
| Qualification Status | Not Qualified |
| Surface Mount | NO |
| Terminal Form | UNSPECIFIED |
| Terminal Position | UPPER |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Transistor Application | POWER CONTROL |
| Transistor Element Material | SILICON |
| VCEsat-Max | 3 V |

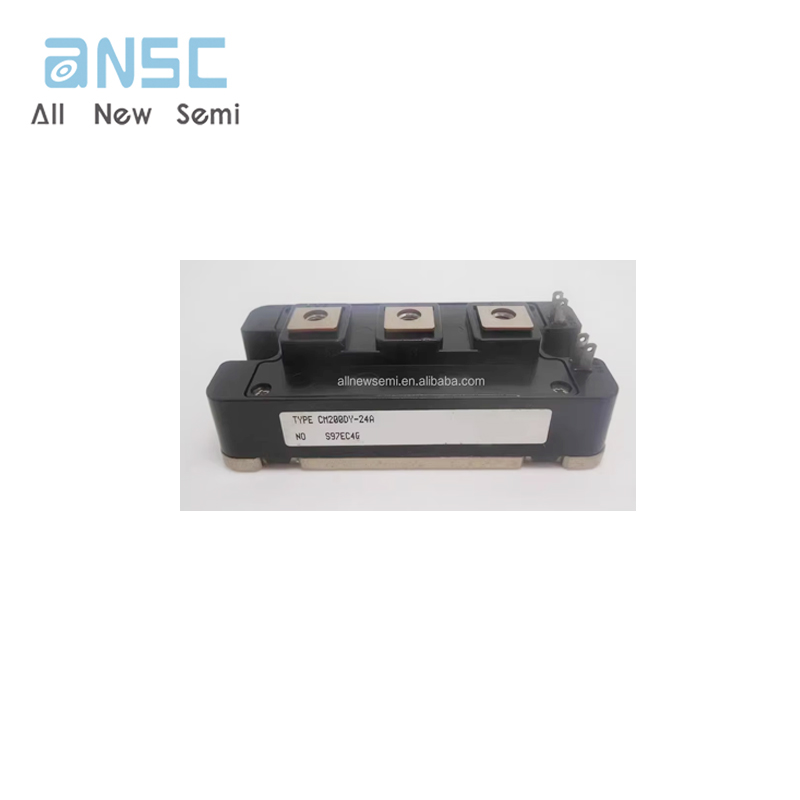

Actual image of the product
