L298P Motor Shield Stepper DC Motor Driver Module Driver Expansion Board

Product Parameters

1. Input voltage VDD: 5V for the logic section

2. Input voltage of the driving part VS: VIN input 6.5-12V, PWRIN input 4.8-35V

3. Operating current ISS for the logic section:< 36MA

4. The working current of the driving part is 10:< 2A

5. Maximum dissipated power: 25W (T=75 ° C)

6. Control signal input level: High level 2.3V<VIN<5V, Low level -0.3V<VIN<1.5V

7. Working temperature:- 25+130°C

8. Hardware interface: 5.0mm spacing terminal posts with fixed buckles, and can be connected to control signals through pin headers

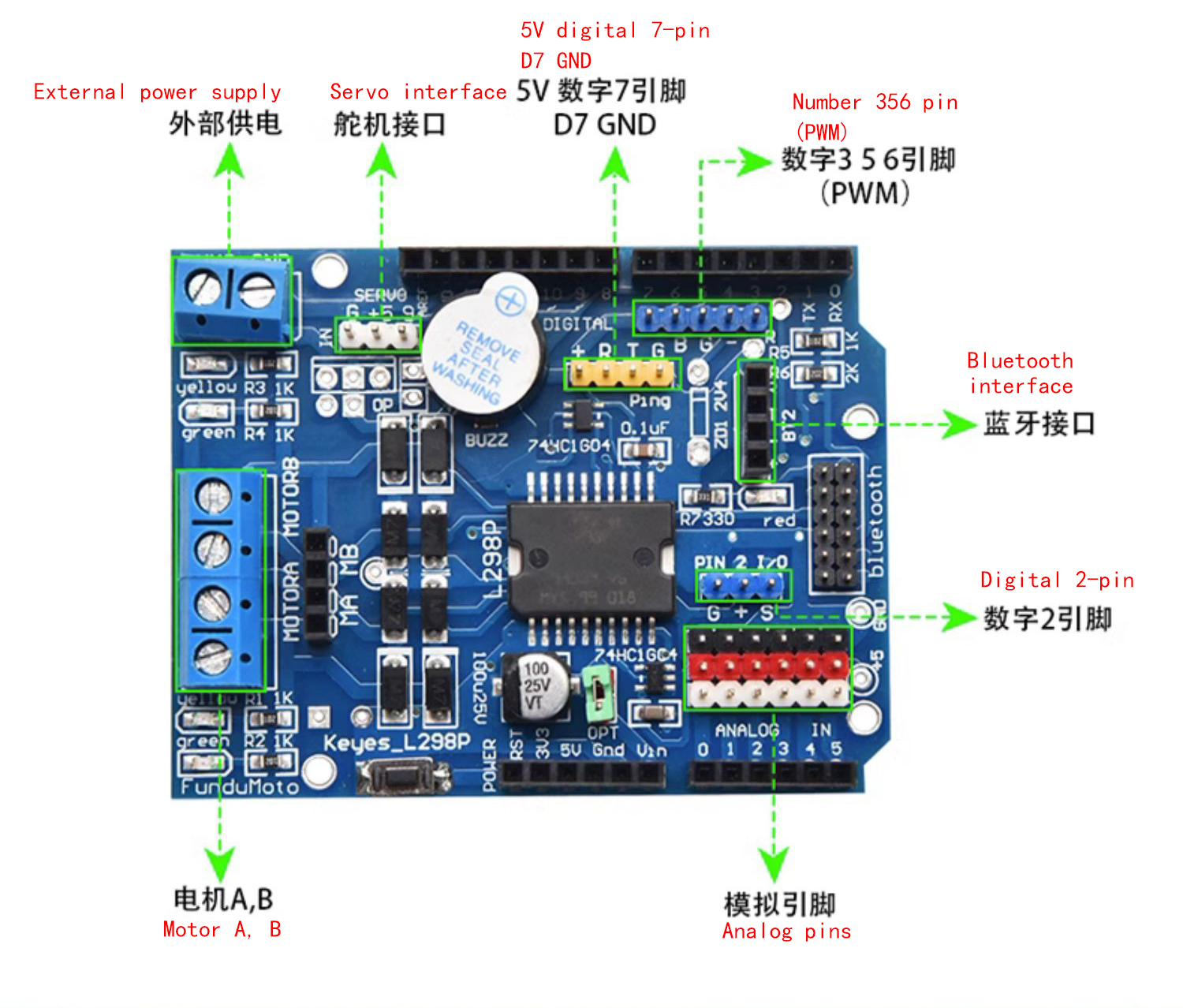

9. Drive form: Dual high-power H-bridge drive pin occupation: D4~D7 direct drive electric

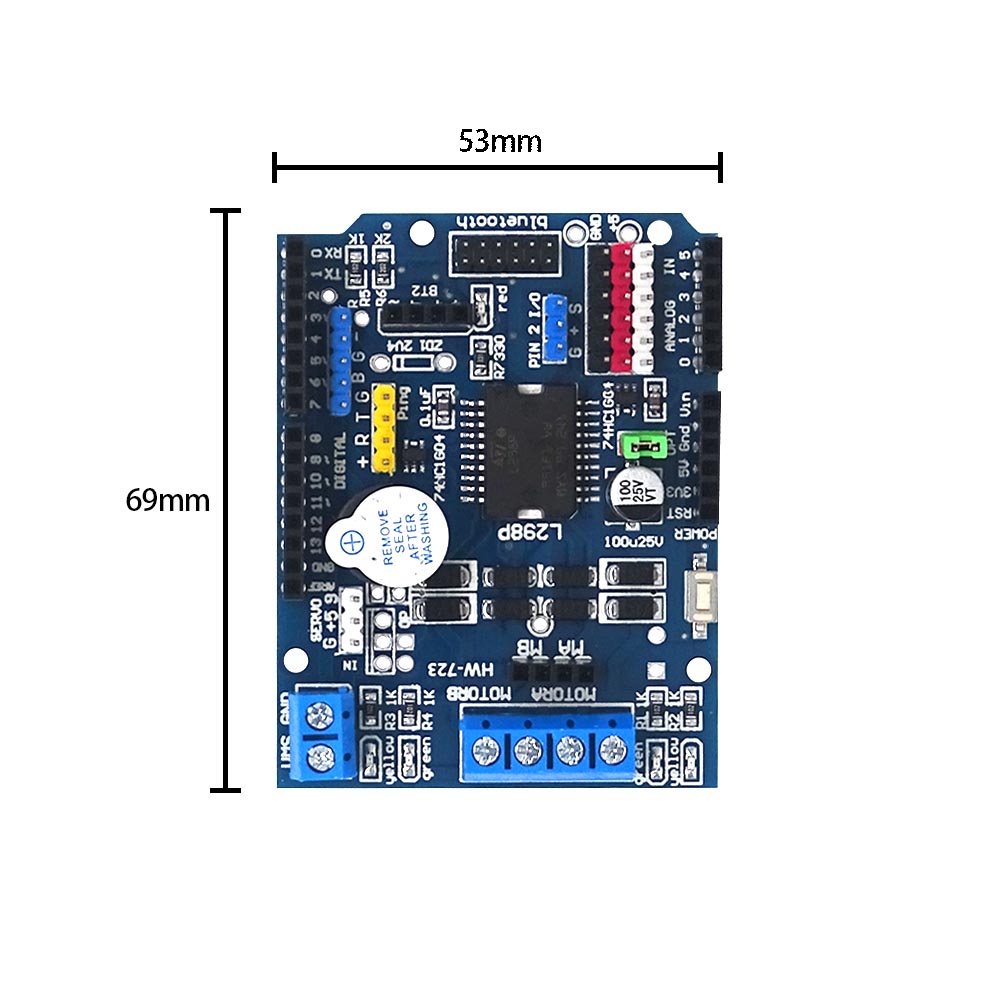

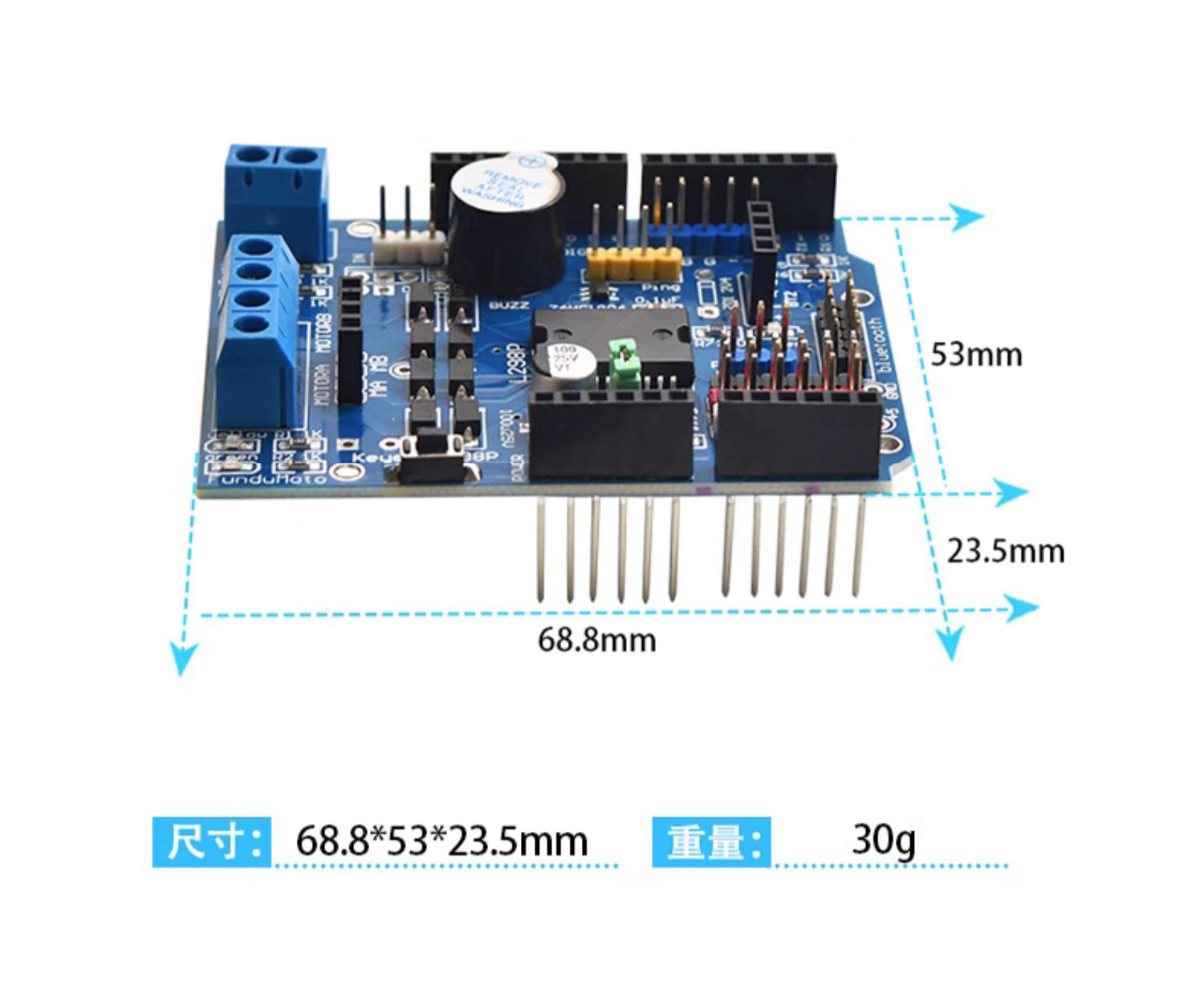

10. Supports PWM/PLL mode motor speed control size: 68 * 53MM

Product Features

2. Input voltage of the driving part VS: VIN input 6.5-12V, PWRIN input 4.8-35V

3. Operating current ISS for the logic section:< 36MA

4. The working current of the driving part is 10:< 2A

5. Maximum dissipated power: 25W (T=75 ° C)

6. Control signal input level: High level 2.3V<VIN<5V, Low level -0.3V<VIN<1.5V

7. Working temperature:- 25+130°C

8. Hardware interface: 5.0mm spacing terminal posts with fixed buckles, and can be connected to control signals through pin headers

9. Drive form: Dual high-power H-bridge drive pin occupation: D4~D7 direct drive electric

10. Supports PWM/PLL mode motor speed control size: 68 * 53MM
