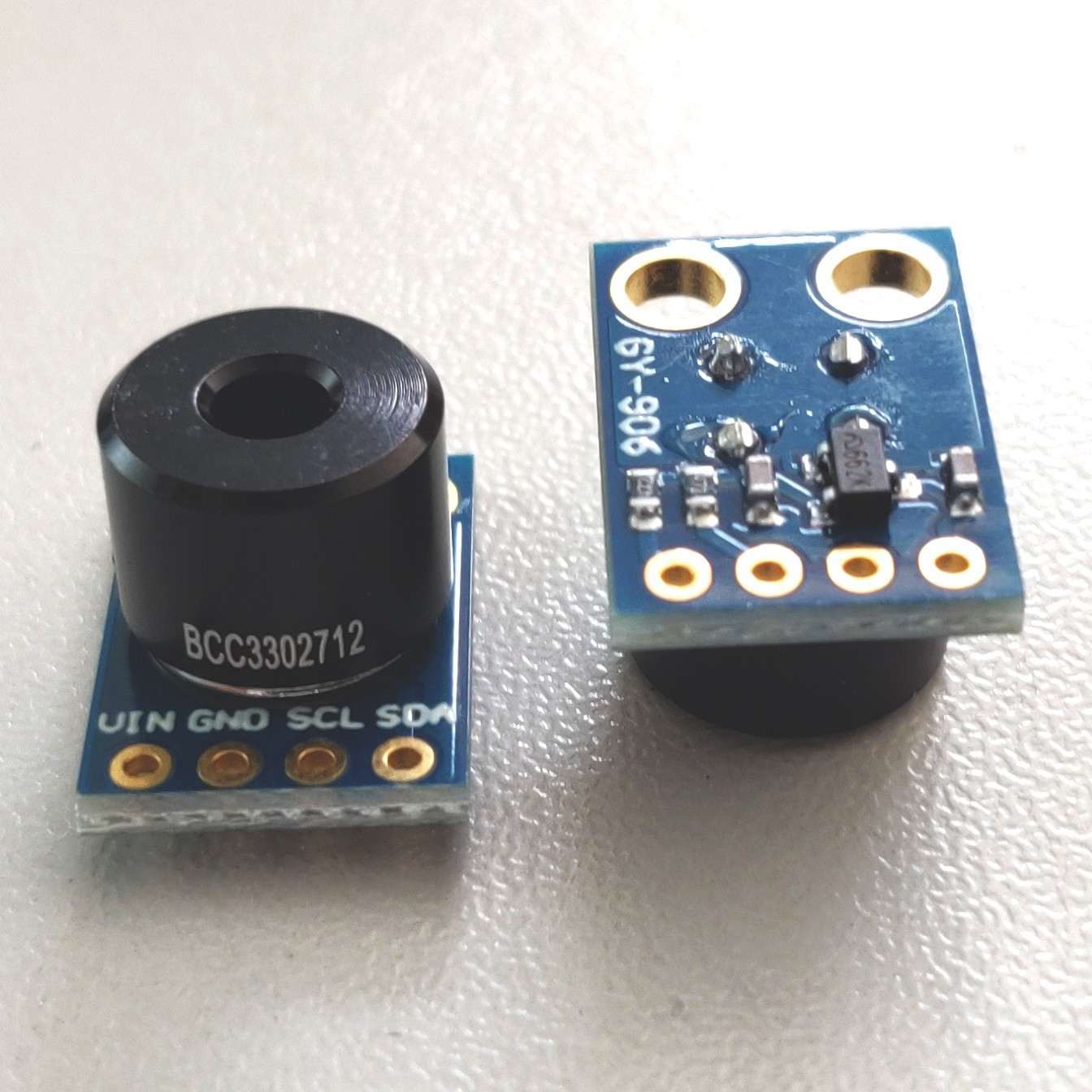

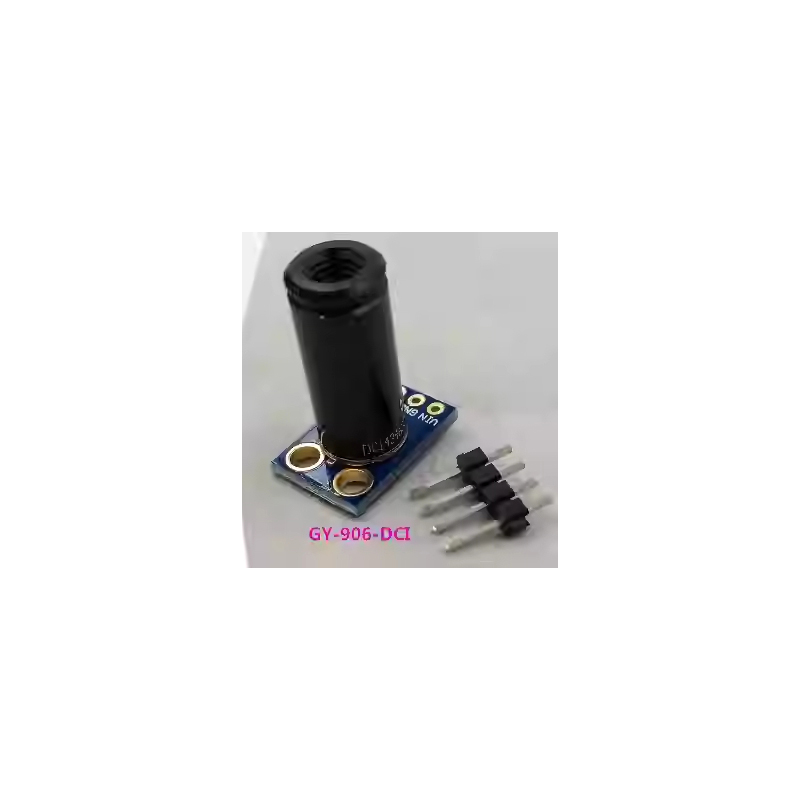

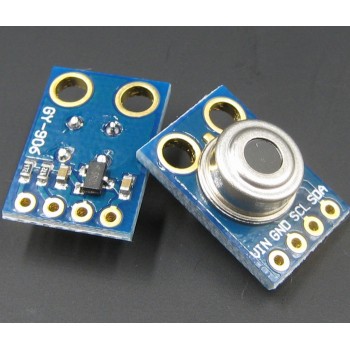

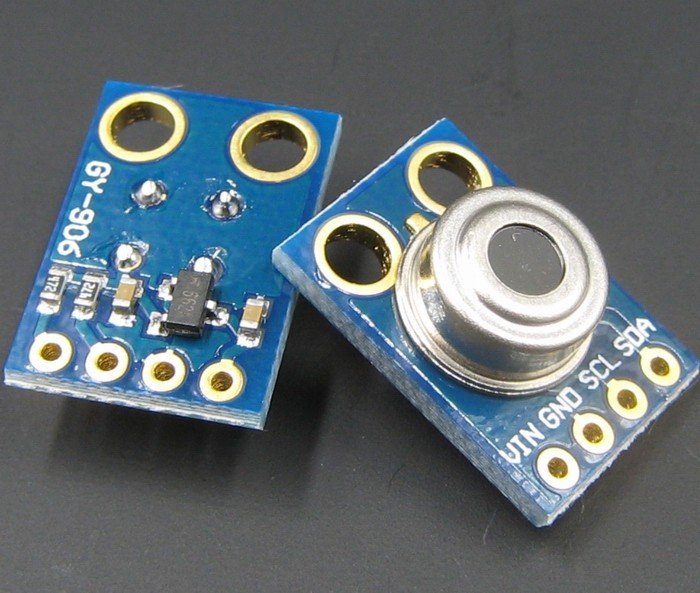

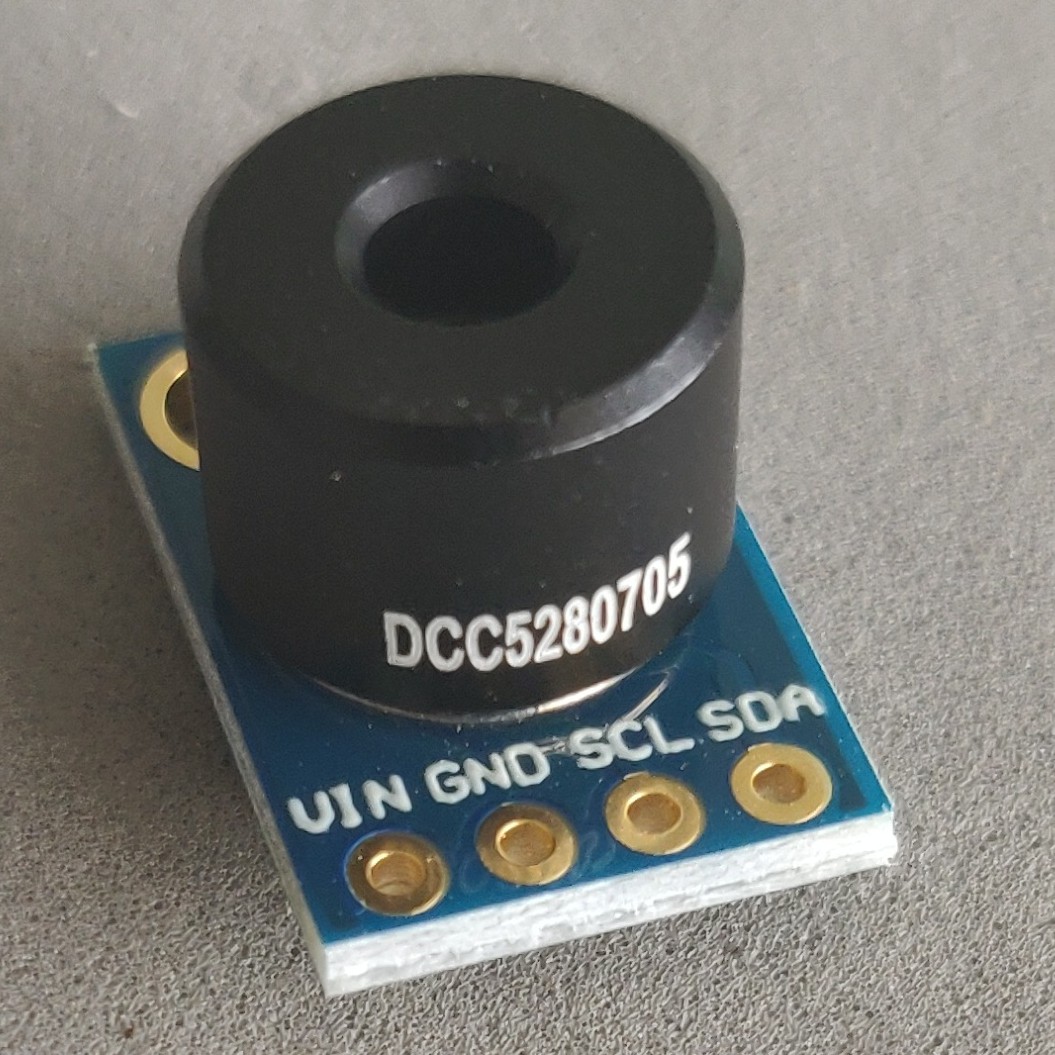

GY-906 MLX90614 non-contact infrared temperature sensor module iic interface

Product Descriptions

Up for sale is a MELEXIS MLX90614ESF-BAA-000-TU-ND non-contact infrared thermometer for use with Arduino, or any microcontroller that can communicate with it through it's I2C interface.  This sensor comes with a breakout board with all of the components needed for operation and two types of pins.  They are unsoldered.  Please indicate if you would like one or the other soldered.  There are two solder jumpers for the I2C interface that may or may not need to be soldered depending on your application, but will not for most uses.

Product Features

Small size, low cost

Mounted on a breakout board with two types of pins

10k Pull up resistors for the I2C interface with optional solder jumpers

Easy to integrate

Factory calibrated in wide temperature range:

-40…+125°C for sensor temperature and

-70…+380°C for object temperature.

High accuracy of 0.5°C over wide temperaturerange (0…+50°C for both Ta and To) High (medical) accuracy calibration

Measurement resolution of 0.02°C

Single and dual zone versions

SMBus compatible digital interface

Customizable PWM output for continuousreading

Simple adaptation for 8…16V applications

Sleep mode for reduced power consumption

Different package options for applications andmeasurements versatility

Automotive grade

Product Applications

High precision non-contact temperaturemeasurements

Thermal Comfort sensor for Mobile AirConditioning control system

Temperature sensing element for residential,commercial and industrial building airconditioning Windshield defogging

Automotive blind angle detection

Industrial temperature control of moving parts

Temperature control in printers and copiers

Home appliances with temperature control

Healthcare

Livestock monitoring

Movement detection

Multiple zone temperature control – up to 127sensors can be read via common 2 wires

Thermal relay / alert

Body temperature measurement
