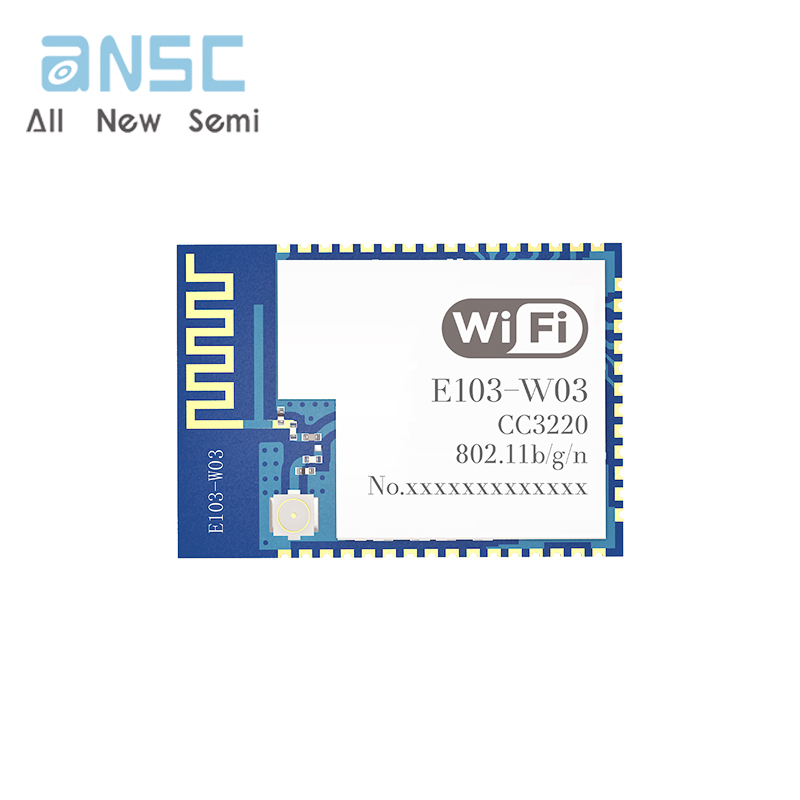

Hot selling Original stock sale E103-W03 ultra-low power serial port to Wi-Fi module

Product Descriptions

E103-W03 is an ultra-low power serial port to Wi-Fi module, SMD small-volume package, PCB antenna, working in the 2.4~2.484GHz frequency band. The module can use the serial port to send and receive data, lowering the threshold of wireless applications.

The E103-W03 module is developed by Chengdu Ebyte Electronic Technology Co., Ltd. based on TI's CC3220R chip. The module integrates the transparent transmission function, which can be used out of the box and supports the serial port AT command set. Users can use the network access function through the serial port. It is widely used in wearable devices, home automation, home security, personal health care, smart home appliances, accessories and remote controls, automotive, lighting, industrial Internet and other fields.

E103-W03 module supports standard IEEE802.11b/g/n protocol and complete TCP/IP protocol stack, supports STA/AP network role, supports multiple network working modes, supports SmartConfig, serial port transparent transmission, power-on transparent transmission and other functions , after a simple configuration, the network access function can be realized very conveniently, minimizing the developer's work and project development time.

Product Features

 Support IEEE802.11 b/g/n standard;

 Support AP, STA, WIFI Direct 3 working modes

 Support WEP/WPA/WPA2 multiple WIFI security authentication methods;

​ Support TCP/UDP/HTTP/MQTT multiple network communication protocols;

 Support TSL/SSL secure transmission mode;

 Support up to 4 Socket connections;

 AP access point supports 4-way STA device connection;

 Support mDNS, DNS-SD, DHCP network service package;

 Support WEB page parameter configuration;

 Support NTP network time acquisition (under the premise of Internet access);

 Support disconnection automatic reconnection;

 Support high-speed transmission, the highest support serial port 3M baud rate transmission;

 Support multiple power consumption mode switching;

 Support WIFI idle connection (LDPS);

 Support MQTT network protocol (Alibaba Cloud, Baidu Cloud, OneNet)

 Support WebSocket connection;

 Support HTTP Client

 Support TCP SERVER, TCP CLIENT, UDP communication mode;

 Support custom registration package, custom heartbeat package function;

 Support socket distribution protocol;

 AT command configuration;

 Support remote command configuration;

 Support Smartconfig fast distribution network;

 Support transparent multi-channel protocol transmission and broadcast transmission;

 Support pins to restore default parameters

 Support modebus protocol conversion (RTU and TCP)

 Support static IPv4 address allocation

 Support scanning nearby AP information

Specifications
