Selling well GDEY0213B74 2.13-inch fast brush local brush electronic paper eink ink screen low-power FPC-A002 GDEY0213B74
Manufacturer Product Number
GDEY0213B74
Description
2.13-inch fast brush partial brush electronic paper ink screen
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Specification
| 产品型号 Product Model |
GDEY0213B74 |
| 尺寸 Size |
2.13寸 2.13 inches |
| IC | SSD1680Z |
| 类型 Type |
图形点阵 Graphic dot matrix |
| 分辨率 Resolution |
250x122 |
| 外形尺寸(mm) External dimensions (mm) |
29.2x59.2x1.0 |
| 视域尺寸(mm) Field of view size (mm) |
23.7046x48.55 |
| 点间距(mm) Dot pitch (mm) |
0.1943x0.1942 |
| 工作温度 Operating temperature |
0℃~50℃ |
| 储存温度 Storage temperature |
-25℃~70℃ |
| 连接器 Connector |
24 Pin FPC |
| 最大灰度 Maximum grayscale |
4 |
| 颜色 Color |
黑白 Black and white |
| 刷新功耗(mW) Refresh power consumption (mW) |
10.5 |
| 待机功耗(mW) Standby power consumption (mW) |
0.003 |
| 全刷时间(s) Full brush time (s) |
3 |
| 快刷时间(s) Fast flashing time (s) |
1.5 |
| 局刷时间(s) Bureau flashing time (s) |
0.3 |
| 接口 interface |
SPI |

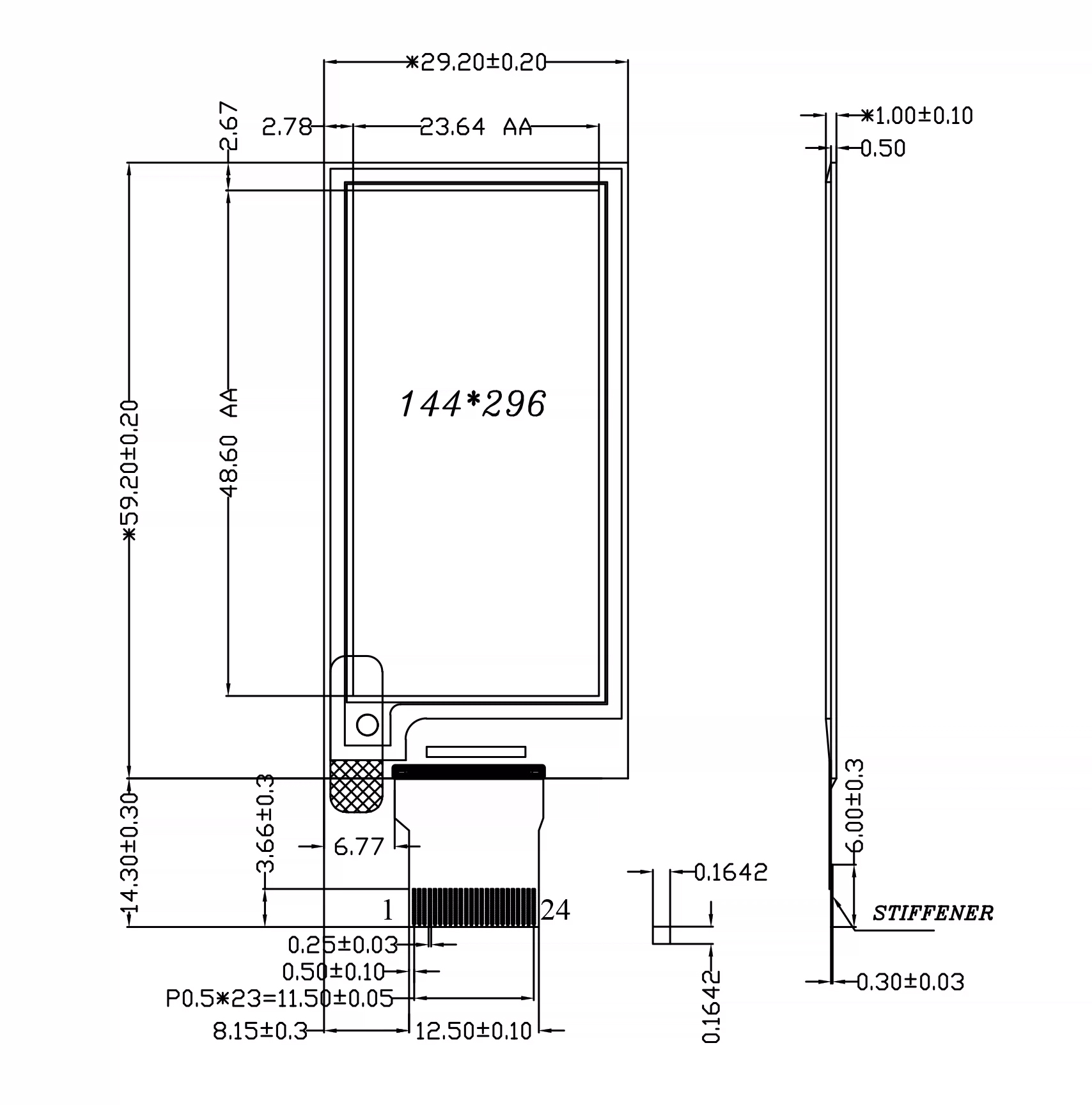

Product Size

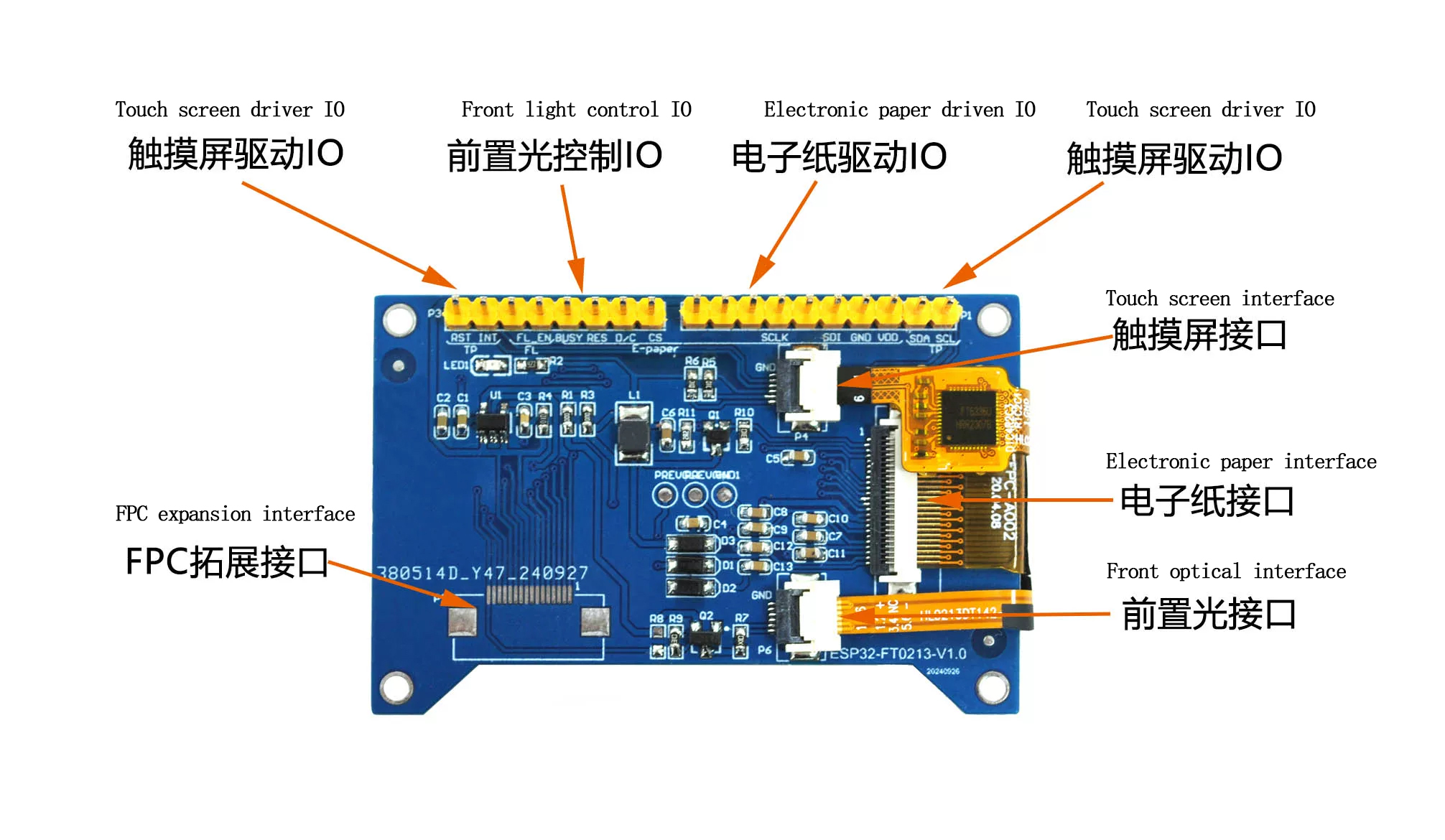

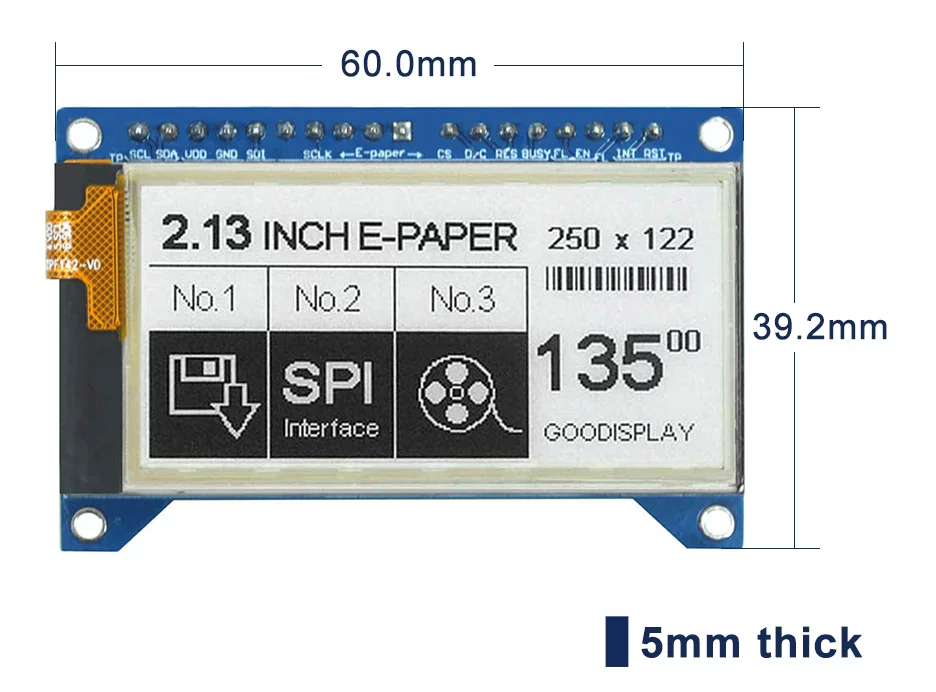

Front light touch module (ESP32-FT0213B74)

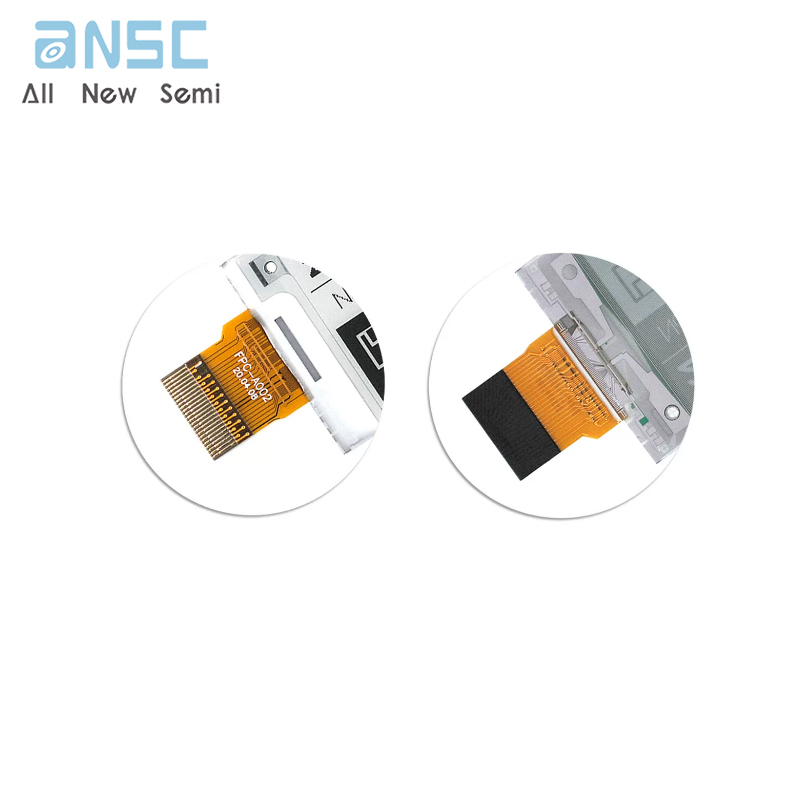

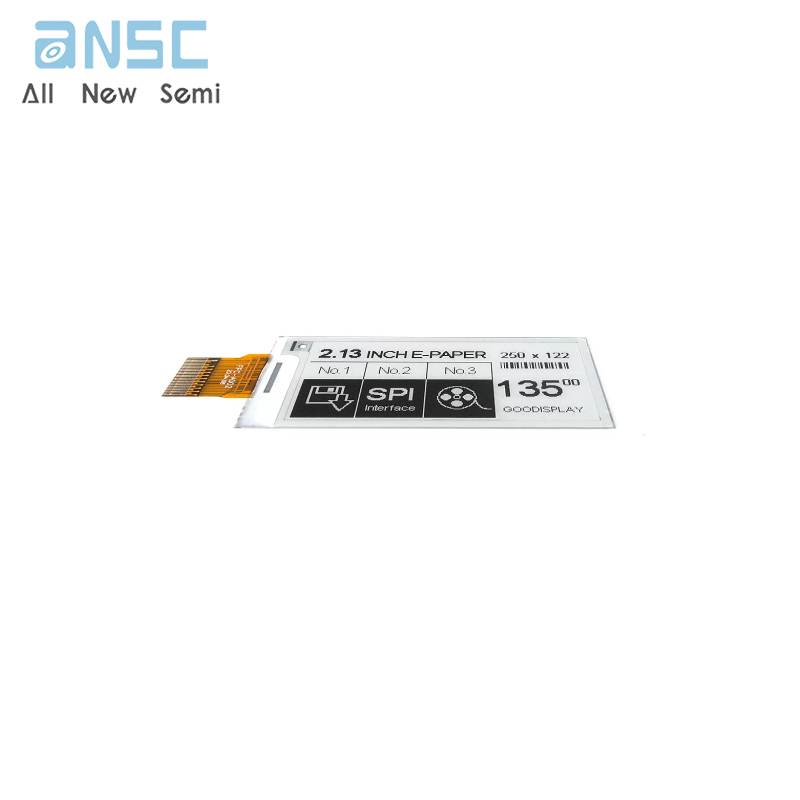

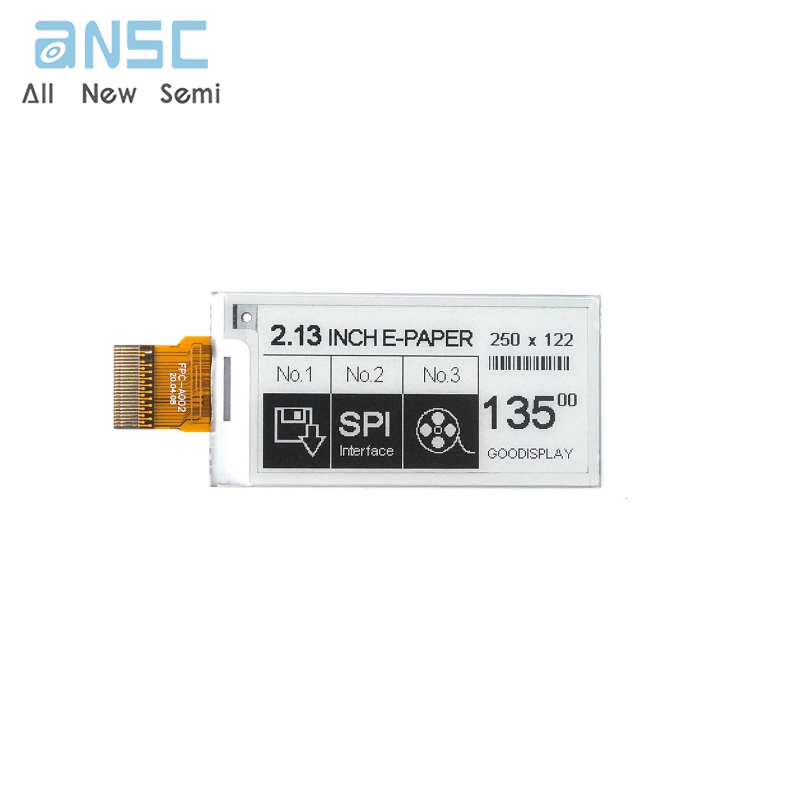

Product Photos
For more product information, please download the PDF
