Hot-selling and scarce SKY13314-374LF 0.1-6.0 GHz GaAs SPDT Switch QFN spot stock
Manufacturer Product Number
SKY13314-374LF
Description
SKY13314-374LF 0.1-6.0 GHz GaAs SPDT Switch QFN spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The SKY13314-374LF is a pHEMT GaAs I/C antenna switch. Switching between the antenna and TX or RX ports is accomplished with two control voltages. The low-loss, high isolation, high linearity, small size and low cost make this switch ideal for all dual-band WLAN systems that operate at 2.4 to 2.5 GHz and 4.9 to 5.9 GHz.
The switch is manufactured in a compact, 1.5 x 1.5 mm, 6-pin exposed pad plastic Micro Leadframe Package Dual (MLPD) package.
Product Features
• Positive low voltage control: 0 and 3.3 V
• Low insertion loss: 0.45 dB @ 2.5 GHz and 0.60 dB @ 6.0 GHz
• Excellent linearity performance: P1dB = +31 dBm
• Advanced pHEMT process
• Ultra-thin, miniature MLPD (6-pin, 1.5 x 1.5 x 0.45 mm) package (MSL1, 260 °C per JEDEC J-STD-020)
Product Applications
• Dual-band WLAN systems
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SKY13314-374LF |
| Category | RF and Wireless |
| RF Switches | |
| Manufacturer | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Last Time Buy |
| RF Type | WLAN |
| Topology | Reflective |
| Circuit | SPDT |
| Frequency Range | 100MHz ~ 6GHz |
| Isolation | 21dB |
| Insertion Loss | 0.6dB |
| Test Frequency | 6GHz |
| P1dB | 31dBm |
| IIP3 | 47dBm |
| Impedance | 50Ohm |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-XFDFN Exposed Pad |
| Supplier Device Package | 6-MLPD (1.5x1.5) |
| Base Product Number | SKY13314 |

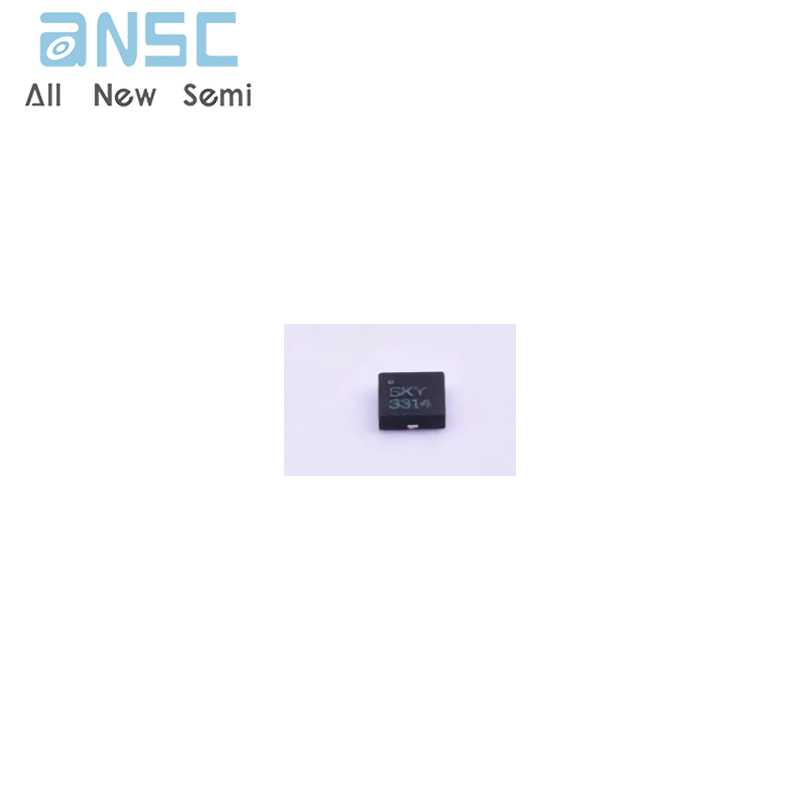

Product Photos
For more product information, please download the PDF
