Hot-selling and scarce MP2674EG-LF-Z Li-Ion Battery Charger Protection Circuit QFN

Product Descriptions

The MP2674 is a high-performance single cell Li-Ion/Li-Polymer battery charger protection circuit. By integrating high voltage input protection into the IC, the MP2674 can tolerate an input surge up to +30V.

The device features input over voltage protection (OVP), battery over voltage protection (BOVP) and over charge current protection (OCP). The device also provides fault indications to the system when any of the protection events happens.

For guaranteed safe operation, the MP2674 monitors its own internal temperature and turns off the MOSFET bridging VIN and OUT when the die temperature exceeds 150o C.

The MP2674 is available in an 8-pin 2mmx2mm QFN package.

Product Features

• Input Surge up to 30V

• Input Over voltage protection in 1µs.

• Proprietary Battery Over-Voltage Protection

• Programmable Charge Current Protection Limit Value.

• Temperature Monitoring and Protection

• Fault Indication

• 2mmx2mm QFN Package

Product Applications

• Cell Phones

• MP3 Players

• Smart Phones

• PDA

• Digital Cameras

• Desktop Chargers

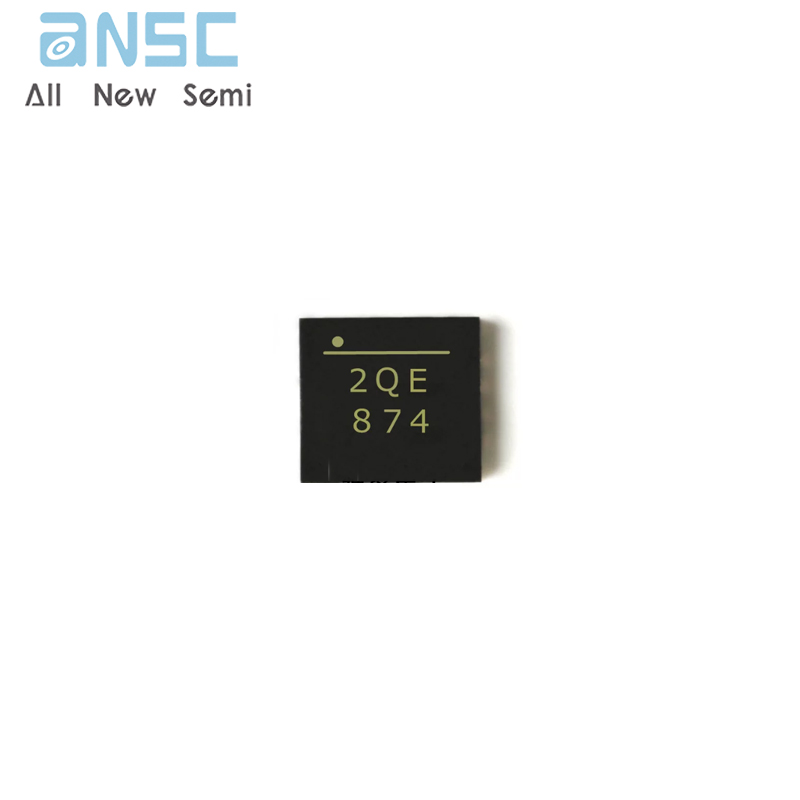

Product Photos

For more product information, please download the PDF
