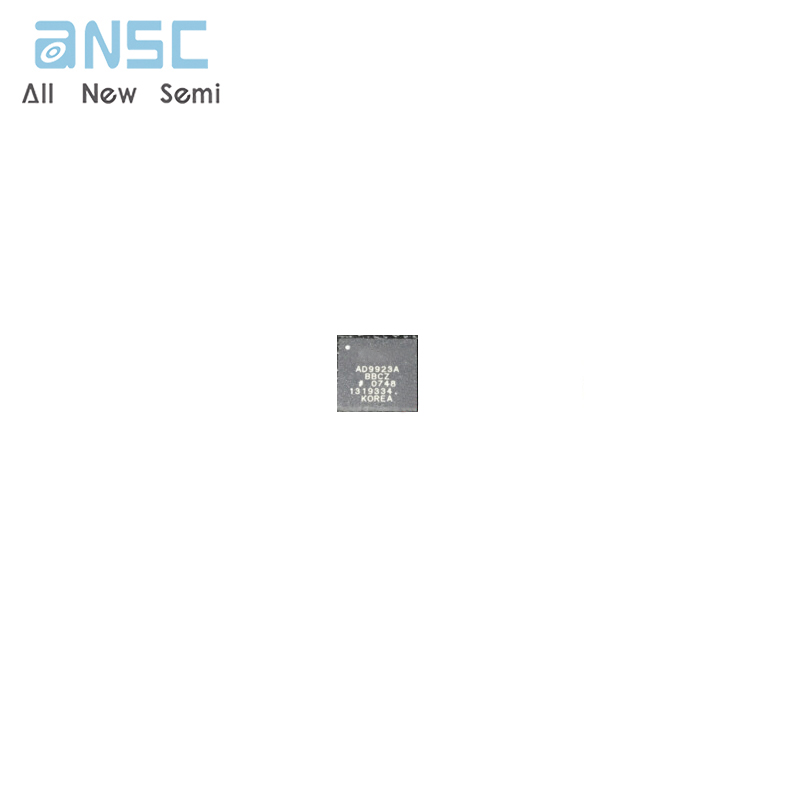

Hot-selling and scarce AD9923ABBCZ CCD Signal Processor with V-Driver and Precision Timing™ Generator BGA spot stock

Product Descriptions

​

The AD9923A is a complete 36 MHz front-end solution for digital still cameras and other CCD imaging applications. Similar to the AD9923 product, the AD9923A includes the analog front end (AFE), a fully programmable timing generator(TG), and a 15-channel vertical driver (V-driver). A Precision Timing core allows adjustment of high speed clocks with approximately 600 ps resolution at 36 MHz operation.

The on-chip V-driver supports up to 15 channels for use with5-field, 10-phase CCDs.

The analog front end includes black level clamping, CDS, VGA, and a 12-bit ADC. The timing generator and V-driver provide all the necessary CCD clocks: RG, H-clocks,vertical clocks, sensor gate pulses, substrate clock, and substrate bias control. The internal registers are programmed using a 3-wire serial interface.

Packaged in an 8 mm × 8 mm CSP_BGA, the AD9923A is specified over an operating temperature range of −25°C to +85°C.

Product Features

Integrated 15-channel V-driver

12-bit, 36 MHz analog-to-digital converter (ADC)

Similar register map to the AD9923

5-field, 10-phase vertical clock support

Complete on-chip timing generator

Precision Timing core with <600 ps resolution

Correlated double sampler (CDS)

6 dB to 42 dB 10-bit variable gain amplifier (VGA)

Black level clamp with variable level control

On-chip 3 V horizontal and RG drivers

2-phase and 4-phase H-clock modes

Electronic and mechanical shutter support

On-chip driver for external crystal

On-chip sync generator with external sync input

8 mm × 8 mm CSP_BGA package with 0.65 mm pitch

Product Applications

Digital still cameras

Product Specifications

Product Photos

For more product information, please download the PDF
